080G0166

Part Number: 080G0166
080G0166
Manufacturer
Danfoss
Part number
080G0166
Category

Product Information

Extended Description

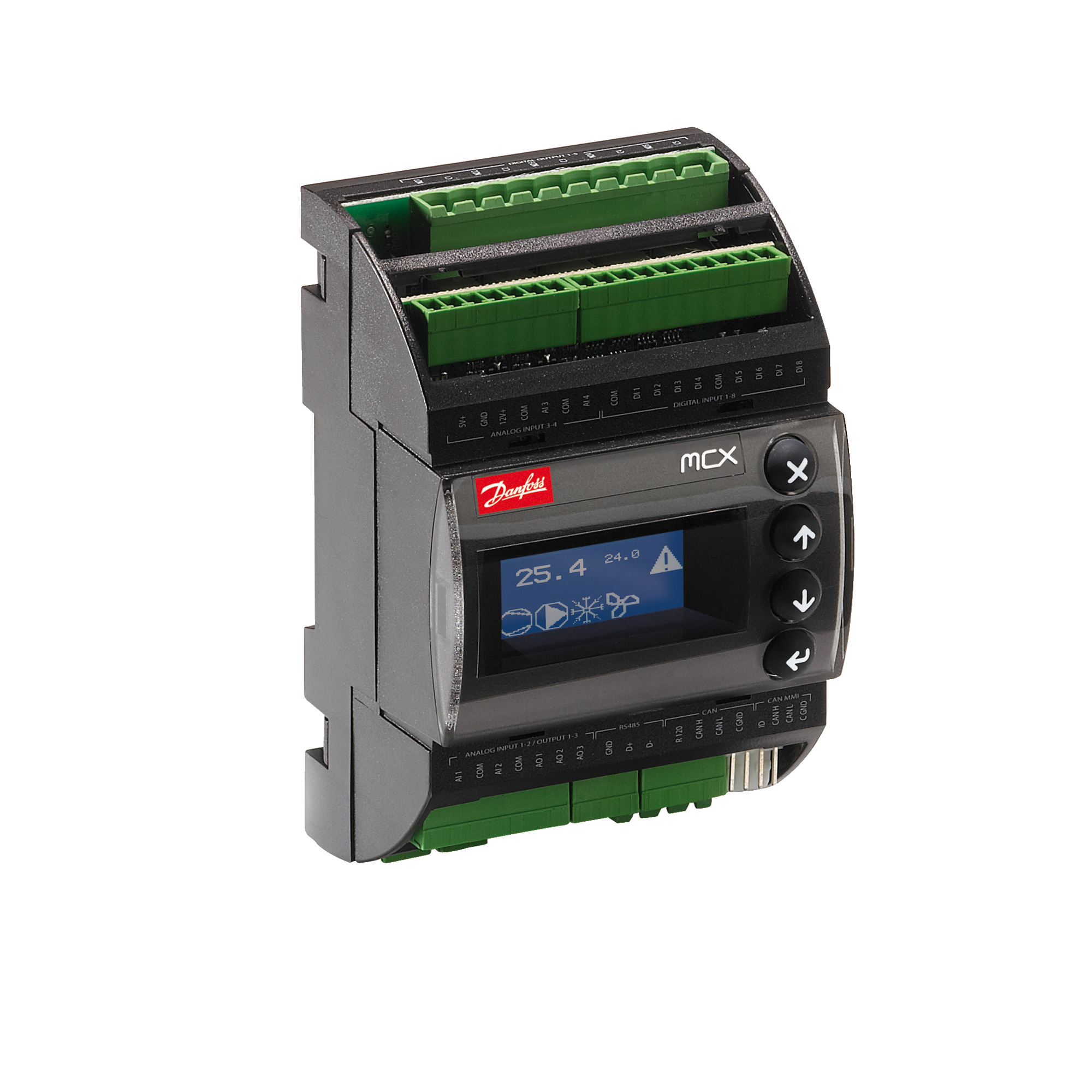

080G0166 Danfoss: Function: Programmable Controller, Supply voltage [V] AC: 24, Communication type: CANBUS, Packing format: Industrial pack, Quantity per packing format: 32
Gross weight
0.238 Kilogram
Net weight
0.23 Kilogram
Volume
1.252 Liter
EAN
5702423284832
Analog inputs (AI) [pc]
4 pc
Analog outputs (AO) [pc]
3 pc
Approval
CE,CMIM,EAC,GOST R,UL
Buzzer
Yes
CE evaluated
Yes
China RoHS compliance
Yes
Communication type
CANBUS
Connector kit Code No.
080G0179
Connector kit included
No
Digital inputs (DI) [pc]
8 pc
Digital outputs (DO) [pc]
6 pc
Display type
LCD
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP40
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Programmable Controller
Identical product
080G0111
In scope of WEEE
Yes
Mounting method
DIN rail
Packing format
Industrial pack
PFAS content [Yes/No]
No
Power consumption [W]
6 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description
Program. controller, 6 relays
Quantity per packing format
32 pc
REACH Candidate List substances
No
Real time clock
No
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
MCX06D
Type designation
MCX06D
UK RoHS compliance
Yes
UL evaluated
Yes
MCX programmable unit controller Take control of your HVAC System with unique versatility and freedom — MCX General Catalogue Programmable controller, 6 relays, type MCX06D Electronic controller MCX06D Easy and fast. Apply the MCXWeb tool with your MCX. MCX Web Installation guide The easiest way to get control of your HVAC/R system. MCXShape Danfoss EU-UK 080R1224.02 MCX programmable controllers Danfoss MD 080R1240.00 Danfoss MD 080R4002.01 MCX06D - Electronic control - With LCD display MCX06D - Electronic control - Without display MCX06D dimensions MCX06D - Connection diagram MCX 06D, different versions
