080G0250

Part Number: 080G0250
080G0250
Manufacturer
Danfoss
Part number
080G0250
Category

Product Information

Extended Description

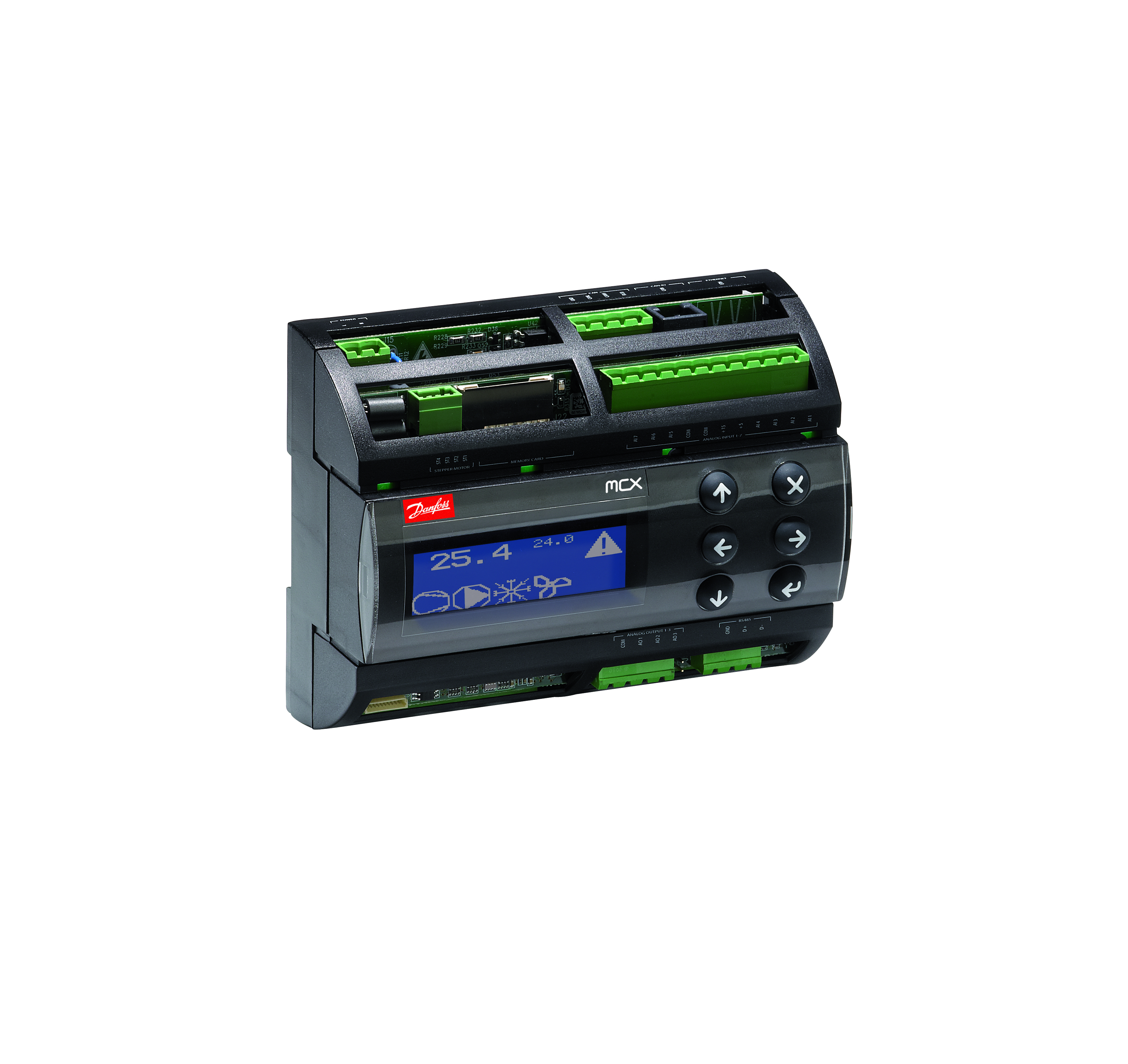

080G0250 Danfoss: Function: Programmable Controller, Supply voltage [V] AC: 110 - 230, Communication type: CANBUS; RS485; MODBUS, Packing format: Multi pack, Quantity per packing format: 12
Gross weight
0.556 Kilogram
Net weight
0.38 Kilogram
Volume
2.867 Liter
EAN
5702428414388
1 Primary battery SUM weight Kg
0.001
1 Primary battery weight Kg
0.001
Analog inputs (AI) [pc]
7 pc
Analog outputs (AO) [pc]
3 pc
Approval
CE,GOST R,UL
Battery qty
1
Battery type or Name
Lithium coin cell
Buzzer
No
CE evaluated
Yes
China RoHS compliance
Yes
Communication type
CANBUS,MODBUS,RS485
Connector kit Code No.
080G0268
Connector kit included
Yes
Contain batteries
Yes
Digital inputs (DI) [pc]
8 pc
Digital outputs (DO) [pc]
6 pc
Display type
LCD
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP40
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Programmable Controller
Further information
Backup Battery Input
Identical product
080G0257
In scope of WEEE
Yes
Mounting method
DIN rail
Packing format
Multi pack
PFAS content [Yes/No]
No
Power consumption [W]
27 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description
Program. controller, 6 relays
Quantity per packing format
12 pc
REACH Candidate List substances
No
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC [max]
230 V
Supply voltage [V] AC [min]
110 V
Type
MCX061V
Type designation
MCX061V
UK RoHS compliance
Yes
UL evaluated
Yes
MCX programmable unit controller Take control of your HVAC System with unique versatility and freedom — MCX General Catalogue Programmable controller, 6 relays, type MCX061V Electronic controller, MCX061V Easy and fast. Apply the MCXWeb tool with your MCX. MCX Web Installation guide The easiest way to get control of your HVAC/R system. MCXShape Danfoss EU-UK 080R1224.02 MCX programmable controllers Danfoss MD 080R1240.00 Danfoss MD 080R4002.01 MCX061V -Electronic control - With LCD display
