080G0285

Part Number: 080G0285
080G0285
Manufacturer
Danfoss
Part number
080G0285
Category

Product Information

Extended Description

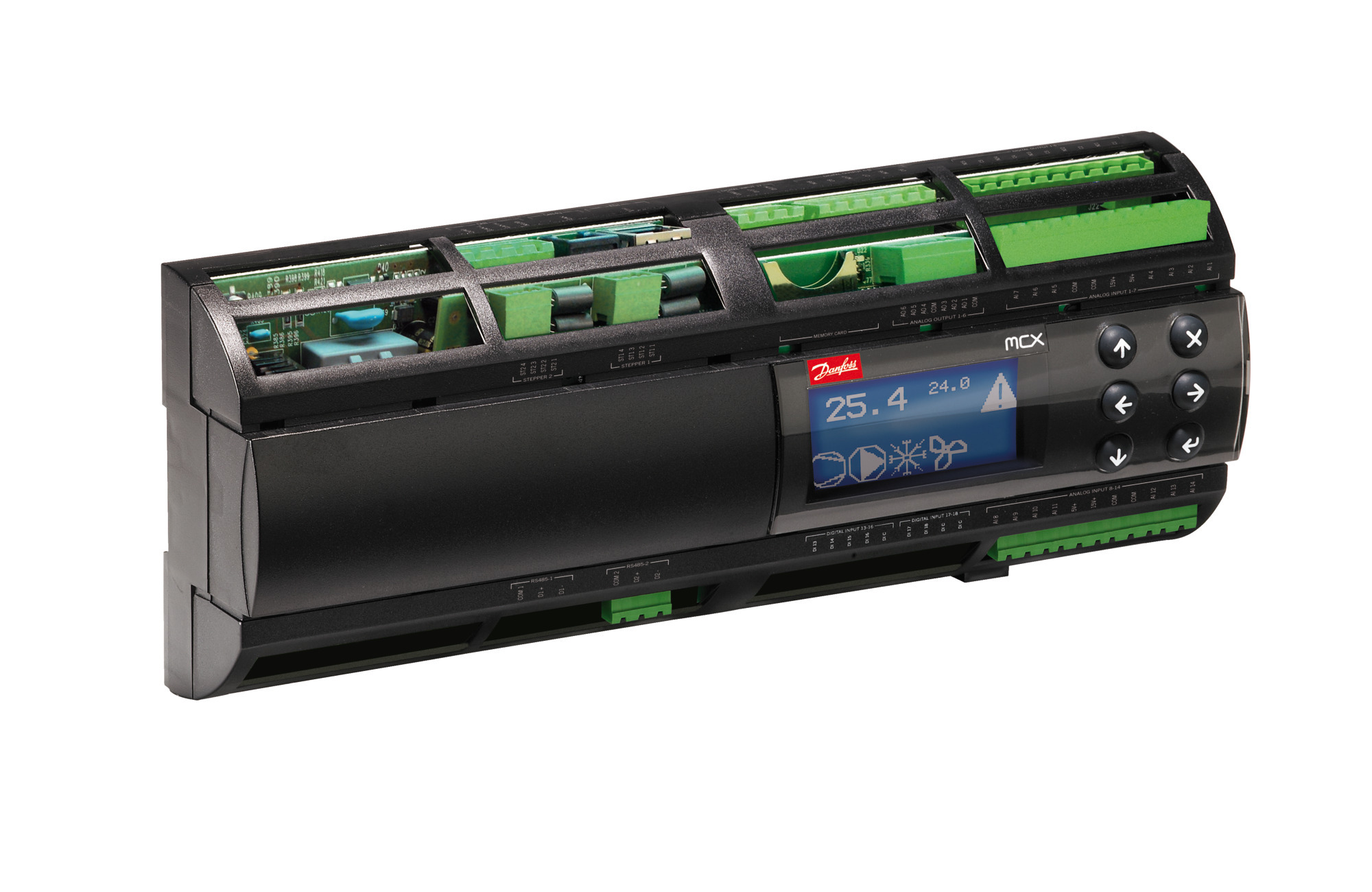

080G0285 Danfoss: Function: Programmable Controller, Supply voltage [V] AC: 110 - 230, Communication type: CANBUS; RS485; Ethernet; MODBUS, Packing format: Multi pack, Quantity per packing format: 8
Gross weight
0.998 Kilogram
Net weight
0.823 Kilogram
Volume
4.762 Liter
EAN
5702428484183
1 Primary battery SUM weight Kg
0.001
1 Primary battery weight Kg
0.001
Analog inputs (AI) [pc]
14 pc
Analog outputs (AO) [pc]
6 pc
Approval
CE,GOST R
Battery qty
1
Battery type or Name
Lithium coin cell
Buzzer
No
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
CANBUS,Ethernet,MODBUS,RS485
Connector kit Code No.
080G0308
Connector kit included
Yes
Contain batteries
Yes
Digital inputs (DI) [pc]
18 pc
Digital outputs (DO) [pc]
15 pc
Display type
LCD
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP40
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Programmable Controller
Further information
Backup Battery Input
In scope of WEEE
Yes
Mounting method
DIN rail
Packing format
Multi pack
PFAS content [Yes/No]
No
Power consumption [W]
27 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description
Program. controller, 15 relays
Quantity per packing format
8 pc
REACH Candidate List substances
No
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC [max]
230 V
Supply voltage [V] AC [min]
110 V
Type
MCX152V
Type designation
MCX152V
UK RoHS compliance
Yes
MCX programmable unit controller Supermarket Catalog 2020 Take control of your HVAC System with unique versatility and freedom — MCX General Catalogue Programmable controller, 15 relays, type MCX152V Electronic Controller MCX152V MCX Rooftop controller - Intruction sheet Easy and fast. Apply the MCXWeb tool with your MCX. MCX Web Installation guide MCX-RTU Rooftop unit Danfoss EU-UK 080R1224.02 Danfoss EU-UK 080R1226.02 MCX programmable controllers MCX Programmable Controllers (w. WIFI/BT) Danfoss MD 080R1240.00 MCX152V -Electronic control - With LCD display MCX 152V - Dimensions MCX152V -Electronic control - Without display MCX 152V - Connection diagram
