080G0295
Part Number: 080G0295
Product Information
Extended Description
080G0295 Danfoss: Function: Programmable Controller, Supply voltage [V] AC: 24, Communication type: CANBUS, Packing format: Multi pack, Quantity per packing format: 34
Gross weight
0.259 Kilogram
Net weight
0.2 Kilogram
Volume
1.057 Liter
EAN
5702428848961
Approval
CE,CMIM,GOST R,UL
Buzzer
Yes
CE evaluated
Yes
China RoHS compliance
Yes
Communication type
CANBUS
Connector kit included
Yes
Display type
LCD
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP40
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Programmable Controller
In scope of WEEE
Yes
Packing format
Multi pack
PFAS content [Yes/No]
No
Power consumption [W]
1.5 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description

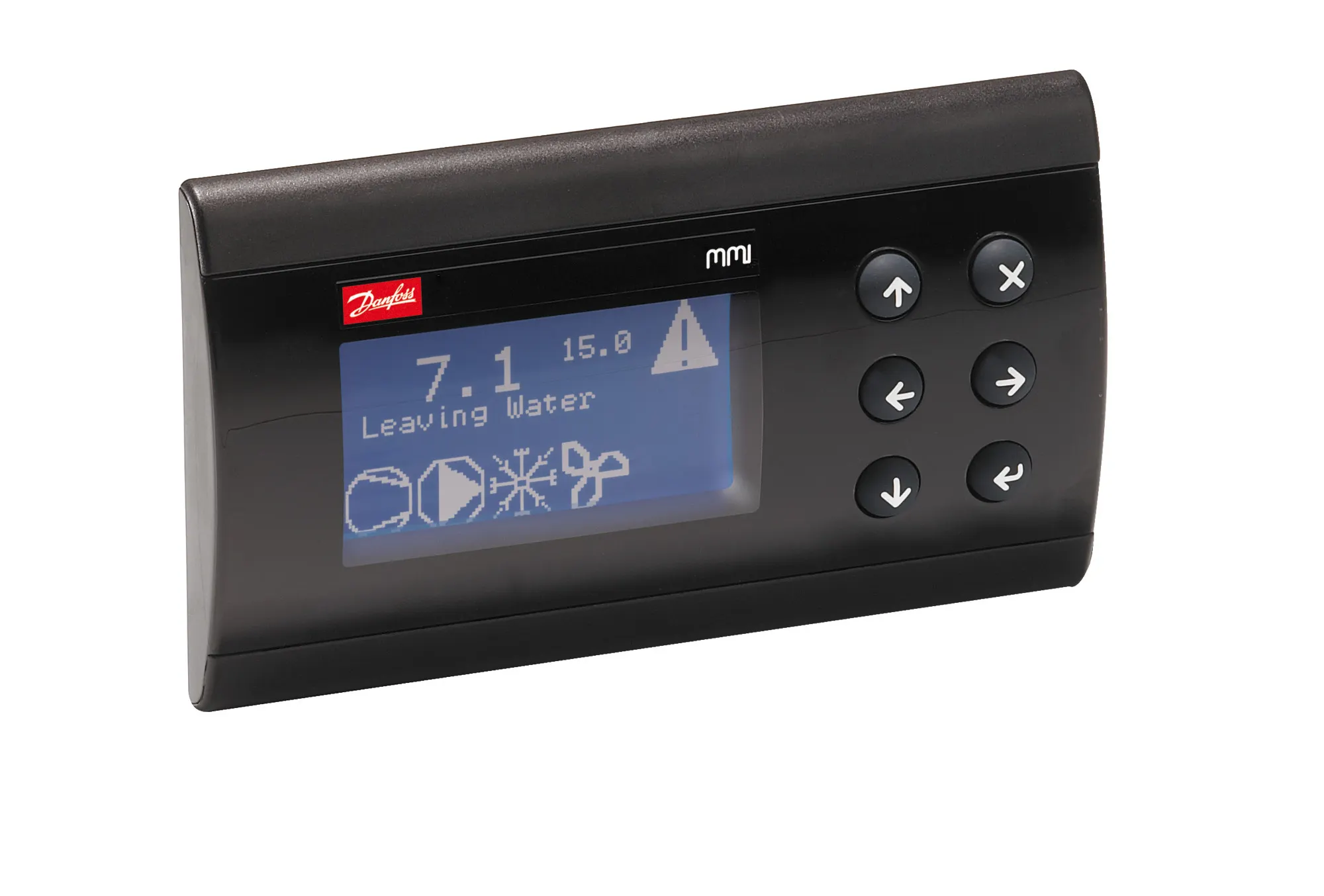

Control panel
Quantity per packing format
34 pc
REACH Candidate List substances
No
Real time clock
No
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
12 V
Type
MMIGRS2
Type designation
MMIGRS2
UK RoHS compliance
Yes
UL evaluated
Yes
