080G0315

Part Number: 080G0315
080G0315
Manufacturer
Danfoss
Part number
080G0315
Category

Product Information

Extended Description

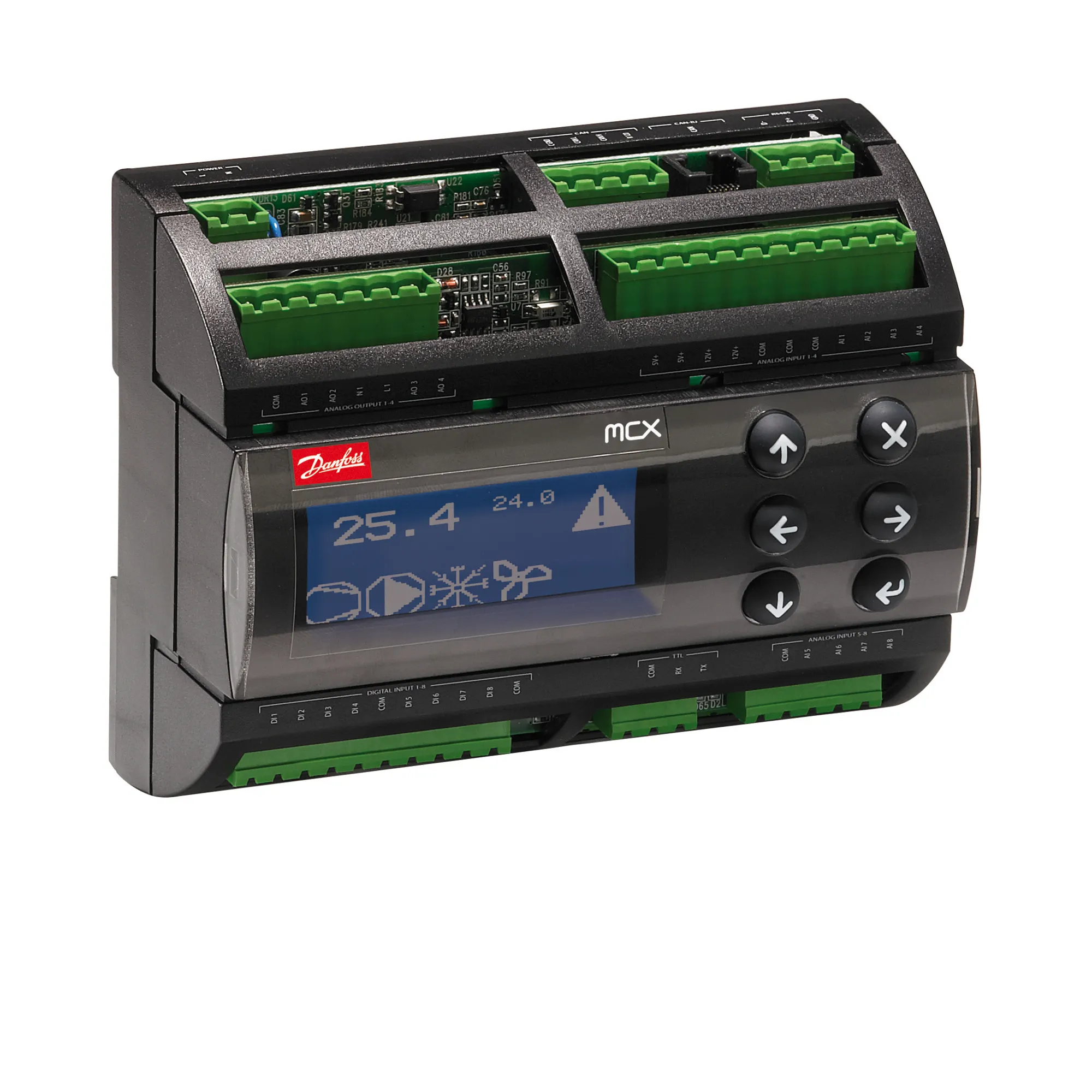

080G0315 Danfoss: Function: Programmable Controller, Supply voltage [V] AC: 24, Communication type: CANBUS; RS485; MODBUS, Packing format: Industrial pack, Quantity per packing format: 24
Gross weight
0.482 Kilogram
Net weight
0.397 Kilogram
Volume
2.311 Liter
EAN
5702428945882
1 Primary battery SUM weight Kg
0.001
1 Primary battery weight Kg
0.001
Analog inputs (AI) [pc]
8 pc
Analog outputs (AO) [pc]
4 pc
Approval
CE,EAC,LLC CDC TYSK,UL
Battery qty
1
Battery type or Name
Lithium coin cell
Buzzer
Yes
CE evaluated
Yes
China RoHS compliance
Yes
Communication type
CANBUS,MODBUS,RS485
Connector kit Code No.
080G0180
Connector kit included
No
Contain batteries
Yes
Digital inputs (DI) [pc]
8 pc
Digital outputs (DO) [pc]
8 pc
Display type
LCD
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP40
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Programmable Controller
Identical product
080G0310
In scope of WEEE
Yes
Mounting method
DIN rail
Packing format
Industrial pack
PFAS content [Yes/No]
No
Power consumption [W]
10 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description
Program. controller, 8 relays
Quantity per packing format
24 pc
REACH Candidate List substances
No
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
MCX08M2
Type designation
MCX08M2
UK RoHS compliance
Yes
UL evaluated
Yes
Programmable controller, 8 relays, type MCX08M2 Electronic controller MCX08M2 Electronic controller, MCX08M2 with TTL Danfoss EU-UK 080R1226.02 MCX programmable controllers Danfoss MD 080R1240.00 Danfoss MD 080R4002.01 MCX 08M - Electronic control - With LCD display MCX08M - Electronic control - Without display MCX08M2 - Electronic control
