080G0325

Part Number: 080G0325
Manufacturer
Danfoss
Part number
080G0325
Category

Product Information

Extended Description

080G0325 Danfoss: Digital inputs (DI) [pc]: 2, Analog inputs (AI) [pc]: 4, Pressure sensor support: Ratiometric 0.5 - 4 V DC, Frequency [Hz]: 50/60 Hz
Gross weight
0.296 Kilogram
Net weight
0.134 Kilogram
Volume
1.829 Liter
EAN
5702428673730
Analog inputs (AI) [pc]
4 pc
Analog inputs type
Voltage
Approval
C-TICK,CE,EAC,LLC CDC EURO-TYSK,RoHS
Battery back-up [V] DC [max]
24 V
Battery back-up [V] DC [min]
18 V
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Modbus RS485 RTU,RJ11 (CAN) to User Interface
Digital inputs (DI) [pc]
2 pc
Digital outputs (DO) [pc]
1 pc
Display - option
MMIGRS2
Display on front
No
Division
25
Enclosure rating note
IP40 for Housing
Frequency [Hz]
50/60 Hz
Further information
Shared power supply,Signal share via hardwire
Gateway option
MMIMYK
Mounting method
DIN rail
Number of pressure sensors
1
Number of temperature sensors
2
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
PFAS content [Yes/No]
No
Pressure sensor support
Ratiometric 0.5 - 4 V DC
Product accessories
Electron. control accessories
Product features
Alarm management,Capacity signal from master,Defrost Sequence,Ext reference, temp/SH control,Limitation functions,Manual operation,Preset OD,Reversible system with 1 EXV,Service mode,Start up,Superheat reference,Valve driver: Reference of OD
Product group
Electronic valve control
Product Language
Chinese,English,French,German,Italian,Portuguese,Russian,Spanish
Product Name Description
Stepper valve driver
Programming tools
Koolprog
Quantity per packing format
16 pc
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Temp. sensor support
Pt 1000
Type
EKE 1P
UK RoHS compliance
Out of scope
Used for product
CCM,CCMT,CTR,ETS,KVS
Valve output type
CCM 10,CCM 20,CCM 30,CCM 40,CCMT 0,CCMT 1,CCMT 16,CCMT 2,CCMT 24,CCMT 30,CCMT 3L,CCMT 4,CCMT 42,CCMT 5L,CCMT 8,CCMT8L,CTR 20,ETS 100,ETS 100C,ETS 12.5,ETS 12C,ETS 24C,ETS 25,ETS 250,ETS 25B,ETS 25C,ETS 400,ETS 50,ETS 50C,ETS 6,KVS 15,KVS 2C,KVS 3C,KVS 42

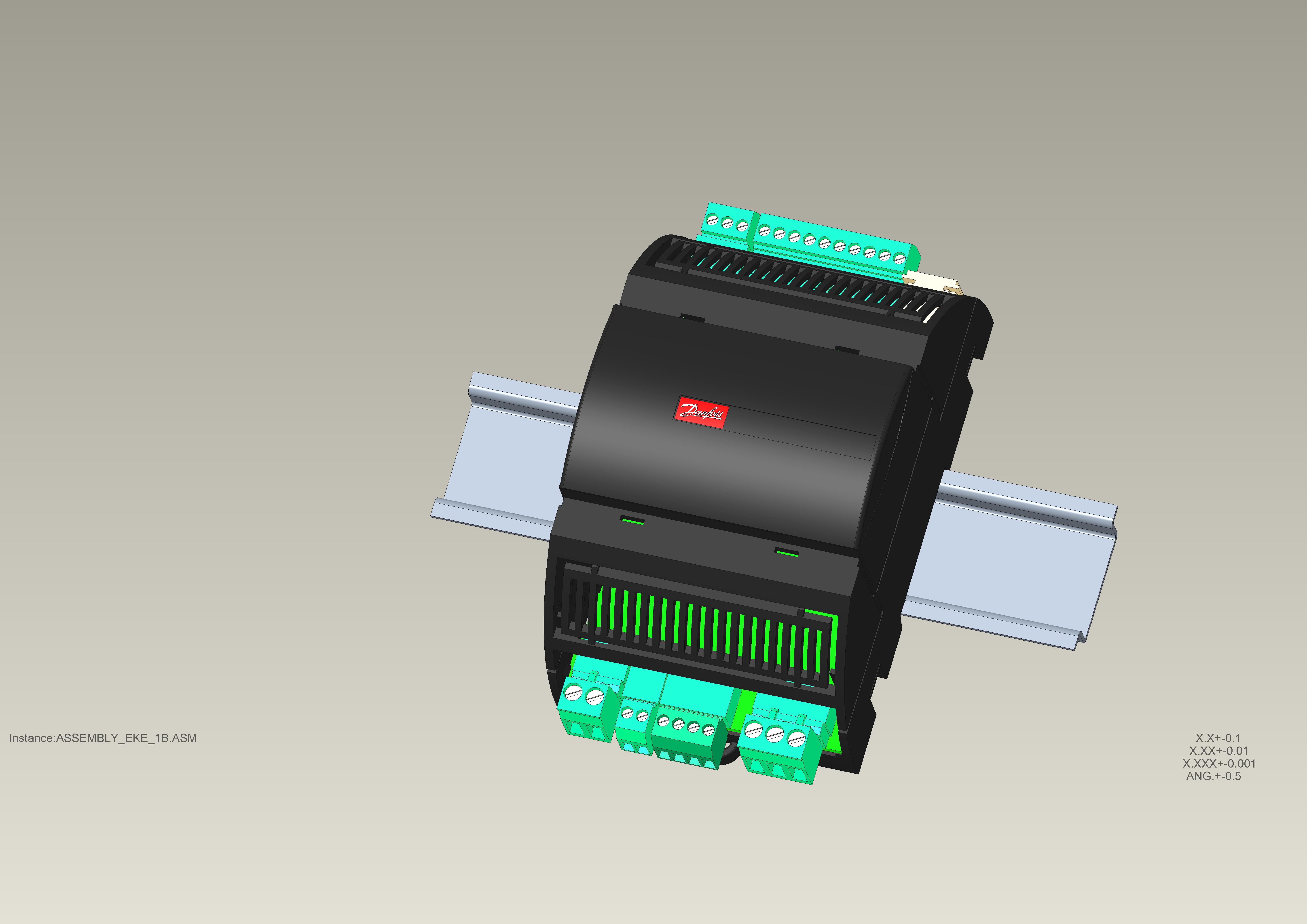

Stepper Valve Extension Module, Type EKE 1P - Installation guide UK PSTI regulation for Pack Controllers and Extension Modules Control of stepper motor valves with AK-CC55 Single Coil, EKE 1P and EKE 2U How to update firmware on EKE 1P (080G0325) with counter reset problem Stepper Valve Extension Module, type EKE 1P UL E31024 Pack controllers (Mid End) Danfoss MD 080R1247.00 Danfoss MD 080R1248.02 EKE1P_080G0325 080G0325 - 3D - JPG
