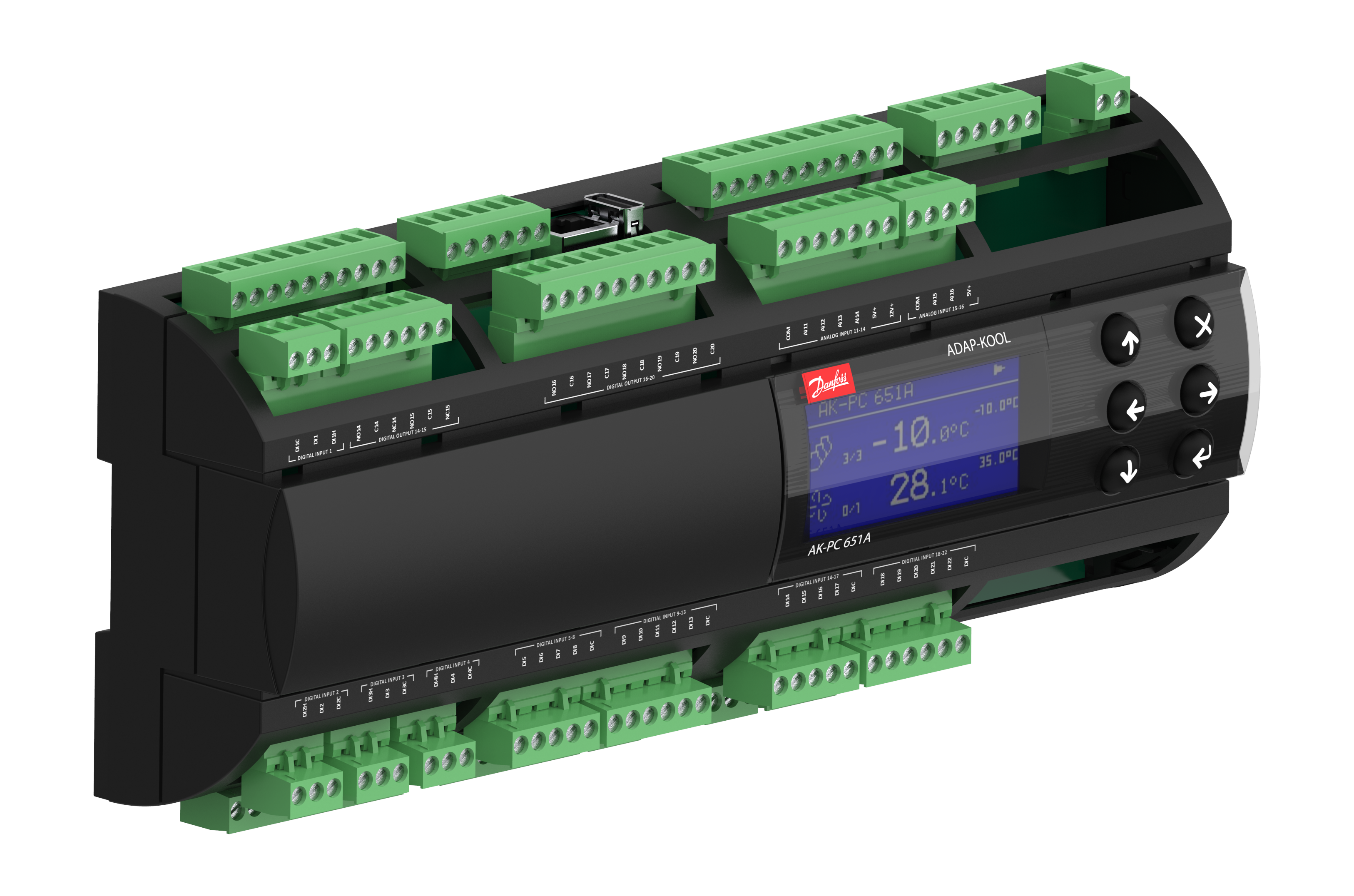

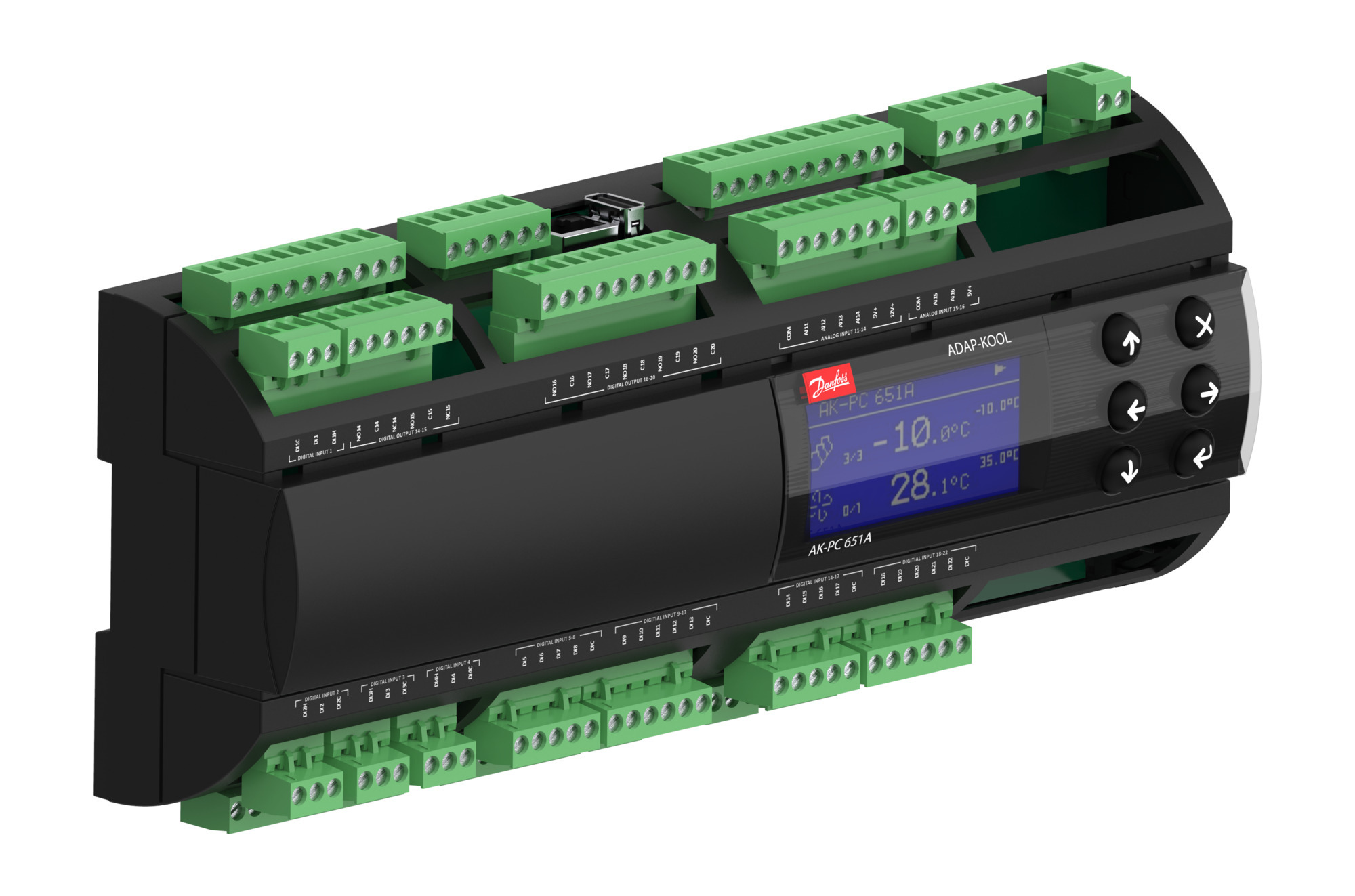

080G0336
Part Number: 080G0336
Product Information
Extended Description
080G0336 Danfoss: Function: 1 Suction and 1 Condenser, Digital inputs (DI) [pc]: 22, Supply voltage [V] AC: 24 - 230, Communication type: MODBUS, Packing format: Multi pack, Quantity per packing format: 8
Gross weight
1.057 Kilogram
Net weight
0.8 Kilogram
Volume
4.426 Liter
EAN
5715162508541
Analog inputs (AI) [pc]
16 pc
Analog outputs (AO) [pc]
6 pc
Application area
Capacity control
Approval
CE,EAC,UA,UL Recognized
Buzzer
No
Capacity control input
Pressure/ Temperature
Capacity control mode
PI
CE evaluated
Yes
Communication type
MODBUS
Compressor capacity mode
Step/ Speed/ PWM
Condenser control type
Pressure/ Temperature
Connector kit Code No.
080G0404
Connector kit included
Yes
Digital inputs (DI) [pc]
22 pc
Digital outputs (DO) [pc]
20 pc
Display type
LCD
Enclosure rating IP
IP40
Fan capacity control
Step/ Speed
Fan control mode
PI
Frequency [Hz]
50/60 Hz
Function
1 Suction and 1 Condenser
Mounting method
DIN rail
Packing format
Multi pack
Power consumption [W]
15 W
Product accessories
Electron. control accessories
Product features
Buzzer,Compressor safety,Discharge gas temp. safety,Fan safety,Floating condenser pressure,Heat recovery function,High pressure safety,LCD display built in,Load shedding,Low pressure safety,Night optimization,P0 optimization,Real time clock,Suction gas temp. safety
Product group
Compressor/condenser control
Product Language
Croatian,Czech,Danish,Dutch,English,French,German,Hungarian,Italian,Polish,Portuguese,Romania,Russian,Serbian,Spanish,Turkish
Product Name Description
Pack controller
Quantity per packing format
8 pc
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC [max]
230 V
Supply voltage [V] AC [min]
24 V
Supply voltage [V] DC [max]
230 V
Supply voltage [V] DC [min]
40 V
Type
AK-PC 651A
Type designation
AK-PC 651A
UL evaluated
Yes
