080G1002
Part Number: 080G1002
Product Information
Extended Description
080G1002 Danfoss: Enclosure rating IP: IP00, Spec. Factory settings: YES
Gross weight
0.05 Kilogram
Net weight
0.037 Kilogram
Volume
0.25 Liter
EAN
5702428457637
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-25 °C
Analog inputs (AI) [pc]
3 pc
Analog outputs (AO) [pc]
0 pc
Approval
CE,EAC,LLC CDC EURO-TYSK,RoHS,UKCA
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Modbus RS485 RTU
Contain batteries
No
Digital inputs (DI) [pc]
1 pc
Display - option
None
Display on front
No
Division
01
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP00
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
In scope of WEEE
Yes
Max. current output/phase [A]
1 A
Mounting method
Screw mounting
Number of pressure sensors
1
Number of temperature sensors
2
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
PFAS content [Yes/No]
No
Pressure sensor support
Ratiometric 0.5 - 4 V DC
Product accessories
Electron. control accessories
Product features
Alarm management,Superheat reference
Product group
Electronic valve control
Product Language
English
Product Name Description
Superheat controller
Quantity per packing format
40 pc
REACH Candidate List substances
No
Serviceable
No
Spec. Factory settings
YES
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Temp. sensor configuration
S2
Temp. sensor support
Pt 1000
Type
EIM 336
UK RoHS compliance
Yes
Valve output number
1
Valve output type
ETS 6
ETS 6 + EIM 336 Save energy with precise flow control in A/C
Superheat controller, type EIM 336
Electronic superheat controller, Type EIM 316, 336, 365
Application for configuring the EIM 316/336 using MMIMyK, type EIM 316/336 interface
Danfoss EU-UK 080R0405.02
Danfoss MD 080R1250.02
Danfoss MD-UK 080R1228.04
EIM 336, code number 080G1002

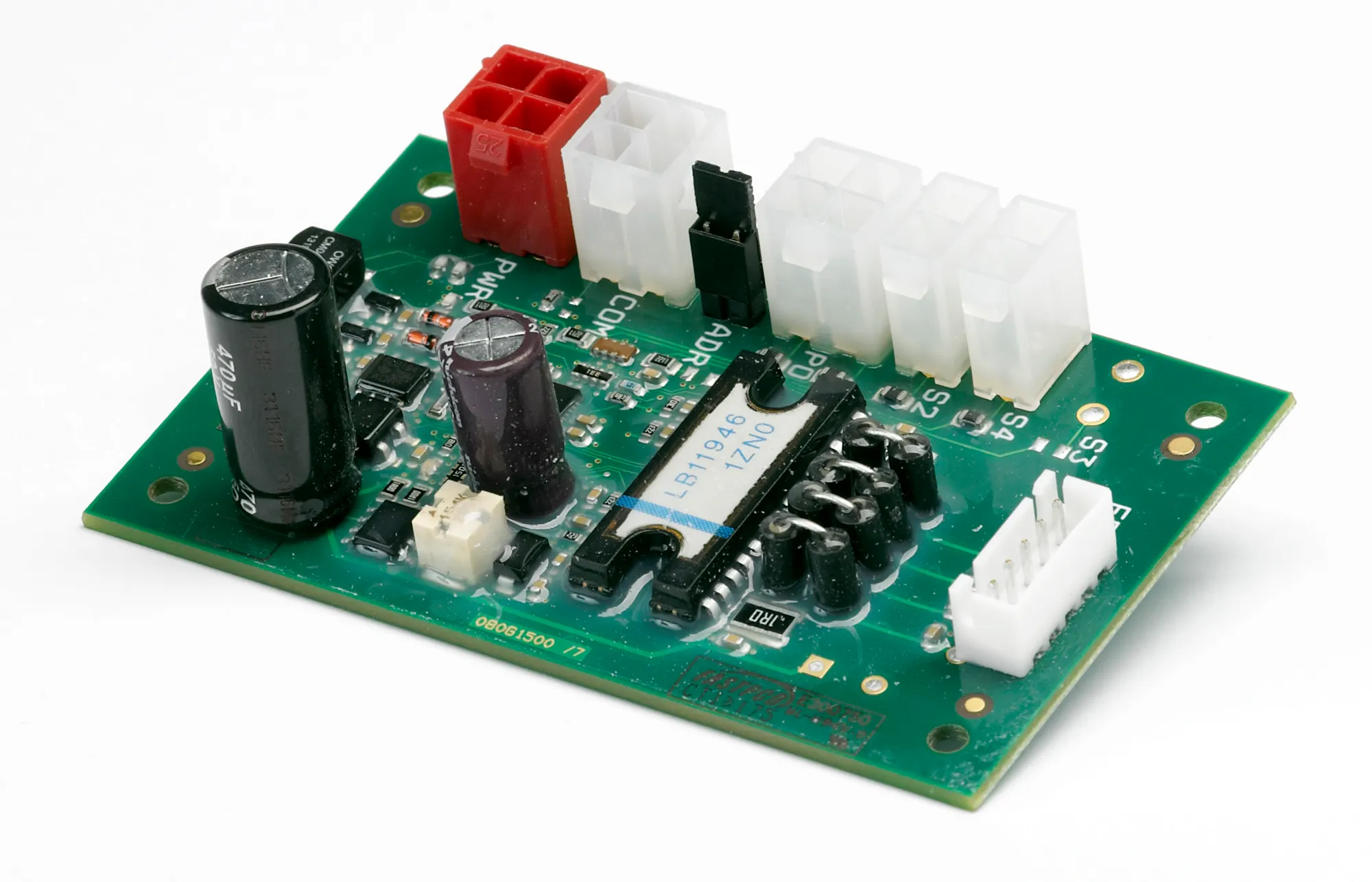

EIM 336 printed circuit board, top view
