080G5004
Part Number: 080G5004
Product Information
Extended Description
080G5004 Danfoss: Electronic valve control, Application area: Direct Expansion evaporator; Flooded evaporator, Function: Cooling, Hot Gas Defrost, Communication type: RS485; MODBUS, Product features: Buzzer; Real time clock
Gross weight
0.642 Kilogram
Net weight
0.569 Kilogram
Volume
2.867 Liter
EAN
5702428546195
1 Primary battery SUM weight Kg
0.001
1 Primary battery weight Kg
0.001
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-20 °C
Analog inputs (AI) [pc]
8 pc
Analog inputs type
Voltage or Current
Analog outputs (AO) [pc]
4 pc
Application area
Direct Expansion evaporator,Flooded evaporator
Approval
CE,cURus,UKCA
Battery type or Name
Lithium coin cell
Buzzer
Yes
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
MODBUS,RS485
Connector kit included
Yes
Contain batteries
Yes
Digital inputs (DI) [pc]
8 pc
Digital outputs (DO) [pc]
8 pc
Display - option
On front. Option: MMIGRS2
Display on front
Yes
Display type
LED graphic
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP20
Equipment
Incl. Connectors
Frequency [Hz]
50/60 Hz
Function
Cooling, Hot Gas Defrost
In scope of WEEE
Yes
Mounting method
DIN rail
Number of Sensor inputs
8 pc
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
17 VA
Power consumption [W]
10 W
Product features
Buzzer,Real time clock
Product group
Electronic valve control
Product Language
Chinese,English,Portuguese,Spanish,Dutch,French,German,Italian,Russian,Japanese,Korean
Product Name Description
Evaporator and room control
Programming tools
CoolSelector
Quantity per packing format
12 pc
Real time clock
Yes
Sensor type
Temperature sensor,Pressure sensor
Supply voltage [V] AC [max]
28 V
Supply voltage [V] AC [min]
21 V
Supply voltage [V] DC [max]
60 V
Supply voltage [V] DC [min]
20 V
Temp. sensor support
Pt 1000
Type
EKE 400
UK RoHS compliance
Out of scope
UL evaluated
Yes
EKE 400 Evaporator Controller brochure
Evaporator and room control, type EKE 400
EKE 400 Installation Guide
Danfoss EU-UK 080R5562.AA
EKE 400/450 Evaporator Controllers with and without HMI -- 220V AC, and 24V AC/DC
Danfoss MD 080R1247.00
Danfoss MD 080R1248.02

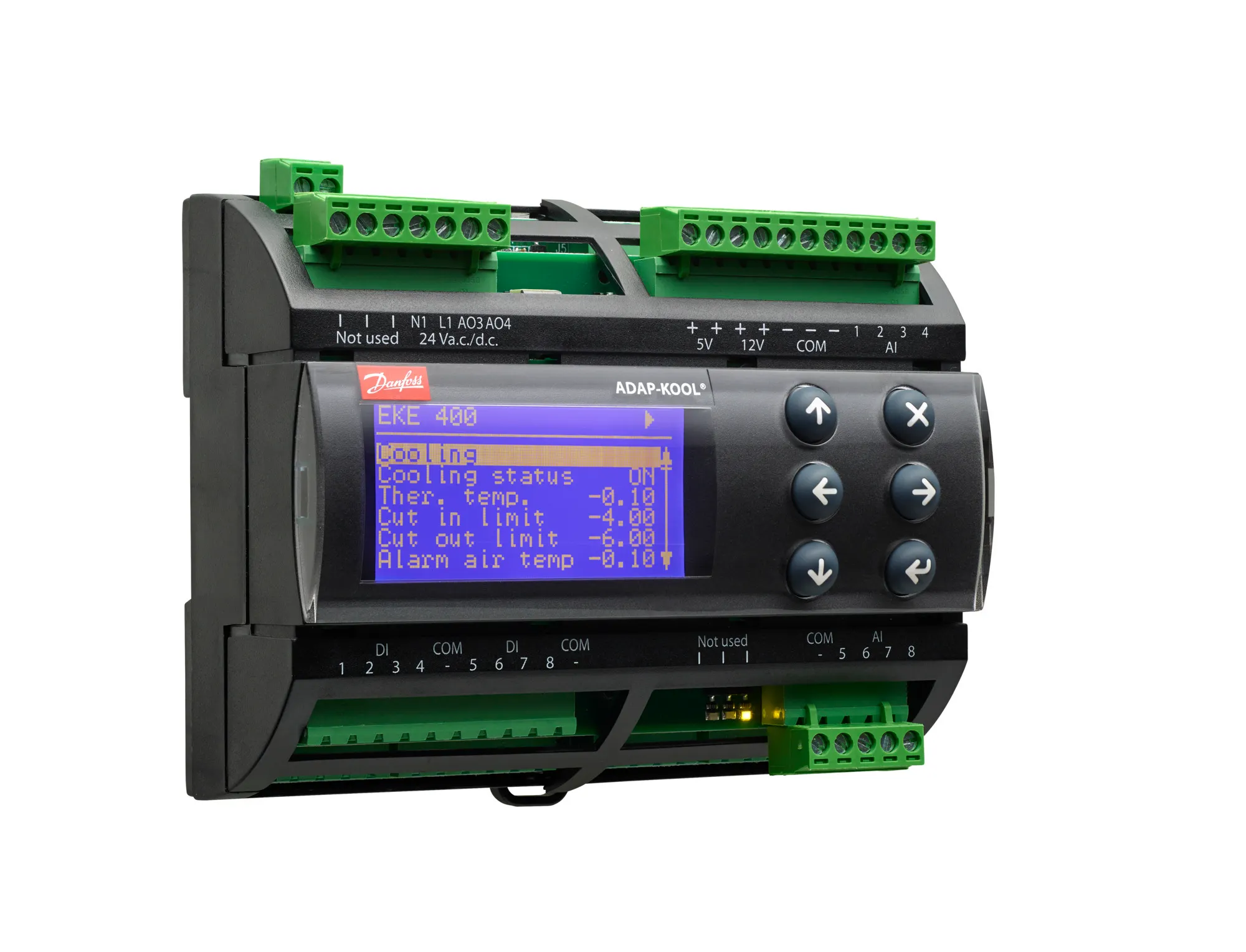

EKE400 evaporator controller right view_080G5004
