080G6000

Part Number: 080G6000
080G6000
Manufacturer
Danfoss
Part number
080G6000
Category

Product Information

Extended Description

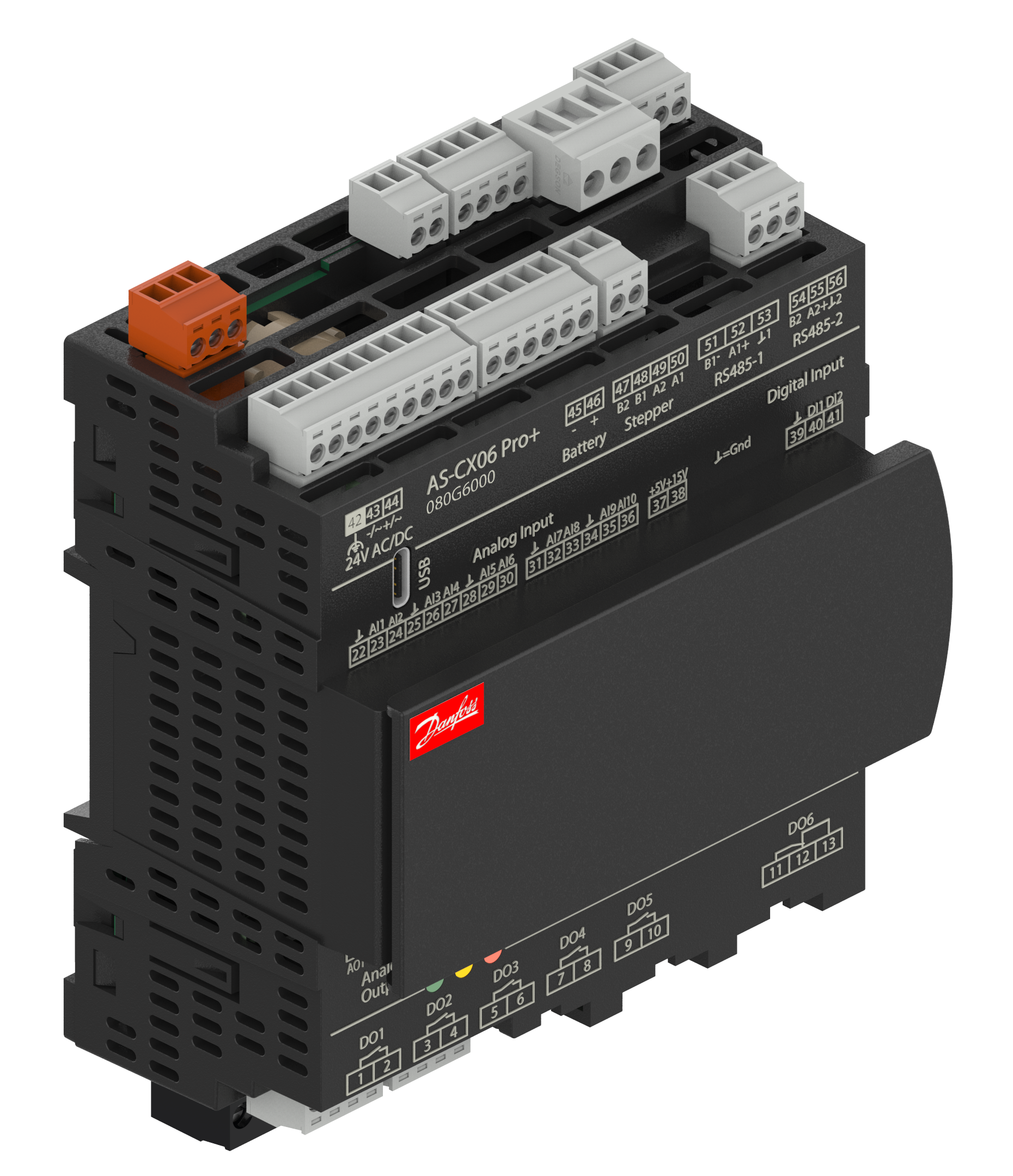

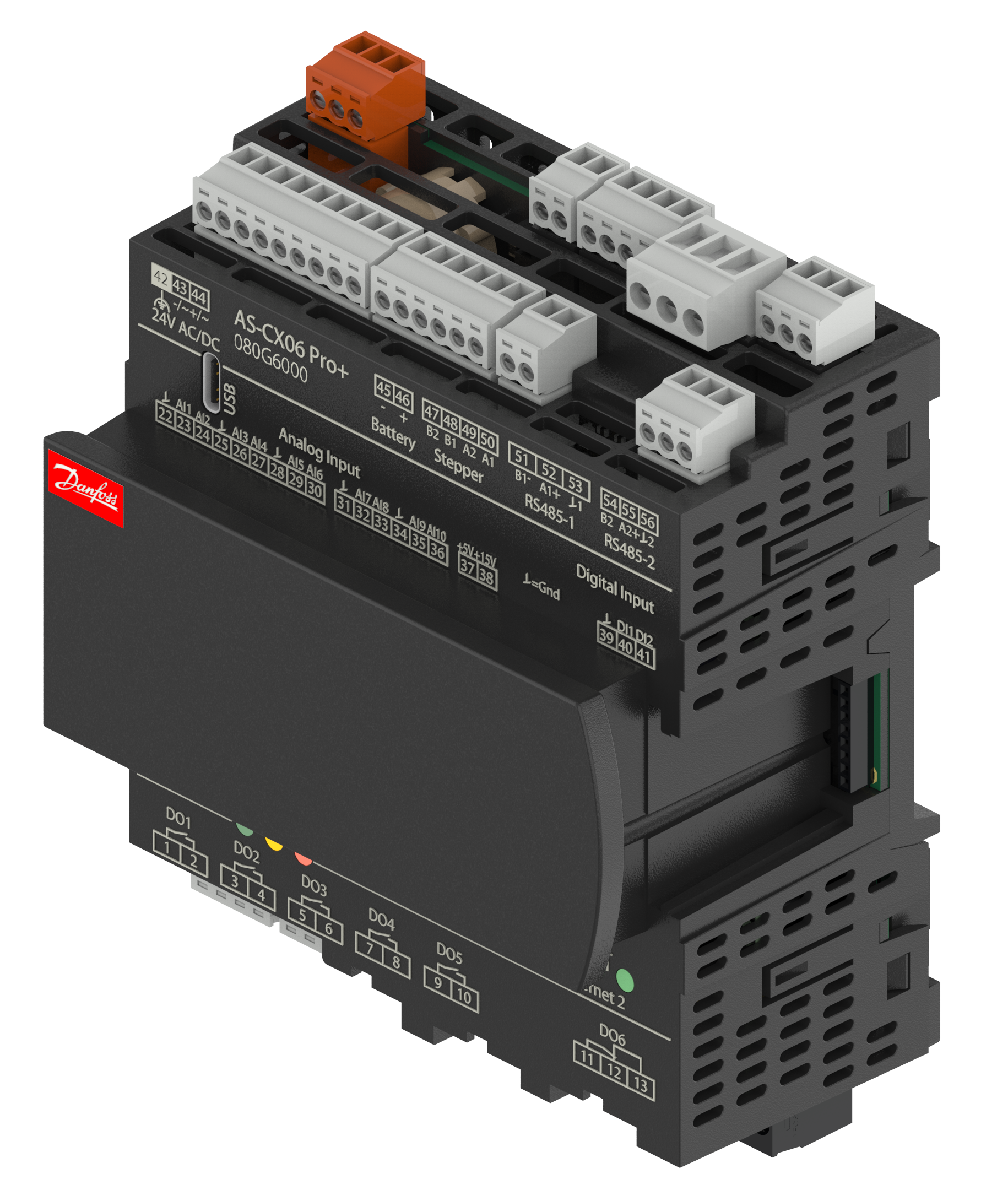

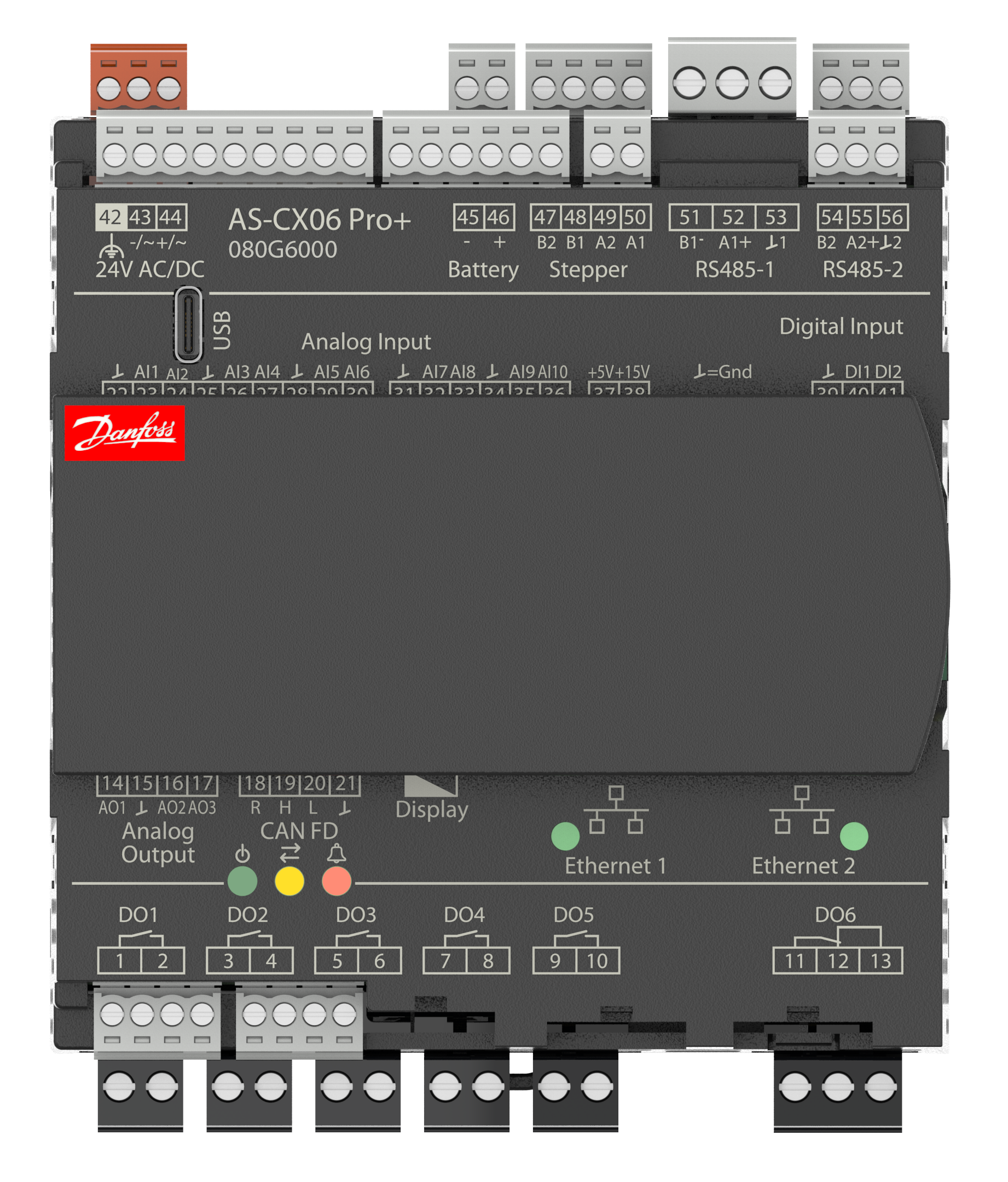

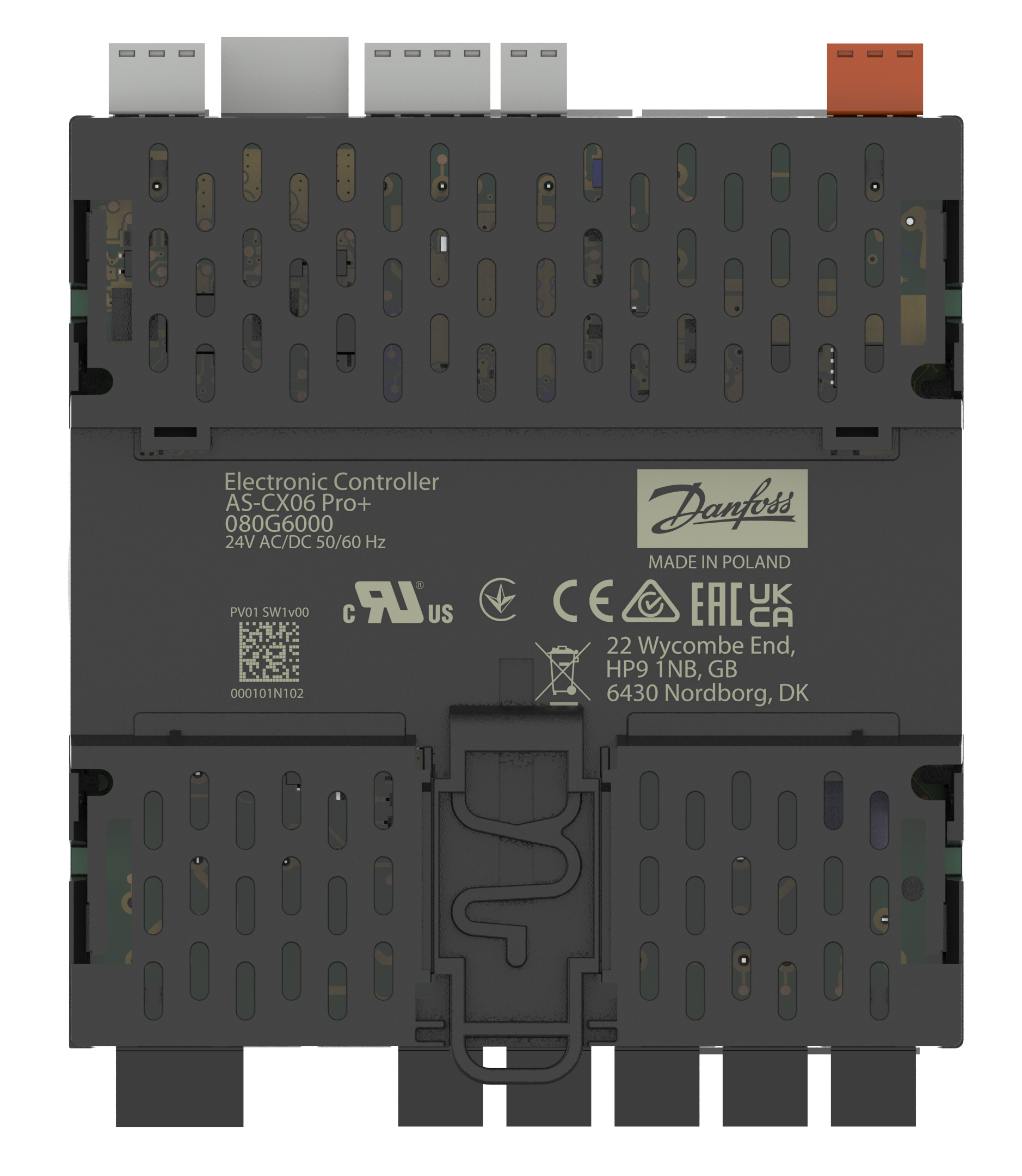

080G6000 Danfoss: Function: Programmable Controller, Supply voltage [V] AC: 24, Communication type: 2xETHERNET; 2xRS485; USB-C; RJ11 (CAN) to User Interface; CAN-FD, Digital inputs (DI) [pc]: 12, Analog inputs (AI) [pc]: 10, Digital outputs (DO) [pc]: 6, Analog outputs (AO) [pc]: 3, Packing format: Single pack
Gross weight
0.44 Kilogram
Net weight
0.32 Kilogram
Volume
1.315 Liter
EAN
5715162703236
Analog inputs (AI) [pc]
10 pc
Analog outputs (AO) [pc]
3 pc
Application area
Programmable controller
Approval
CE,UL Recognized
Battery back-up [V] DC [max]
42 V
Battery back-up [V] DC [min]
18 V
Buzzer
No
CE evaluated
Yes
Communication type
2xRS485,CAN-FD,USB-C,RJ11 (CAN) to User Interface,2xETHERNET
Connector kit Code No.
080G6021
Connector kit included
Yes
Control of Stepper driver [pc]
1 pc
Digital inputs (DI) [pc]
12 pc
Digital outputs (DO) [pc]
6 pc
Enclosure rating IP
IP20
Frequency [Hz]
50/60 Hz
Function
Programmable Controller
Mounting method
DIN rail
Packing format
Single pack
Power consumption [W]
30 W
Product group
Programmable controllers
Product Name Description
Program. controller, 6 relays
Quantity per packing format
1 pc
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC [max]
60 V
Supply voltage [V] DC [min]
24 V
Type
AS-CX06
Type designation
AS-CX06 Pro+
UL evaluated
Yes
080G6016
Display, AS-UI Snap-on
080G6012
I/O module, AS-XP05+
Alsmart™ universal controller platform, type AS-CX06, AS-UI Snap-on Danfoss EU-UK 080R6012.02 ALSMART programmable controllers Danfoss MD 080R6015.00 080G6000_as-CX06_pro+ 080G6000_as-CX06_pro+ 080G6000_as-CX06_pro+ 080G6000_as-CX06_pro+ assembly_as-cx06_proplus_dy_ext.stp assembly_as-cx06-dy_xp05p_drj_ext.stp assembly_as-cx06_xp05p_ext.stp assy_as-cx06-dy_xp10_ps20_xp05_ext.stp assembly_as-cx06_proplus_ext.stp assy_as-cx06-dy_xp05p_ps20_xp05p_ext.stp
