080Z0017
Part Number: 080Z0017
Product Information
Extended Description
080Z0017 Danfoss: Function: Analog Inputs, Digital Outputs, Communication type: AK2 LOCAL BUS, Packing format: Multi pack, Quantity per packing format: 12
Gross weight
0.728 Kilogram
Net weight
0.49 Kilogram
Volume
3.374 Liter
EAN
5702428078887
Analog inputs (AI) [pc]
8 pc
Application area
Additional In- and Outputs
Approval
C-TICK,CE,LLC CDC TYSK,UR
CE evaluated
Yes
Communication type
AK2 LOCAL BUS
Controller type
Extension Module
Digital outputs (DO) [pc]
8 pc
Display on front
No
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Equipment
Euro blocks,Terminal resistor
EU RoHS compliance
Out of scope
Function
Analog Inputs, Digital Outputs
Further information
w. Override board
In scope of WEEE
Yes
Packing format
Multi pack
PFAS content [Yes/No]
No
Power consumption [VA]
4.8 VA
Product accessories
Electron. control accessories
Product group
I/O and communication modules
Product Name Description
I/O module
Quantity per packing format
12 pc
REACH Candidate List substances
No
Serviceable
No
Type
AK-XM 205B
UK RoHS compliance
Out of scope
Supermarket Catalog 2020
Pack controller, type AK-PC 782A
Pack controller, type AK-PC 782B
Monitoring unit AK-LM 330, menu operation via AKM
Instructions AK-XM 205B
Transmitter fault detection for AK-XM 101A, AK-XM 205A, AK-XM 205B
UK PSTI regulation for Pack Controllers and Extension Modules
UL E357029
AK-XM Modules
Danfoss MD 080R1221.02
Danfoss MD 080R1237.01
Danfoss MD-UK 080R1228.04

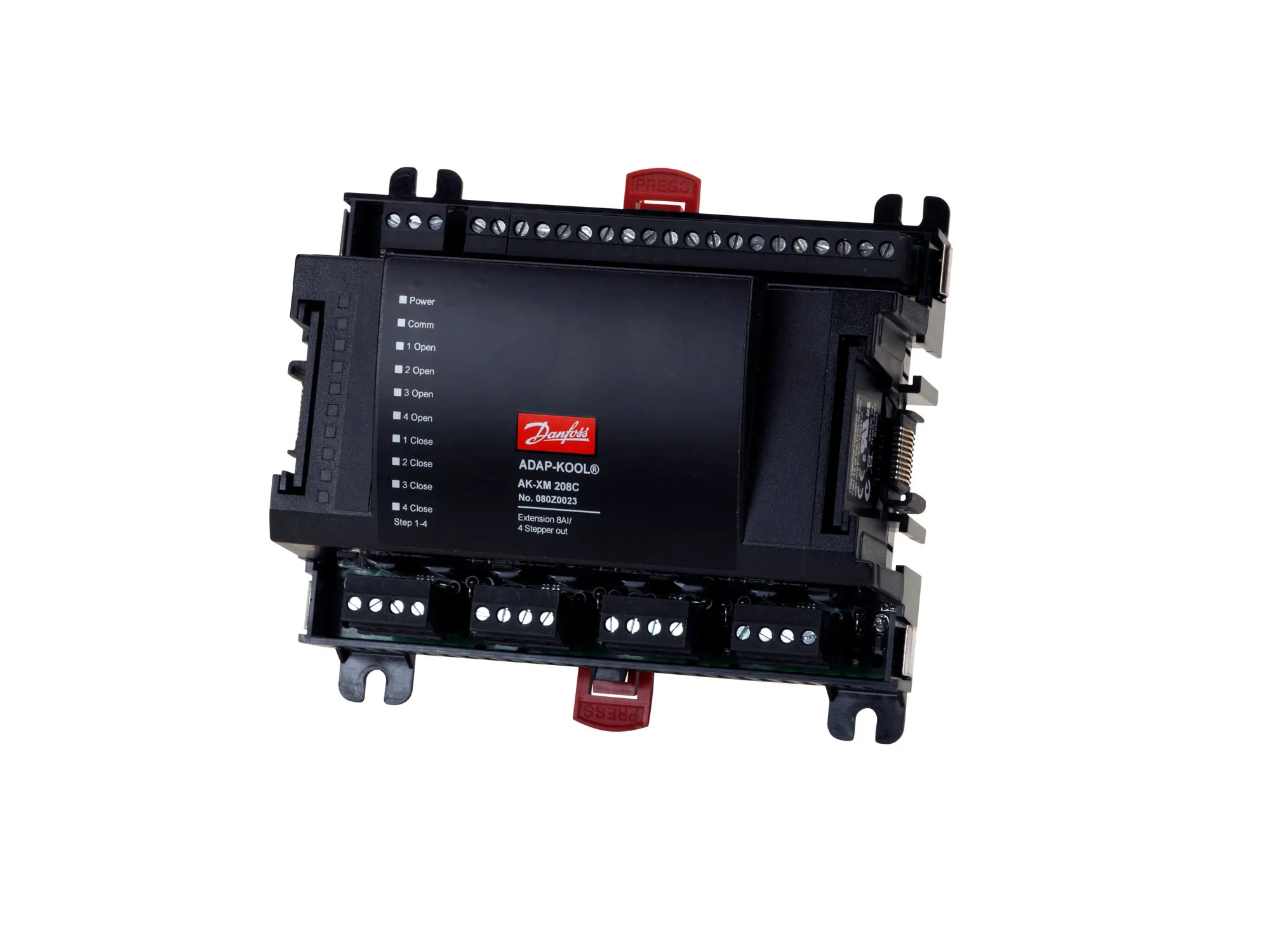

080Z0023 AK-XM 208C horizontal
AK-XM 200, connections and functions diagram
AK-CS, no display, AK-XM 200
AK-XM 205A/AK-XM 205B
AK-XM 205A/AK-XM 205B
ak-xm_205b_asm, STP, 080Z0017

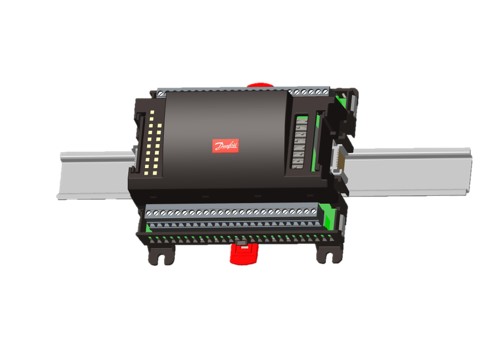

AK-XM 205B, JPG, 080Z0017
080Z0023 AK-XM 208C vertical
