080Z0139

Part Number: 080Z0139
080Z0139
Manufacturer
Danfoss
Part number
080Z0139
Category

Product Information

Extended Description

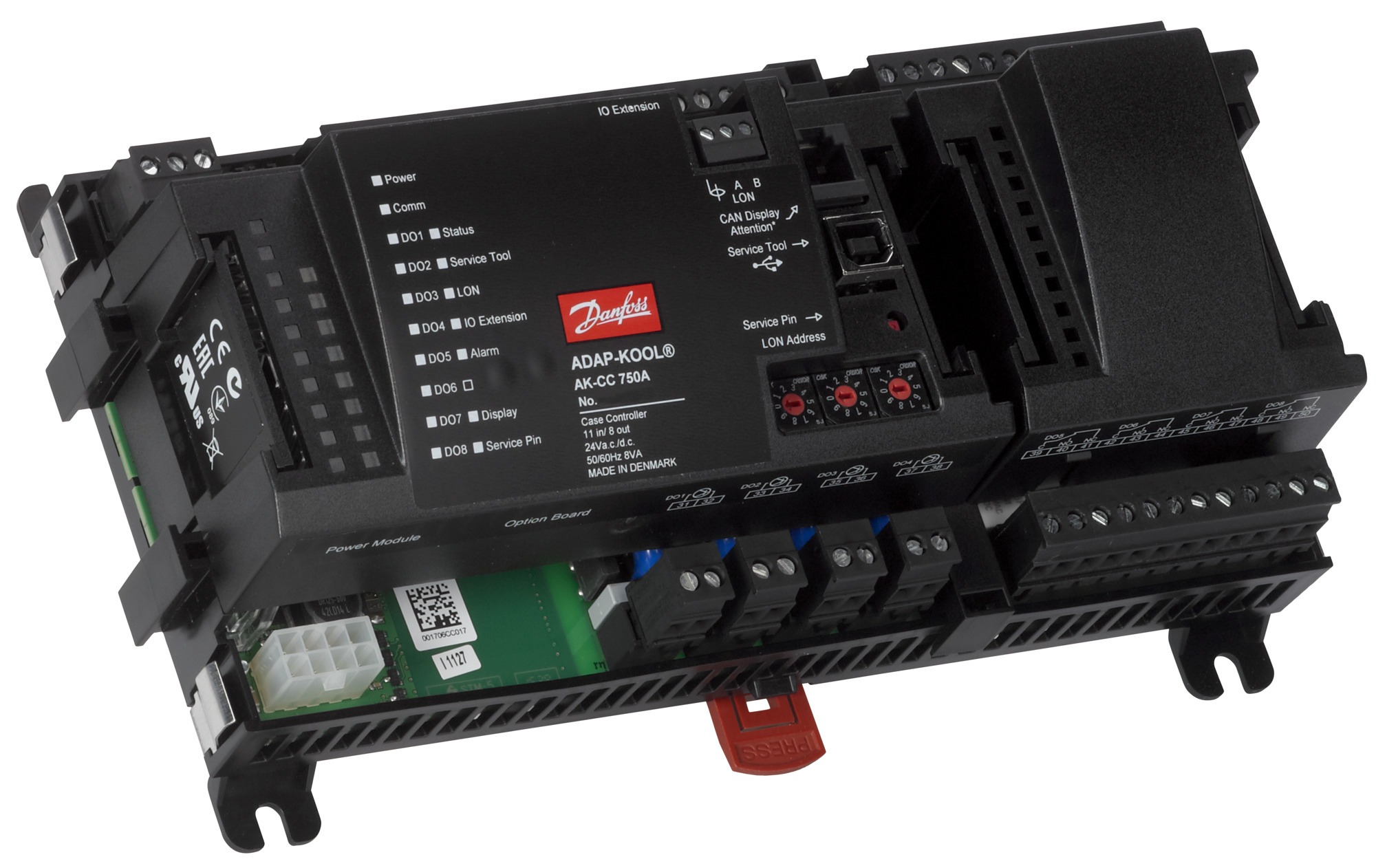

080Z0139 Danfoss: Function: 1-4 AKV(EEV), Flexible I/O, Supply voltage [V] AC: 24, Communication type: LON RS485, Packing format: Single pack, Quantity per packing format: 1
Gross weight
0.932 Kilogram
Net weight
0.645 Kilogram
Volume
6.248 Liter
EAN
5702428901314
Analog inputs (AI) [pc]
11 pc
Application area
Refrigeration control
Approval
CE,cURus
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
LON RS485
Controller type
Case/Room controller (4 AKV)
Digital outputs (DO) [pc]
8 pc
Display - option
EKA 163A,EKA 164B
Display on front
No
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Function
1-4 AKV(EEV), Flexible I/O
Further information
°F/ PSI
Number of Evaporators max.
4 pc
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
Press. Transmitter support
1-5 V,RATIOMETRIC
Product accessories
Electron. control accessories
Product group
Evaporator and room control
Product Language
American
Product Name Description
Case/room controller (EEV)
Quantity per packing format
1 pc
REACH Candidate List substances
No
Sensor connection
SCREW TERMINAL
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Temp. sensor support
PTC 1000,Pt 1000
Type
AK-CC 750
UK RoHS compliance
Out of scope
UL evaluated
Yes
Valve output type
AKV (EEV)
Supermarket Catalog 2020 AK-CC 750 IO Layout (2-13) Refrigerant constants, Antoine equation Instruction Controller AK- ( AK-CC 750, AK-CH 650, AK-PC 781) AK-CC 750 controller replacement Configuration AK-CC 750 to AK-SM 800 Controller for evaporator control AK-CC 750 - 080Z0130 & 080Z0139 Danfoss troubleshooting guide for supermarket electronics - User Guide The secret behind Danfoss adaptive defrost - Whitepaper Danfoss EU-UK 080R1206.05 Case/room controller (EEV) Danfoss MD 080R1221.02 Danfoss MD 080R1237.01 AK-CC 750A AK_CC 750, STP AK_PC 783A AK_PC 783A
