080Z0140
Part Number: 080Z0140
Product Information
Extended Description

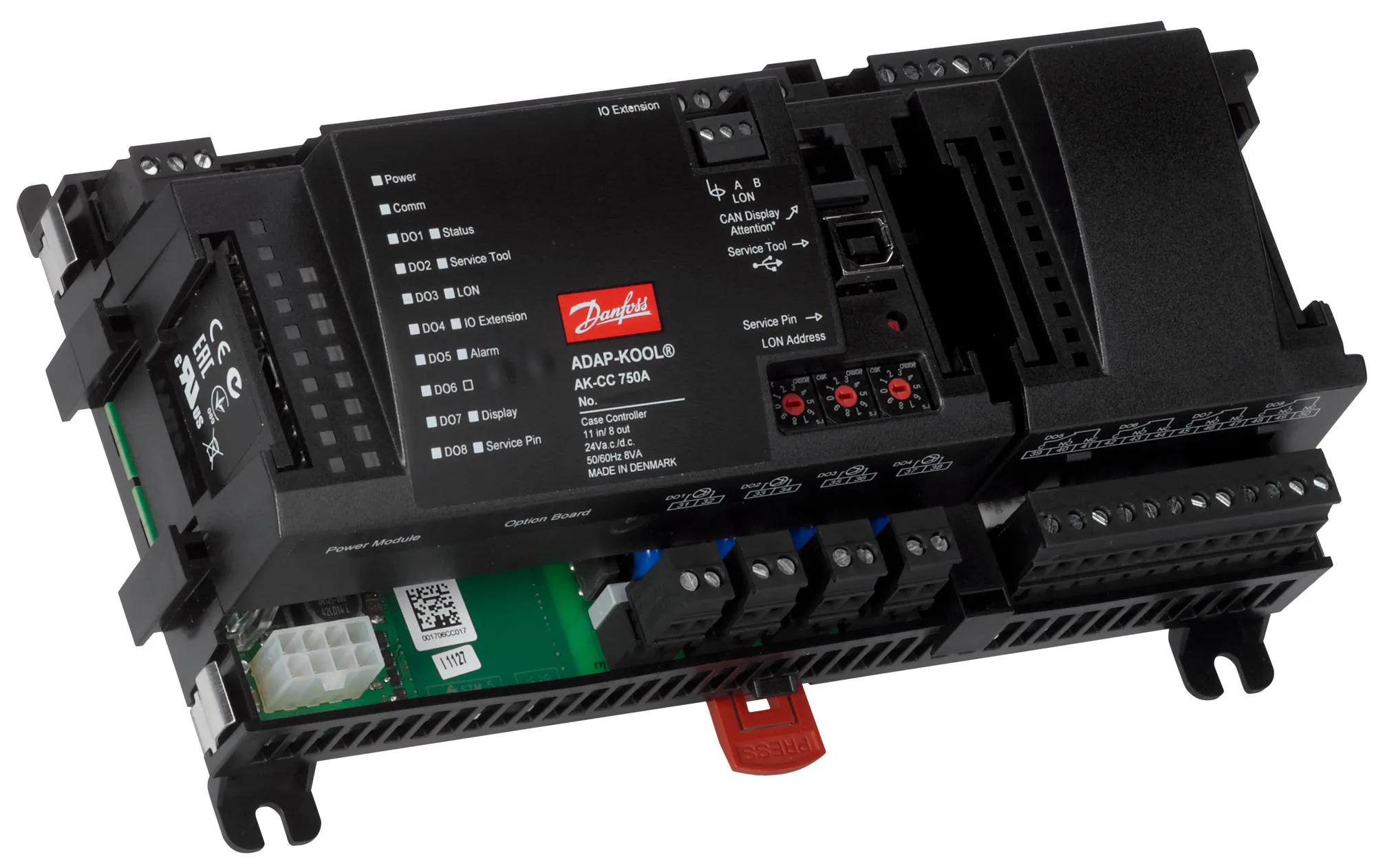

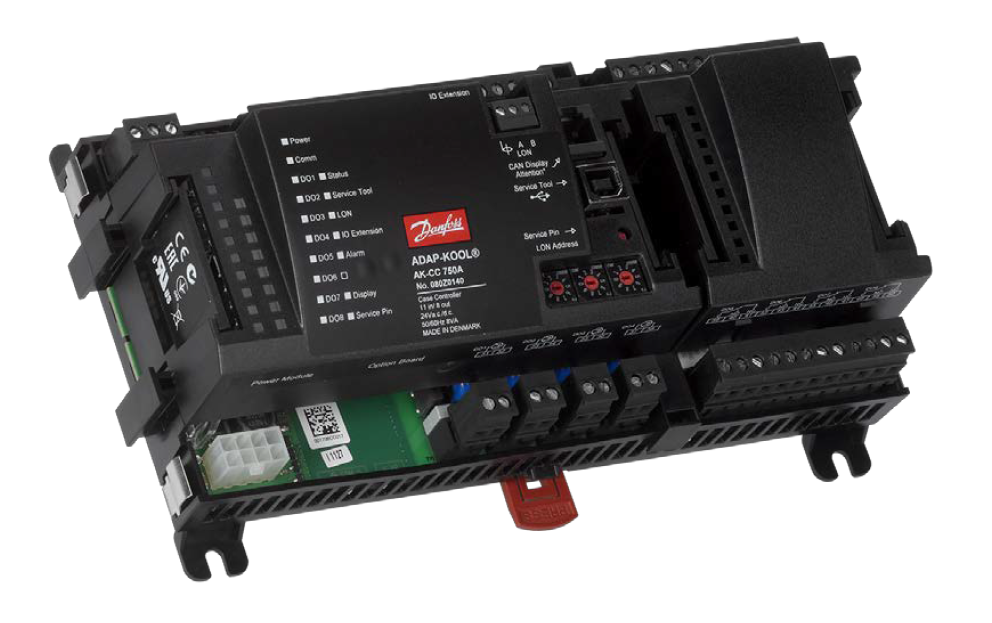

080Z0140 Danfoss: Application area: Refrigeration control, Function: 1-4 AKV(EEV), Flexible I/O, Communication type: IO Extension; RJ11 (CAN) to Display; LON RS485; USB-B to PC
Gross weight
0.951 Kilogram
Net weight
0.645 Kilogram
Volume
6.248 Liter
EAN
5702428992480
Addit. thermostats inputs max.
5 pc
Addit.press.switche inputs max
5 pc
Additional alarm inputs max.
10 pc
Additional analog inputs max.
5 pc
Analog inputs (AI) [pc]
11 pc
Application area
Refrigeration control
Approval
C-TICK,CE,EAC,LLC CDC TYSK,cURus
CE evaluated
Yes
Communication built-in
LON
Communication type
IO Extension,LON RS485,RJ11 (CAN) to Display,USB-B to PC
Controller type
Case/Room controller (4 AKV)
Digital outputs (DO) [pc]
8 pc
Display - option
EKA 163B,EKA 164B,MMIGRS2
Display on front
No
Division
25
Enclosure rating IP
IP10
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Function
1-4 AKV(EEV), Flexible I/O
I/O connectors max.
80 pc
No.of extention modules max.
11 pc
Number of Evaporators max.
4 pc
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
PFAS content [Yes/No]
No
Power consumption [VA]
8 VA
Press. Transmitter support
RATIOMETRIC
Product accessories
Electron. control accessories
Product group
Evaporator and room control
Product Language
Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Italian,Polish,Portuguese,Russian,Spanish
Product Name Description
Case/room controller (EEV)
Programming tools
AK-ST 500
Quantity per packing format
1 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Temp. sensor support
PTC 1000,Pt 1000
Type
AK-CC 750A
UK RoHS compliance
Out of scope
UL evaluated
Yes
Valve output type
AKV (EEV),ETS (EEV)
