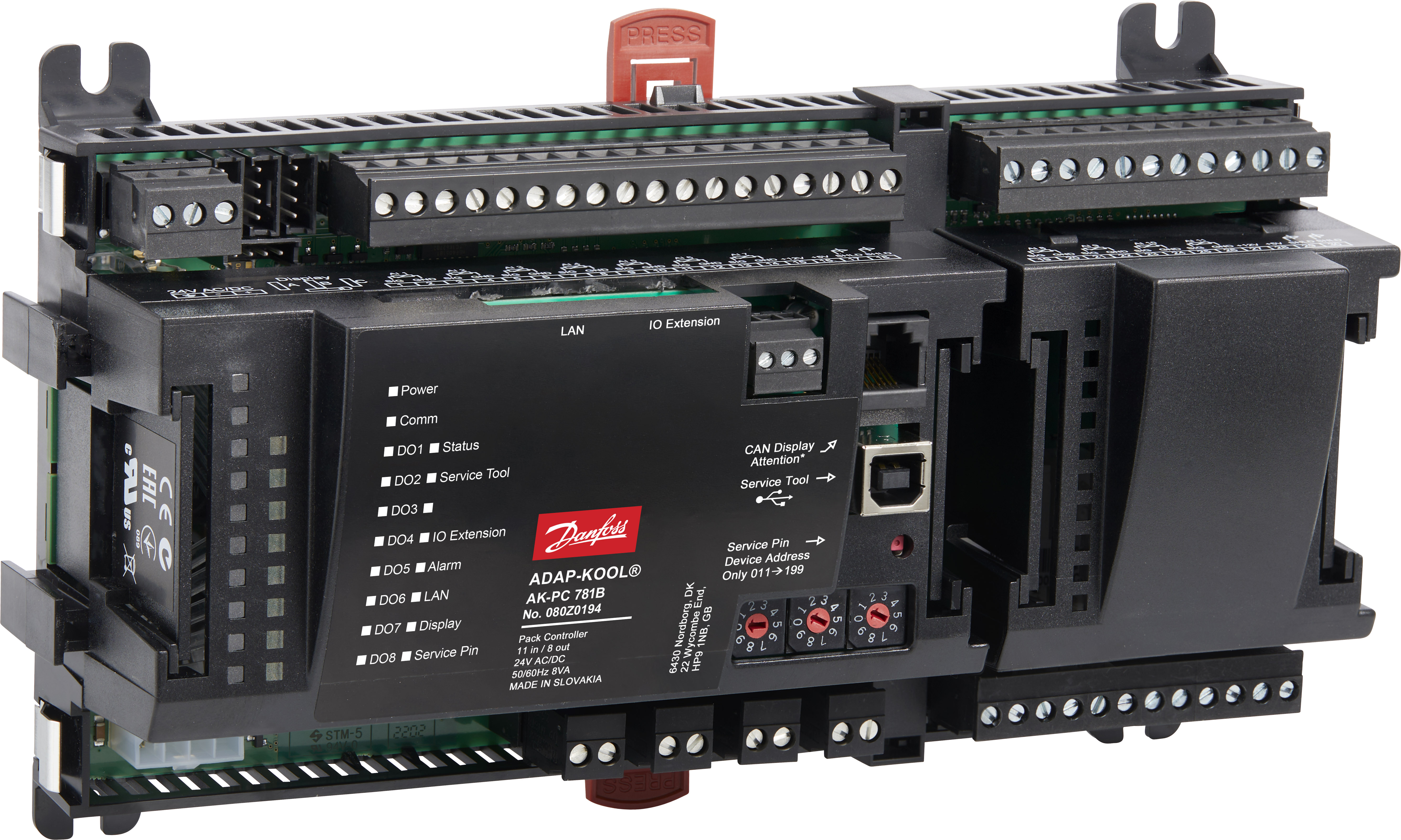

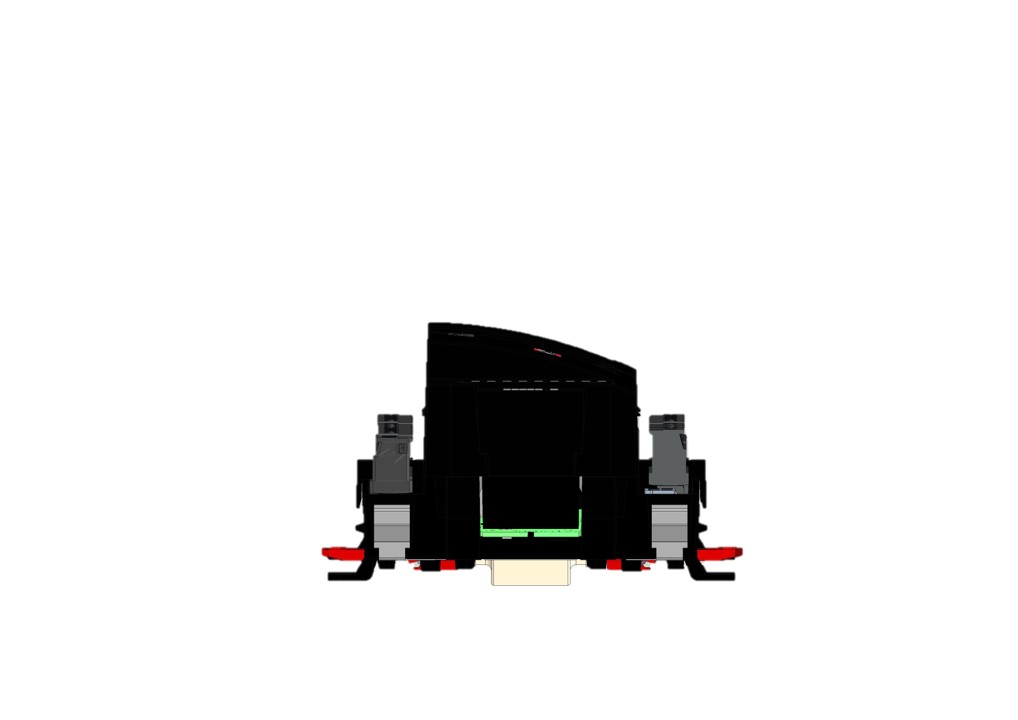

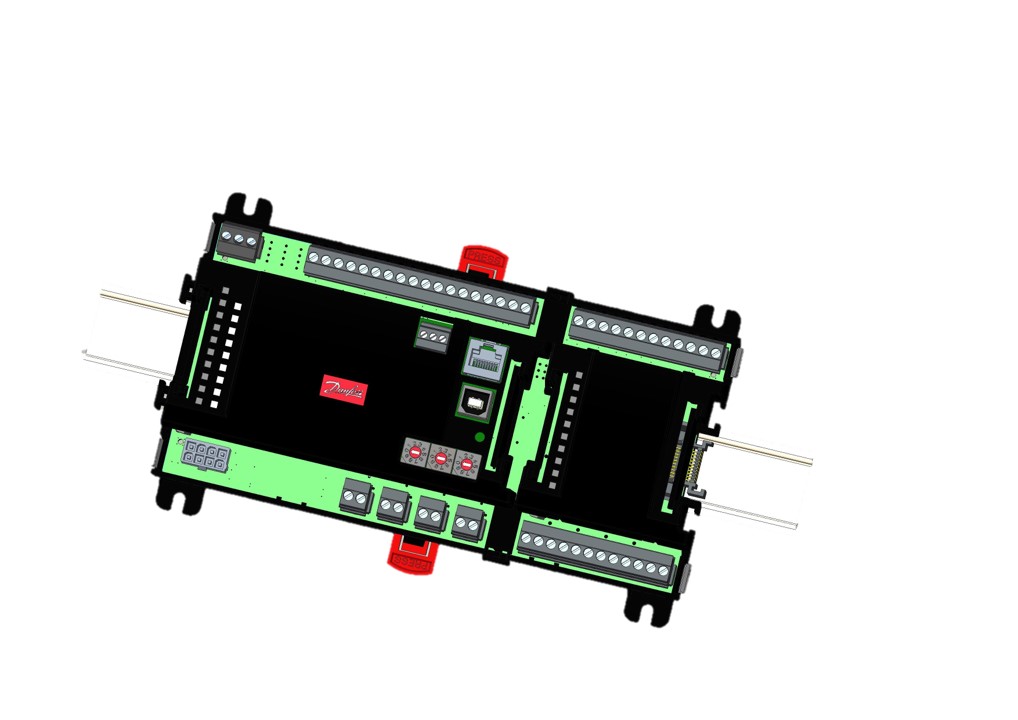

080Z0191

Part Number: 080Z0191
080Z0191
Manufacturer
Danfoss
Part number
080Z0191
Category

Product Information

Extended Description

080Z0191 Danfoss: Function: Pack w. Heat Reclaim, Supply voltage [V] AC: 24, Communication type: IO Extension; RJ11 (CAN) to Display; LON RS485; USB-B to PC, Packing format: Single pack, Quantity per packing format: 1
Gross weight
0.95 Kilogram
Net weight
0.645 Kilogram
Volume
5.68 Liter
EAN
5702428930550
Addit. thermostats inputs max.
5 pc
Addit.press.switche inputs max
5 pc
Additional alarm inputs max.
10 pc
Additional analog inputs max.
5 pc
Analog inputs (AI) [pc]
11 pc
Application area
Capacity control
Approval
C-TICK,CE,EAC,LLC CDC TYSK,cURus
Capacity control input
Pressure/ Temperature
Capacity control mode
PI
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
IO Extension,LON RS485,RJ11 (CAN) to Display,USB-B to PC
Compressor capacity mode
Step/ Speed
Condenser control type
Pressure/ Temperature
Controller type
Pack Controller
Digital outputs (DO) [pc]
8 pc
Display - option
EKA 163B,EKA 164B,EKA 166,MMIGRS2
Display on front
No
Division
25
Enclosure rating IP
IP10
EU RoHS compliance
Out of scope
Fan capacity control
Step/ Speed
Fan control mode
PI
Frequency [Hz]
50/60 Hz
Function
Pack w. Heat Reclaim
Further information
Transcri.,Speed,CO2,HP,Oil,HR
I/O connectors max.
120 pc
No.of compr. safty signals max
6 pc
No.of extention modules max.
11 pc
Number of Compressors max.
10 pc
Number of fans max.
8 pc
Oil management
Yes, with CO2
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
PFAS content [Yes/No]
No
Power consumption [VA]
8 VA
Product accessories
Electron. control accessories
Product features
CO2 compliant,Condenser error monitoring,External comm. included,Floating condenser pressure,Heat recovery function,Load shedding,Night setback,P0 optimization,Pump control,Three way valve control
Product group
Compressor/condenser control
Product Language
Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Italian,Polish,Portuguese,Russian,Spanish
Product Name Description
Pack controller
Programming tools
AK-ST 500
Quantity per packing format
1 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
AK-PC 781A
UK RoHS compliance
Out of scope
UL evaluated
Yes
080Z0008
I/O module, AK-XM 102A
080Z0017
I/O module, AK-XM 205B
080Z0053
Electron. control accessories, AK-PS 075, Accessory, Power Supply, Power Supply
084B7299
Electron. control accessories, Cable 6m, EKA displays, S/M-Pack, EKA 163 - 166
080G0294
Control panel, MMIGRS2
080G0076
Electron. control accessories, ACCCBI Cable Telephone U.I. 3m, MCX series
080Z0018
I/O module, AK-XM 204B
080Z0023
I/O module, AK-XM 208C
080Z0011
I/O module, AK-XM 204A
080Z0251
I/O and communication modules, AK-OB 110, Accessory, Analog output, I/O module
Overview brochure: Pack Controllers Supermarket Catalog 2020 Refrigerant constants, Antoine equation UK PSTI regulation for Pack Controllers and Extension Modules AK-PC 78xA IDCM Programming Capacity controller with heat recovery function AK-PC 781A. SW 1.4x. User guide Pack controller, type AK-PC 781A (SW Ver. 2.5x) Danfoss EU-UK 080R1206.05 Pack controllers Danfoss MD 080R1221.02 Danfoss MD 080R1237.01 Danfoss MD-UK 080R1228.04 AK-PC 781B, 080Z0194 AK_PC 783A AK_CC 750, STP AK_PC 783A
