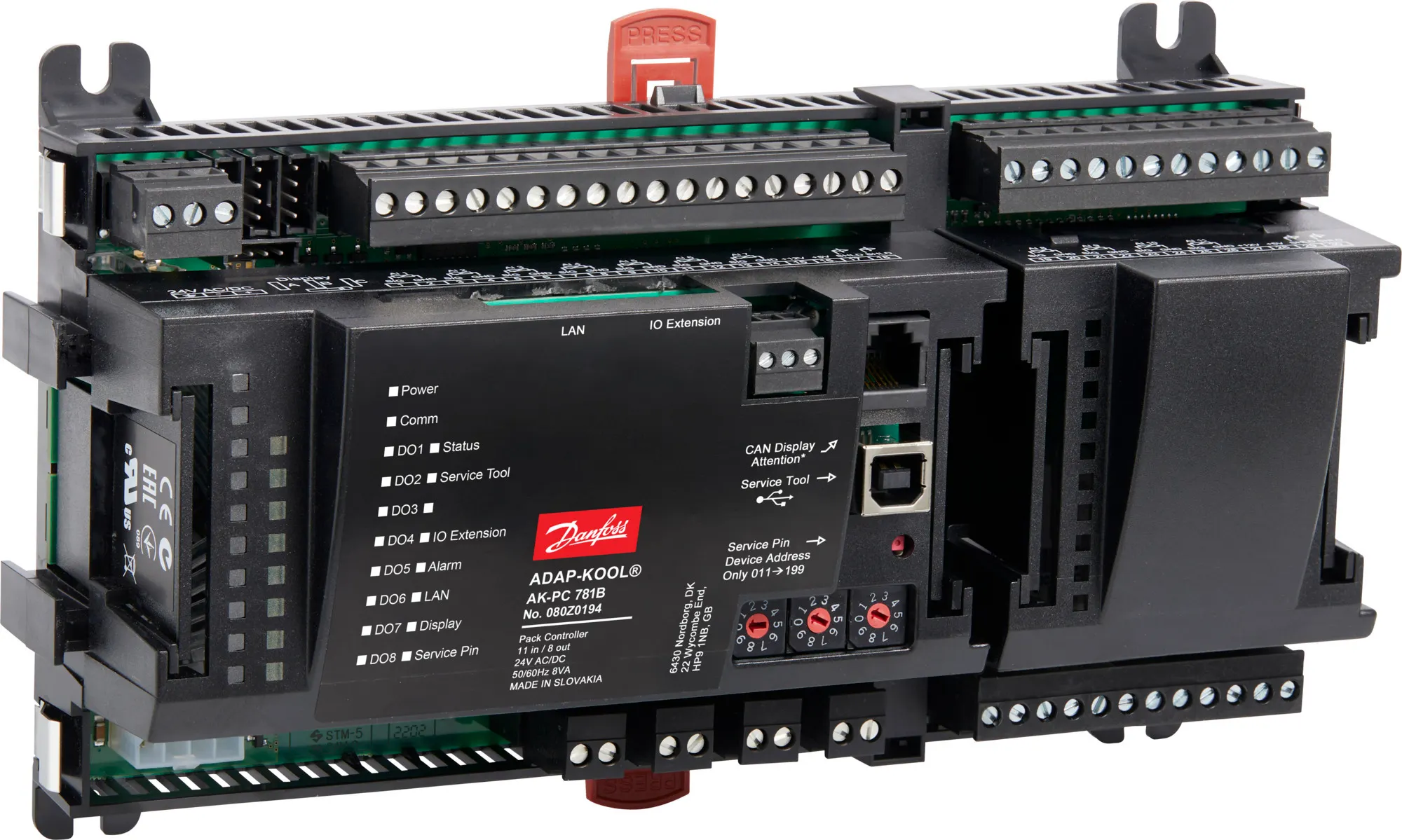

080Z0194

Part Number: 080Z0194
080Z0194
Manufacturer
Danfoss
Part number
080Z0194
Category

Product Information

Extended Description

080Z0194 Danfoss: Function: Pack w. Heat Reclaim, Supply voltage [V] AC: 24, Communication type: IO Extension; RJ11 (CAN) to Display; Ethernet IP RJ45; USB-B to PC, Packing format: Single pack, Quantity per packing format: 1
Gross weight
0.964 Kilogram
Net weight
0.645 Kilogram
Volume
6.248 Liter
EAN
5715162709221
Addit. thermostats inputs max.
5 pc
Addit.press.switche inputs max
5 pc
Additional alarm inputs max.
10 pc
Additional analog inputs max.
5 pc
Analog inputs (AI) [pc]
11 pc
Application area
Capacity control
Approval
C-TICK,CE,EAC,LLC CDC EURO-TYSK,cURus
Capacity control input
Pressure/ Temperature
Capacity control mode
PI
CE evaluated
Yes
Communication type
Ethernet IP RJ45,IO Extension,RJ11 (CAN) to Display,USB-B to PC
Compressor capacity mode
Step/ Speed
Condenser control type
Pressure/ Temperature
Controller type
Pack Controller
Digital outputs (DO) [pc]
8 pc
Display - option
EKA 163B,EKA 164B,EKA 166,MMIGRS2
Display on front
No
Enclosure rating IP
IP10
Fan capacity control
Step/ Speed
Fan control mode
PI
Frequency [Hz]
50/60 Hz
Function
Pack w. Heat Reclaim
Further information
Transcri.,Speed,CO2,HP,Oil,HR
I/O connectors max.
120 pc
No.of compr. safty signals max
6 pc
No.of extention modules max.
11 pc
Number of Compressors max.
10 pc
Number of fans max.
8 pc
Oil management
Yes, w. CO2
Packing format
Single pack
Power consumption [VA]
8 VA
Product accessories
Electron. control accessories
Product features
CO2 compliant,Condenser error monitoring,External comm. included,Floating condenser pressure,Heat recovery function,Load shedding,Night setback,P0 optimization,Pump control,Three way valve control
Product group
Compressor/condenser control
Product Language
Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Italian,Polish,Portuguese,Russian,Spanish
Product Name Description
Pack controller
Programming tools
AK-ST 500
Quantity per packing format
1 pc
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
AK-PC 781B
UL evaluated
Yes
Instructions Controller AK with USB-B Pack Controller, type AK-PC 781B with USB-B UK PSTI regulation for Pack Controllers and Extension Modules Remote Connection to AK-PC Pack Controller Pack controller, type AK-PC 781B (SW Ver. 2.5x) Pack controllers AK-PC 781B, 080Z0194
