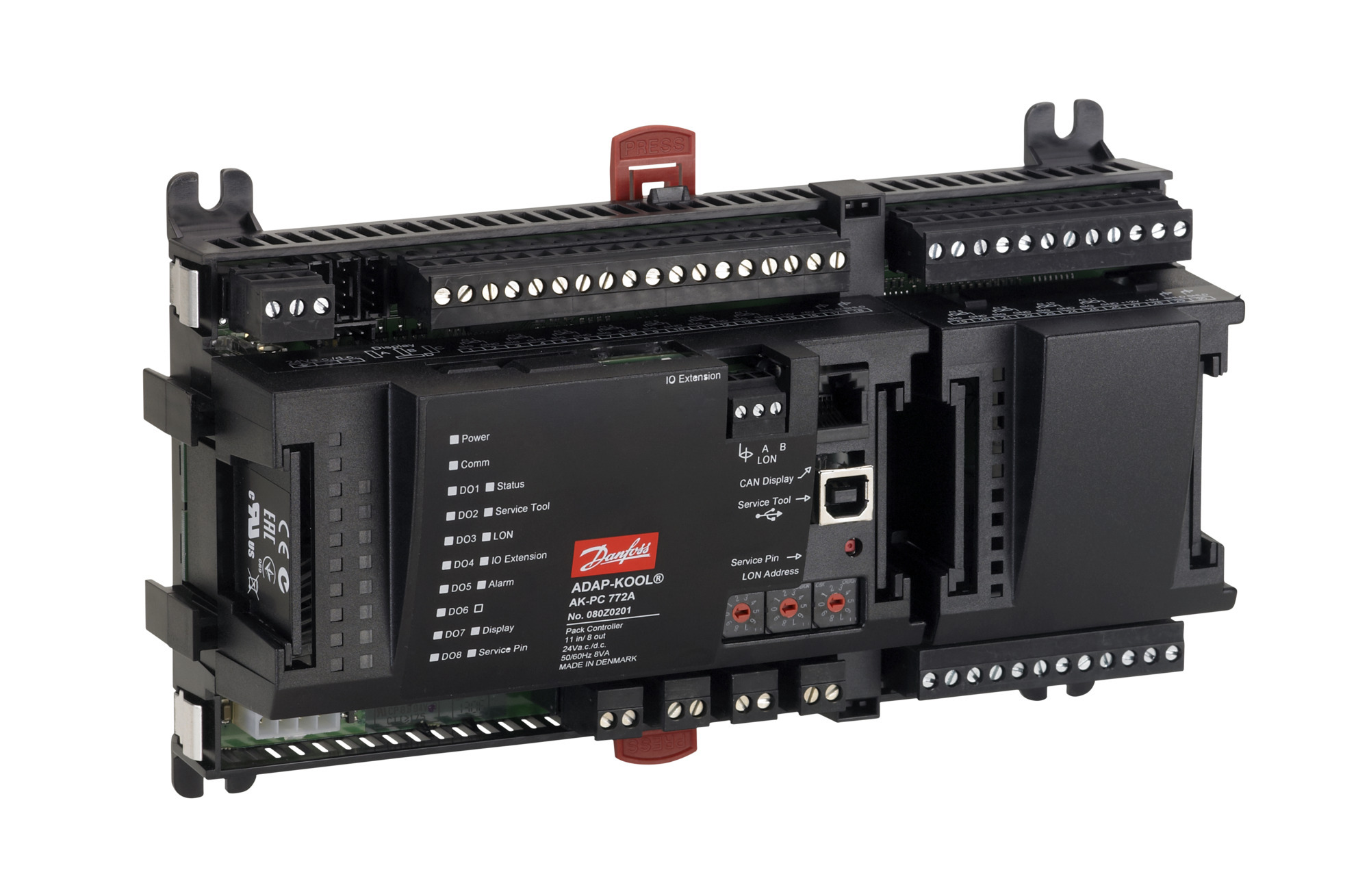

080Z0201

Part Number: 080Z0201
080Z0201
Manufacturer
Danfoss
Part number
080Z0201
Category

Product Information

Extended Description

080Z0201 Danfoss: Function: Transcritical mini Booster, Supply voltage [V] AC: 24, Communication type: RJ11 (CAN) to Display; RS232; LON RS485; USB-B to PC, Packing format: Single pack, Quantity per packing format: 1
Gross weight
0.953 Kilogram
Net weight
0.645 Kilogram
Volume
6.248 Liter
EAN
5702428939331
Addit. thermostats inputs max.
1 pc
Addit.press.switche inputs max
1 pc
Additional alarm inputs max.
10 pc
Additional analog inputs max.
1 pc
Additional PI Controls max.
1 pc
Analog inputs (AI) [pc]
11 pc
Application area
Capacity control
Approval
C-TICK,CE,EAC,LLC CDC TYSK,cURus
Capacity control input
Pressure
Capacity control mode
PI
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
LON RS485,RJ11 (CAN) to Display,RS232,USB-B to PC
Compressor capacity mode
Step/ Speed
Condenser control type
Temperature
Controller type
Pack Controller
Digital outputs (DO) [pc]
8 pc
Display - option
EKA 163B,EKA 164B,EKA 166,MMIGRS2
Display on front
No
Division
25
EU RoHS compliance
Out of scope
Fan capacity control
Step/ Speed
Fan control mode
PI
Frequency [Hz]
50/60 Hz
Function
Transcritical mini Booster
Further information
Transcri.,Speed,CO2,HP,HR
I/O connectors max.
120 pc
No.of compr. safty signals max
6 pc
No.of extention modules max.
11 pc
Number of Compressors max.
5 pc
Number of fans max.
4 pc
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
PFAS content [Yes/No]
No
Power consumption [VA]
8 VA
Product accessories
Electron. control accessories
Product features
CO2 compliant,External comm. included,Floating condenser pressure,Heat recovery function,Load shedding,Night setback,P0 optimization,Pump control
Product group
Compressor/condenser control
Product Language
Czech,Danish,Dutch,English,Finnish,French,German,Italian,Polish,Portuguese,Russian,Spanish
Product Name Description
Pack controller
Programming tools
AK-ST 500
Quantity per packing format
1 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
AK-PC 772A
UK RoHS compliance
Out of scope
UL evaluated
Yes
