080Z3226
Part Number: 080Z3226
Product Information
Extended Description
080Z3226 Danfoss: Function: Management of cold rooms, Supply voltage [V] AC: 400, Communication type: RS485 Modbus, Packing format: Single pack, Quantity per packing format: 1
Gross weight
7.95 Kilogram
Net weight
7.3 Kilogram
Volume
21.938 Liter
EAN
5702428669108
Application area
Condensing Unit
Approval
CE
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
RS485 Modbus
Controller type
Optyma Control. 3phase (7,5HP)
Display on front
Yes
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP65
Equipment
Incl. 2 sensors
Frequency [Hz]
50/60 Hz
Function
Management of cold rooms
Further information
Current range 5kW/ 11-16A
In scope of WEEE
Yes
Number of Compressors max.
1 pc
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
Power consumption [VA]
10 VA
Product group
Evaporator and room control
Product Name Description

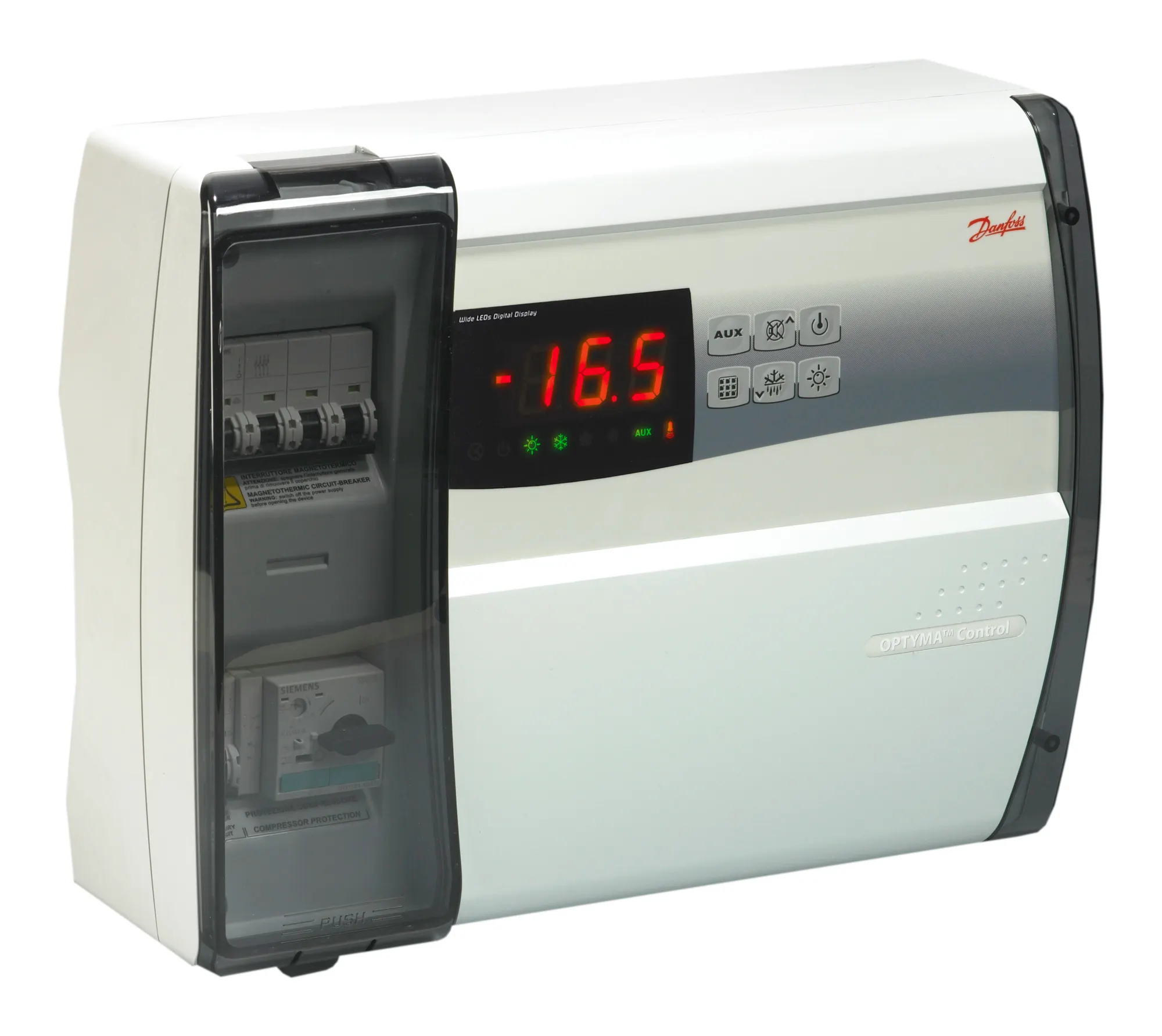

Cold storage room controller
Quantity per packing format
1 pc
Supply voltage [V] AC
400 V
Type
AK-RC113
Valve output type
(TXV)
Optyma™ Control AK-RC 111, AK-RC 113
Optyma Control flyer (AK-RC 204B, 205C, and 305W-SD type)
Optyma™ control AK-RC 113 three phase - User Guide
Danfoss EU-UK 084R0814.03
Cold room controllers
Danfoss MD 080R1251.01
Cold storage room controller, AK-RC113
OPTYMA Control, three-phase (4HP)_Panel Diagrams
OPTYMA Control, three-phase (7HP)_Panel Diagrams
