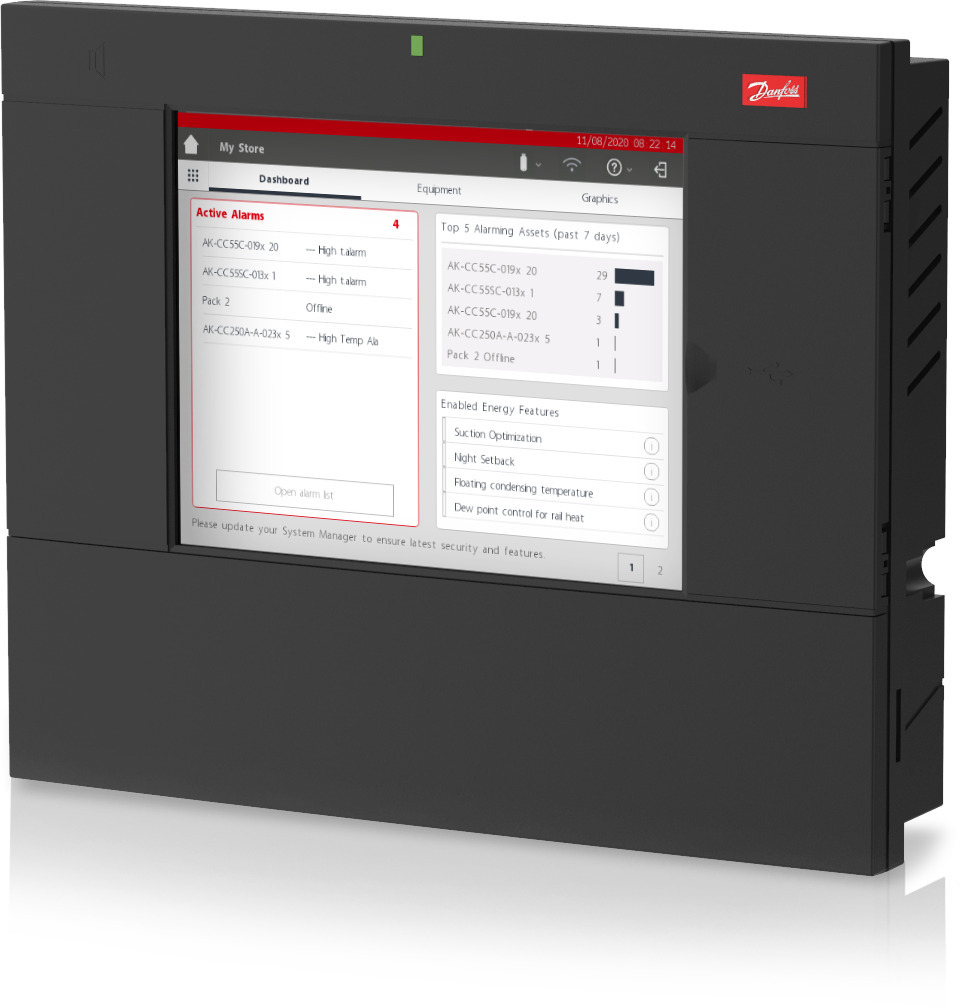

080Z4044
Part Number: 080Z4044
Product Information
Extended Description
080Z4044 Danfoss: Function: Data Collection, Monitor.unit, Application area: Convenience Store, Enclosure rating IP: IP20, Controller type: System manager
Gross weight
2.397 Kilogram
Net weight
1.725 Kilogram
Volume
11.246 Liter
EAN
5715162499009
Application area
Convenience Store
Approval
C UL US LISTED,C-TICK,CE
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
CANBUS,ETHER,MODBUS,RS485
Controller type
System Manager
Digital outputs (DO) [pc]
2 pc
Display on front
Yes
Enclosure rating IP
IP20
Frequency [Hz]
50/60 Hz
Function
Data Collection, Monitor.unit
Further information
w. Display & touchscreen
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
Product group
Supervisory solutions
Product Language
Chinese,Czech,Danish,Dutch,English,French,German,Hungarian,Italian,Polish,Portuguese,Russian,Spanish
Product Name Description
System manager
Quantity per packing format
1 pc
Supply voltage [V] AC [max]
240 V
Supply voltage [V] AC [min]
100 V
Type
AK-SM 820A
UL evaluated
Yes
AK-SC 255 / SM 800 to AK-SM 800A conversion
Control food safety applying HACCP
Cool Thinking - System Manager AK-SM 800 series, AK-EM 800
Overview brochure: System Managers (NAM)
SiteService App for mobile diagnostics and service
System Manager 800 series. Cool Thinking from Danfoss
System manager, type AK-SM 800A series
Communications between controllers and AK-SM 800A
080Z2167 Humidity Transducer - installation guide
OAB-1 Office Alarm Box - installation guide
Danfoss EU-UK 080R1231.01
Danfoss EU-UK 080R1236.01
UL E31024
AK-SM 800/800A SYSTEM MANAGERS
Danfoss MD 080R1221.02
Danfoss MD 080R1244.00
ICASA TA-20210214
Danfoss UK 080R1236.00
ACMA CF14616_AU-Rev.00
ANATEL 03477-21-10104
AK-SM800A_Green-light-Left-View-with-shadow
AK-SM 800A, SWV

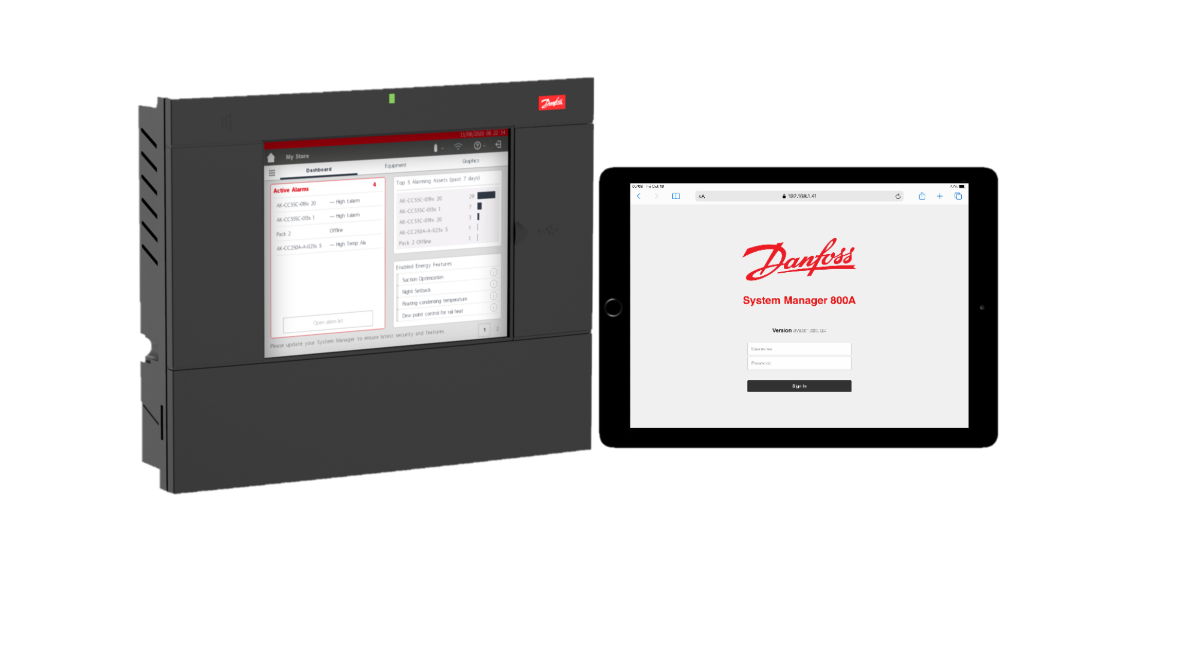

AK-SM 800A, IPAD
AK-SM800A_Green-light-Right-View-with-shadow
