082G5413
Part Number: 082G5413
Product Information
Extended Description

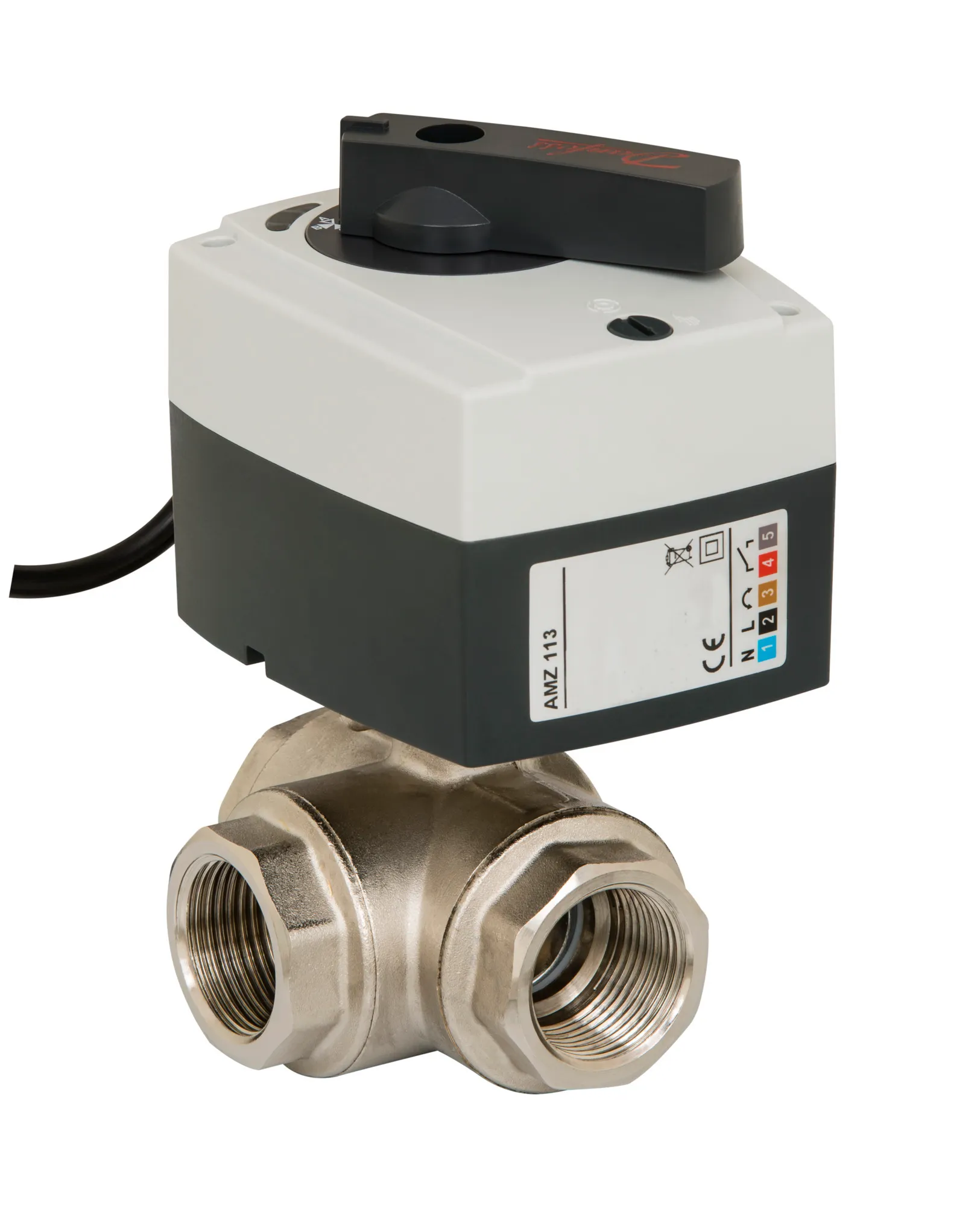

082G5413 Danfoss: AMZ 113 ON/OFF 3-w int th 24V DN20
Gross weight
1.572 Kilogram
Net weight
1.416 Kilogram
Volume
4 Liter
EAN
5710104079967
Application
Domestic and commercial central heating
Application alternative VSP
Solar energy plants
China RoHS compliance
Out of scope
Closing differential pressure (diverting) [bar] [Max]
6 bar
Closing differential pressure (mixing) [bar] [Max]
6 bar
Connection size
Rp 3/4
Connection types
Internal thread
Contain batteries
No
Description
AMZ 113 ON/OFF 3-w int th 24V DN20
Diameter [mm]
20 mm
EU RoHS compliance
Yes with exemptions
Kvs values [mÂł/h]
8.3 mÂł/h
Media temperature [°C] [Max]
110 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Medium alternative 2
Glycolic water up to 50%
Mounting version
Free
Number of ports
3
Operating torque [Nm]
10 N-m
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
40 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9fa32728-1915-421d-86bc-7b5cdc83b5fe
SCIP dossier product name
082G5413
Spindle position
None
Type
AMZ 113
UK RoHS compliance
Out of scope
Valve ball material
CW 614 N UNI EN 12164
Valve body material
CW 617 N UNI EN 12165
Valve size
DN 20
Valve stem material
CW 614 N UNI EN 12164
082G1635
AUX switch ring AMZ 5 pcs
082G1636
AMZ Junction box 24V
082G1637
Spare actuator for AMZ112/113
082G1639
Linkage kit AMZ 112/113
