082G5414
Part Number: 082G5414
Product Information
Extended Description

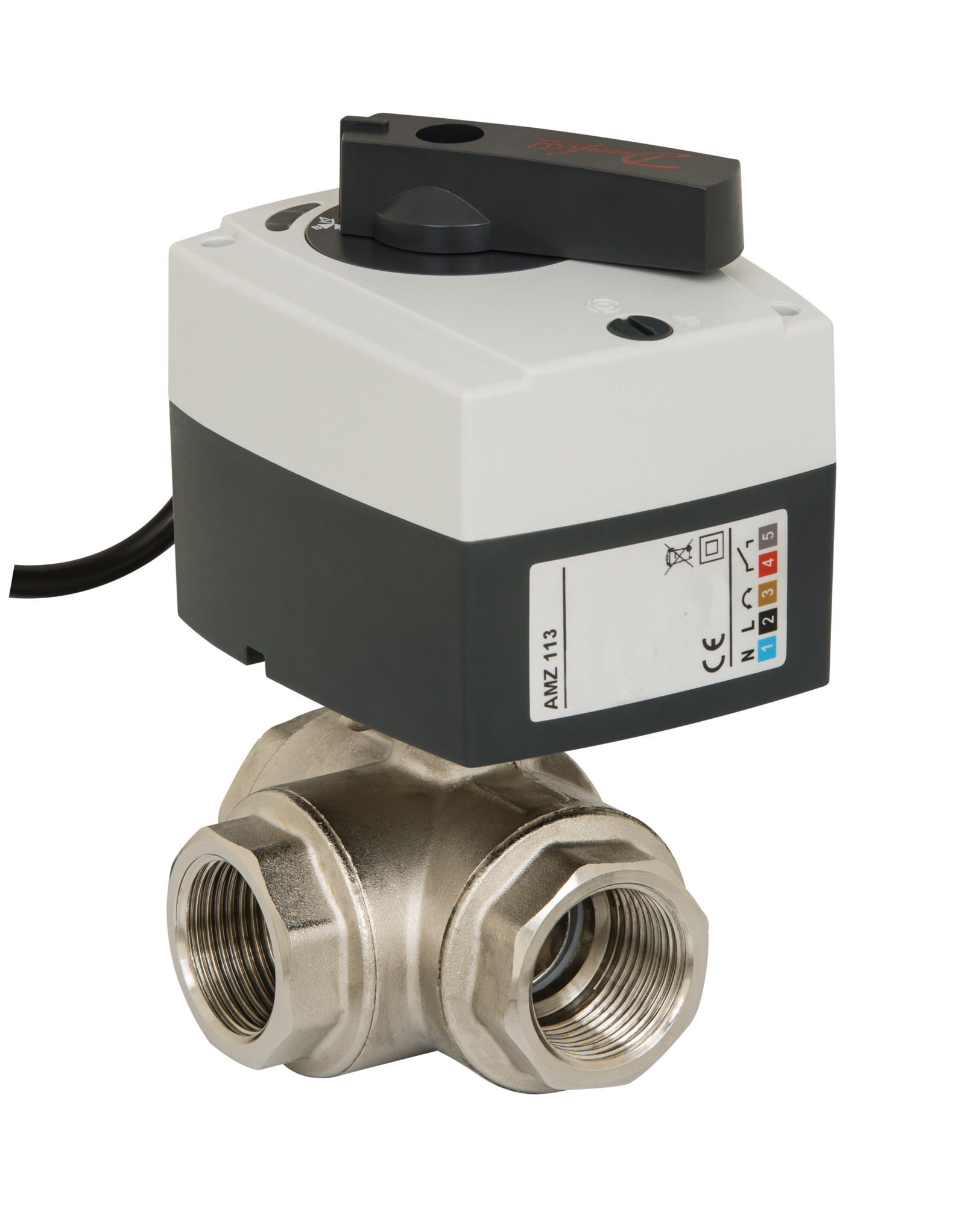

082G5414 Danfoss: AMZ 113 ON/OFF 3-w int th 24V DN25
Gross weight
2.04 Kilogram
Net weight
1.913 Kilogram
Volume
3.807 Liter
EAN
5710104079981
Application
Domestic and commercial central heating
Application alternative VSP
Solar energy plants
China RoHS compliance
Out of scope
Closing differential pressure (diverting) [bar] [Max]
6 bar
Closing differential pressure (mixing) [bar] [Max]
6 bar
Connection size
Rp 1
Connection types
Internal thread
Contain batteries
No
Description
AMZ 113 ON/OFF 3-w int th 24V DN25
Diameter [mm]
25 mm
EU RoHS compliance
Yes with exemptions
Kvs values [mÂł/h]
13 mÂł/h
Media temperature [°C] [Max]
110 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Medium alternative 2
Glycolic water up to 50%
Mounting version
Free
Number of ports
3
Operating torque [Nm]
10 N-m
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
40 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9fa32728-1915-421d-86bc-7b5cdc83b5fe
SCIP dossier product name
082G5414
Spindle position
None
Type
AMZ 113
UK RoHS compliance
Out of scope
Valve ball material
CW 614 N UNI EN 12164
Valve body material
CW 617 N UNI EN 12165
Valve size
DN 25
Valve stem material
CW 614 N UNI EN 12164
082G1635
AUX switch ring AMZ 5 pcs
082G1636
AMZ Junction box 24V
082G1637
Spare actuator for AMZ112/113
082G1639
Linkage kit AMZ 112/113
Making applications future proof, all our knowledge – is now yours
Valve characteristics for motorized valves
Motorized Control Valves for district heating & cooling, heating and HVAC systems
AMZ 112 / AMZ 113
AMZ 112/113
Danfoss EU 220621EN0802102.01
Danfoss UK 221011en0814101.01
3-way zone valve AMZ 113, DN 25
AMZ 113_DN15-32_RFA
