082G5421
Part Number: 082G5421
Product Information
Extended Description

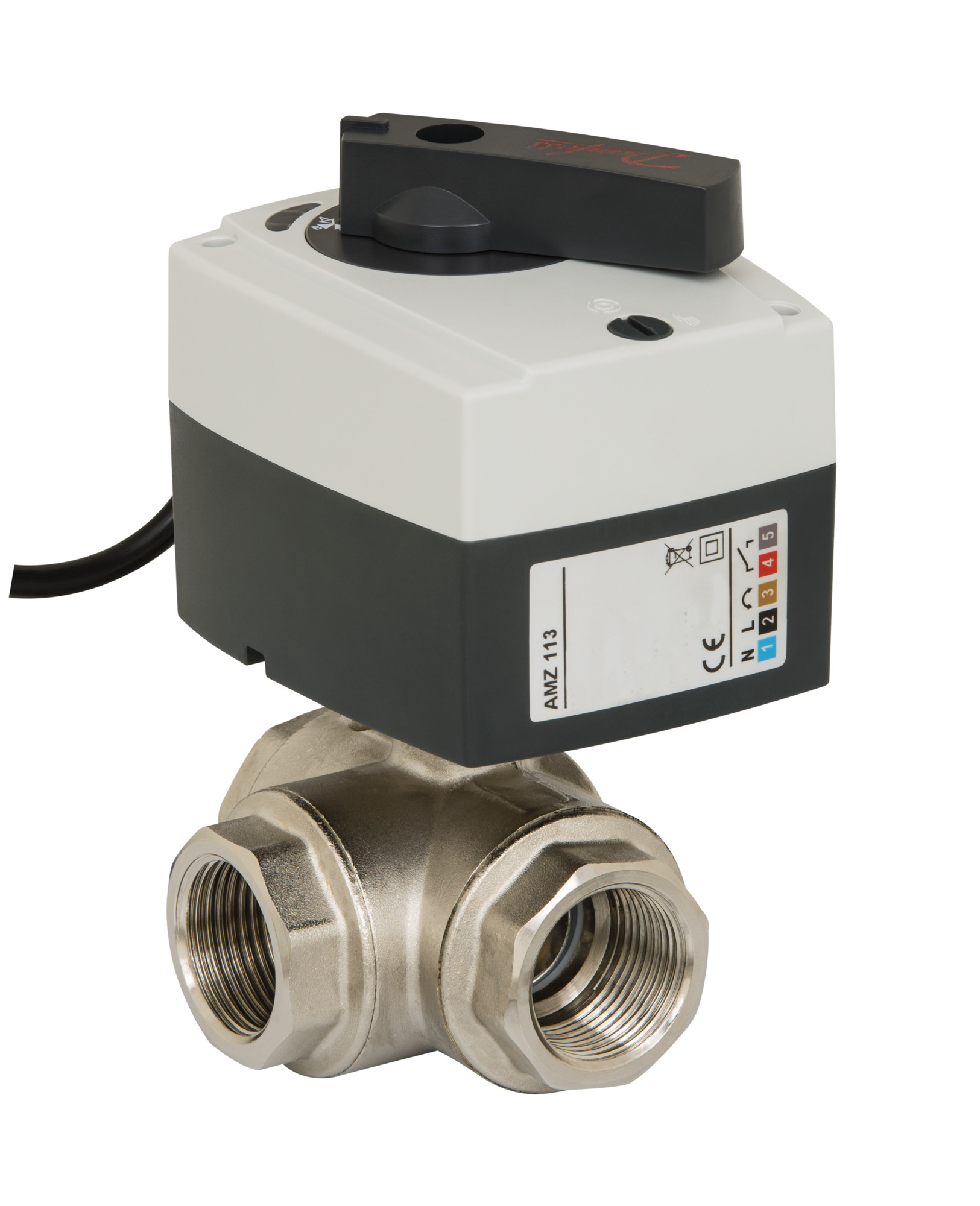

082G5421 Danfoss: AMZ 113 ON/OFF 3-wint th 230V DN32
Gross weight
3.713 Kilogram
Net weight
3.674 Kilogram
Volume
3.925 Liter
EAN
5710104080109
Application
Domestic and commercial central heating
Application alternative VSP
Solar energy plants
China RoHS compliance
Out of scope
Closing differential pressure (diverting) [bar] [Max]
6 bar
Closing differential pressure (mixing) [bar] [Max]
6 bar
Connection size
Rp 1 1/4
Connection types
Internal thread
Contain batteries
No
Description
AMZ 113 ON/OFF 3-wint th 230V DN32
Diameter [mm]
32 mm
EU RoHS compliance
Yes with exemptions
Kvs values [mÂł/h]
21 mÂł/h
Media temperature [°C] [Max]
110 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Medium alternative 2
Glycolic water up to 50%
Mounting version
Free
Number of ports
3
Operating torque [Nm]
15 N-m
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
40 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9fa32728-1915-421d-86bc-7b5cdc83b5fe
SCIP dossier product name
082G5421
Spindle position
None
Type
AMZ 113
UK RoHS compliance
Out of scope
Valve ball material
CW 614 N UNI EN 12164
Valve body material
CW 617 N UNI EN 12165
Valve size
DN 32
Valve stem material
CW 614 N UNI EN 12164
082G1635
AUX switch ring AMZ 5 pcs
082G1638
Spare actuator for AMZ112/113
082G1639
Linkage kit AMZ 112/113
