082G5427
Part Number: 082G5427
Product Information
Extended Description

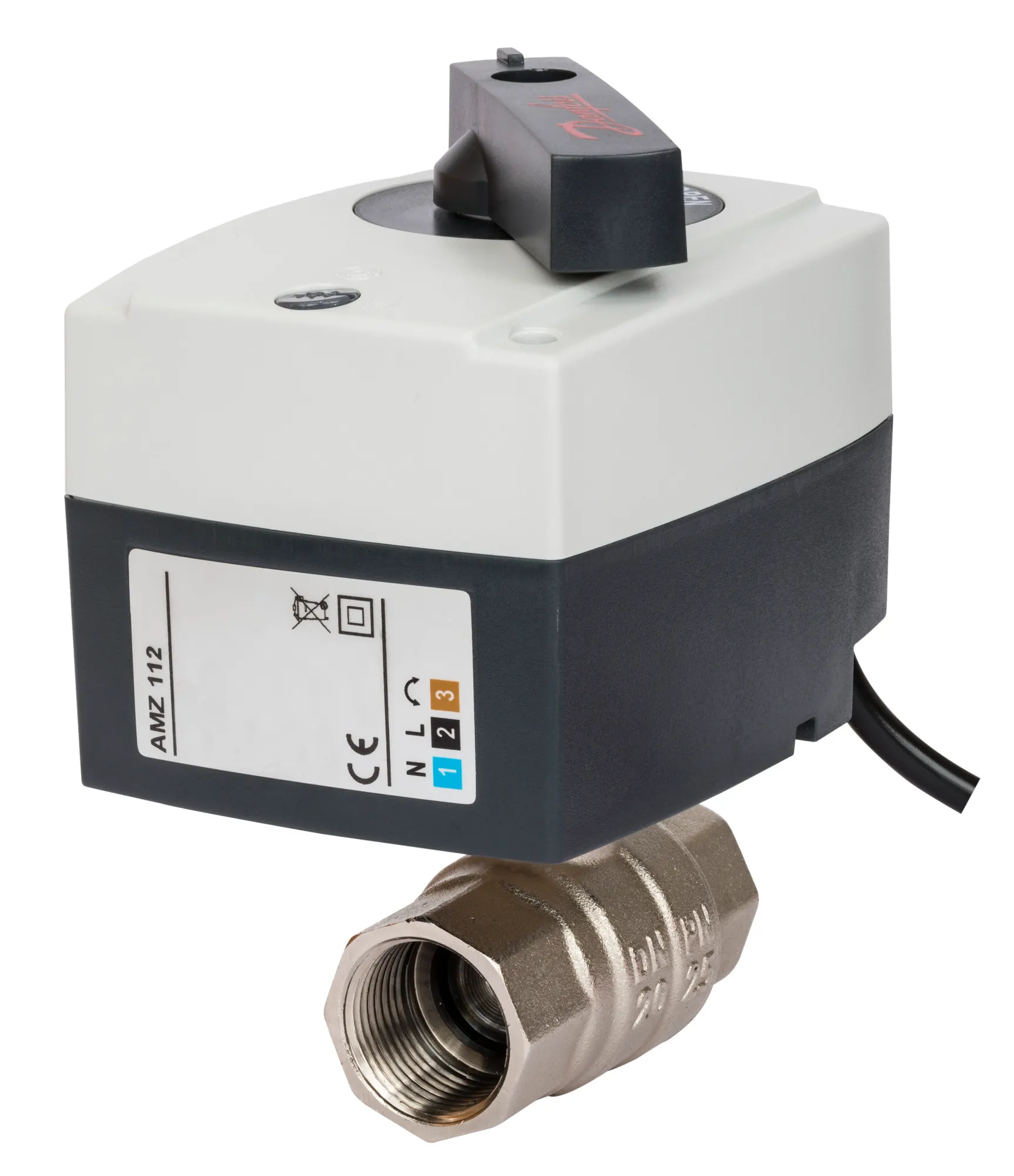

082G5427 Danfoss: AMZ 112 ON/OFF CU22 24V DN20
Gross weight
1.338 Kilogram
Net weight
1.064 Kilogram
Volume
3.84 Liter
EAN
5710104080307
Application
Domestic and commercial central heating
Application alternative VSP
Solar energy plants
Closing differential pressure (diverting) [bar] [Max]
6 bar
Closing differential pressure (mixing) [bar] [Max]
6 bar
Connection size
Cu-Cu 22
Connection types
Internal thread
Description
AMZ 112 ON/OFF CU22 24V DN20
Diameter [mm]
20 mm
EU RoHS compliance
Yes with exemptions
Kvs values [mÂł/h]
28 mÂł/h
Media temperature [°C] [Max]
110 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Circulation water
Medium alternative 2
Glycolic water up to 50%
Mounting version
Free
Number of ports
2
Operating torque [Nm]
5 N-m
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
40 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
9fa32728-1915-421d-86bc-7b5cdc83b5fe
Spindle position
None
Type
AMZ 112
Valve ball material
CW 614 N UNI EN 12164
Valve body material
CW 617 N UNI EN 12165
Valve stem material
CW 614 N UNI EN 12164
082G1635
AUX switch ring AMZ 5 pcs
082G1636
AMZ Junction box 24V
082G1637
Spare actuator for AMZ112/113
082G1639
Linkage kit AMZ 112/113
Making applications future proof, all our knowledge – is now yours
Valve characteristics for motorized valves
Motorized Control Valves for district heating & cooling, heating and HVAC systems
Compact design. Easy installation saves precious time
AMZ 112 / AMZ 113
AMZ 112/113
Danfoss EU 220621EN0802102.01
Danfoss UK 221011en0814101.01
2-way on/off zone valve type AMZ 112, DN 20
AMZ 112_DN20_STEP
AMZ 112_DN20_3D
AMZ 112_DN20_2D
