082H0050

Part Number: 082H0050
082H0050
Manufacturer
Danfoss
Part number
082H0050
Category

Product Information

Extended Description

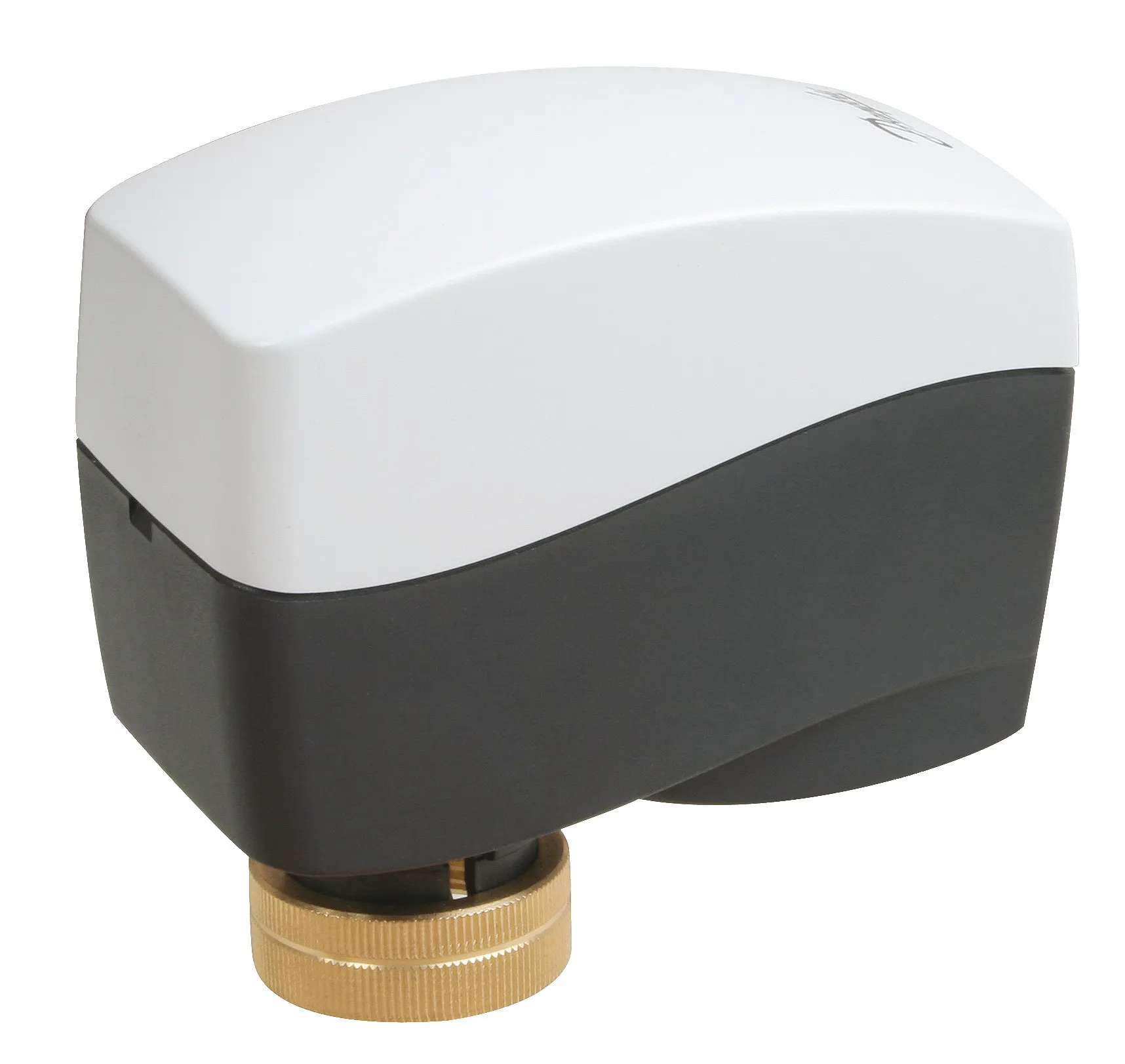

082H0050 Danfoss: AMV 130 230V 24s/mm 5,5mm 200N 0.5m I-P
Gross weight
0.286 Kilogram
Net weight
0.286 Kilogram
Volume
1.19 Liter
Actuator speed [s/mm]
24 s/mm
Actuator type
Electrical
Ambient temperature [=C2=B0C] [max]
55 =C2=B0C
Ambient temperature [=C2=B0C] [min]
0 =C2=B0C
Application
zone
China RoHS compliance
Out of scope
Closing force [N]
200 N
Contain batteries
No
Control signal type
3-point
Description
AMV 130 230V 24s/mm 5,5mm 200N 0.5m I-P
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Frequency [Hz]
50/60
Grade of enclosure
IP54
Position feedback
no - potentiometer needed
Product group
Gear actuators
Protection Class of the Coating
II
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Safety function
No
SCIP dossier no.
5941c580-cf9b-456d-b3c6-52adde56771d
SCIP dossier product name
AMV (E) 130 - 150
Speed type
Standard
Spring down (return)
No
Spring up
No
Storage temperature [=C2=B0C] [Max]
70 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-40 =C2=B0C
Stroke [mm]
5 mm
Supply voltage [V] AC
230 V
Type
AMV 130
UK RoHS compliance
Out of scope
Infographic - Actuator selection for AB-QM PICVs Save energy with efficient and safe steam distribution Compact design. Easy installation saves precious time AB-QM=E2=84=A2 Interactive Quick Select Guide AMV 130, AMV 140, AMV 130 H, AMV 140 H AMV 130, AMV 140, AMV 130 H, AMV 140 H AMV 130, AMV 140, AMV 130 H, AMV 140 H Danfoss EU 221011EN0815101.03 Gear and Thermal actuators Electrical actuator type AMV 130 VZL4_DN15-20_AMV(E) 130_140 (X)_RFA VZ3_DN15-20_AMV(E) 130_140 (X)_RFA VZ4_DN15-20_AMV(E) 130_140 (X)_RFA VZ2_DN15-20_AMV(E) 130_140 (X)_RFA VZL3_DN15-20_AMV(E) 130_140 (X)_RFA VZL2_DN15-20_AMV(E) 130_140 (X)_RFA AMV 130_230V_0.5m_IP_082H0050_IFC AMV(E) 130_140 (X)_RFA
