082H0237

Part Number: 082H0237
082H0237
Manufacturer
Danfoss
Part number
082H0237
Category

Product Information

Extended Description

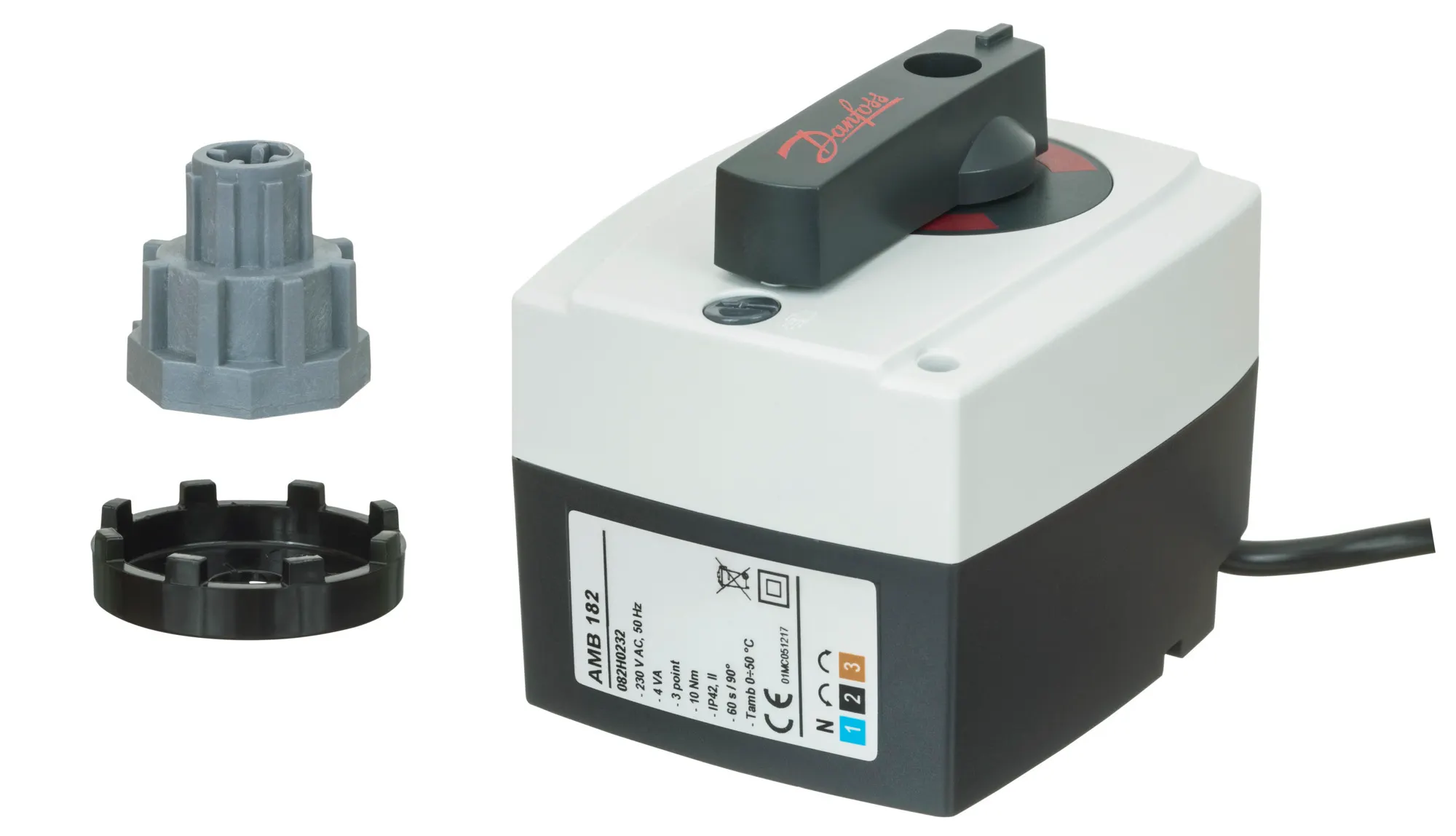

082H0237 Danfoss: AMB 182 15Nm 3p 60s 230V
Gross weight
0.75 Kilogram
Net weight
0.68 Kilogram
Volume
2.007 Liter
EAN
5710104078045
Actuator speed [s/°]
60 s/°
Actuator type
Electrical
Ambient temperature [°C] [max]
50 °C
Ambient temperature [°C] [min]
0 °C
Application
temperature control in central heating
China RoHS compliance
Out of scope
Contain batteries
No
Control signal type
3-point
Description
AMB 182 15Nm 3p 60s 230V
Frequency [Hz]
50/60
Grade of enclosure
IP42
Manual operation
Yes
Operating torque [Nm]
15 N-m
Power consumption [W]
4 W
Product group
Gear actuators
Protection Class of the Coating
II
REACH Candidate List substances
No
Rotation angle [°]
90 °
Safety function
No
Speed type
Standard
Spindle speed [s/mm]
60 s/mm
Spring down (return)
No
Spring up
No
Storage temperature [°C] [Max]
80 °C
Storage temperature [°C] [Min]
-10 °C
Supply voltage [V] AC
230 V
Type
AMB 182
UK RoHS compliance
Out of scope
Infographic - Actuator selection for AB-QM PICVs AB-QM™ Interactive Quick Select Guide AMB 162 /182 Danfoss EU 220621EN0802102.01 Gear and Thermal actuators Electrical actuator type AMB 182 for rotary valves HRE3_DN20-50_AMB 162(182)_RFA HRB4_DN15-50_AMB 162(182)_RFA AMB 162(182)_RFA HRE4_DN20-50_AMB 162(182)_RFA HFE3_DN20-150_AMB 162(182)_RFA HRB3_DN15-50_AMB 162(182)_RFA AMB 162(182)_STEP AMB 162(182)_3D AMB 162(182)_2D
