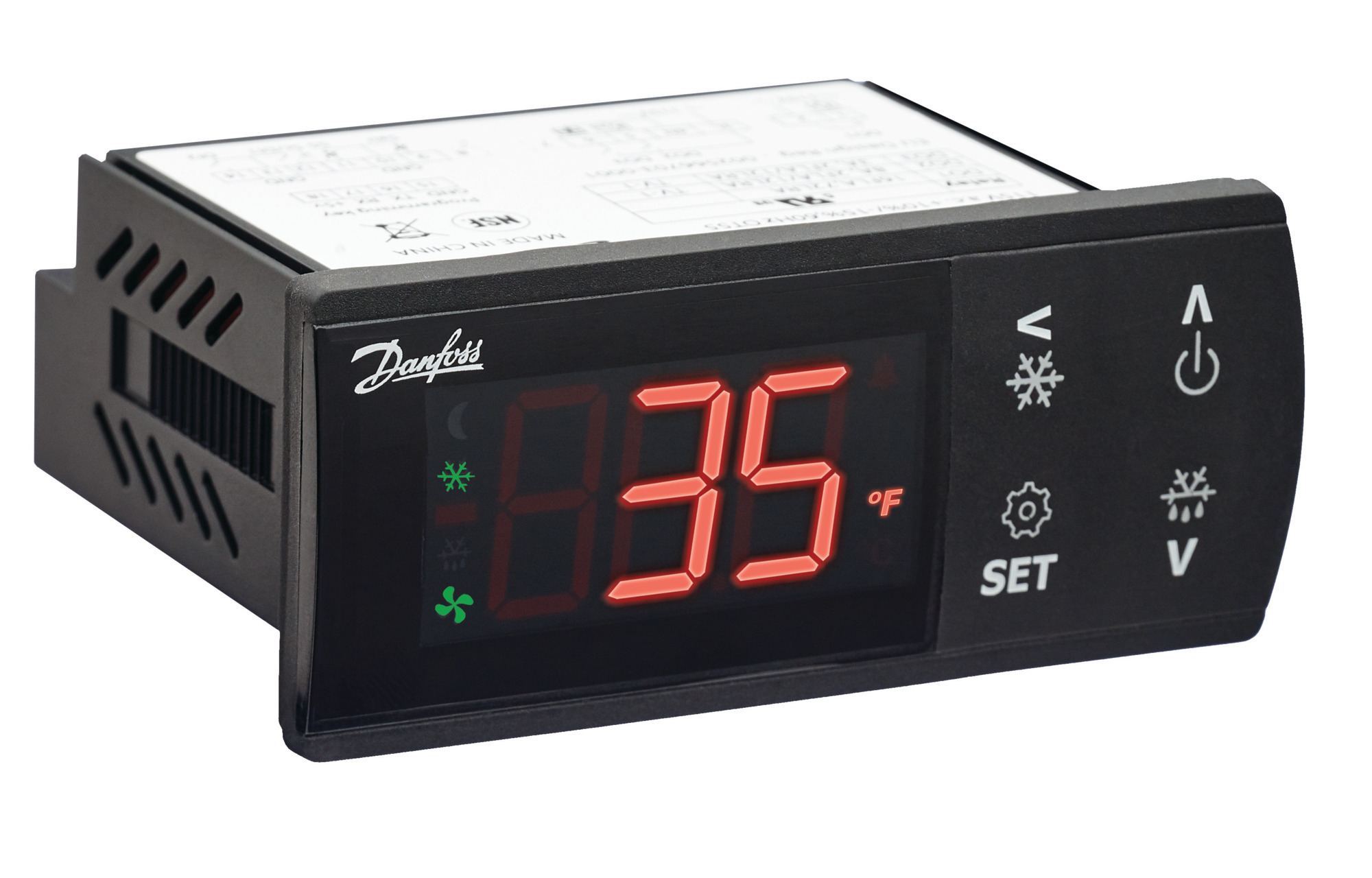

084B4055

Part Number: 084B4055
084B4055
Manufacturer
Danfoss
Part number
084B4055
Category

Product Information

Extended Description

084B4055 Danfoss: Function: Comp.,Defrost,Fan,Alarm,More f, Controller type: Refrig. Controller (Temp), Communication type: MODBUS via. EKA 206, Packing format: Single pack, Quantity per packing format: 20
Gross weight
221 Gram
Net weight
169 Gram
Volume
0.486 Liter
EAN
5715162688786
Analog inputs (AI) [pc]
3 pc
Application area
Temperature control
Approval
UL
Communication type
MODBUS via. EKA 206
Controller type
Refrig. Controller (Temp)
Digital inputs (DI) [pc]
2 pc
Digital outputs (DO) [pc]
4 pc
Display on front
Yes
Division
25
EEE category
5 small equipment (any external dimension 50 cm)
Frequency [Hz]
60 Hz
Function
Comp.,Defrost,Fan,Alarm,More f
Further information
Alarm= Light or Railheat
Identical product
084B4155
In scope of WEEE
Yes
Number of Compressors max.
1 pc
Number of Sensor inputs
3 pc
Packing format
Single pack
PFAS content [Yes/No]
No
Power consumption [VA]
0.7 VA
Product accessories
Electron. control accessories
Product group
Evaporator and room control
Product Name Description
Refrig appliance control (TXV)
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
SCIP dossier no.
2c9550d9-2fd2-41c8-91e9-8b1b0d9c639d
SCIP dossier product name
ERC21x, EKC 22x
Sensor type
EKS 111, 211, 221, AKS 12, 21
Serviceable
No
Supply voltage [V] AC
115 V
Temp. sensor support
NTC 5000,NTC10000,PTC 990,Pt 1000
Type
EKC 224
UL evaluated
Yes
Detailed overview of ADAP-KOOL™ Case Controllers EKC 202x vs EKC 22x and ERC 21x vs EKC 22x Case controller, type EKC 224 UK PSTI regulation for Danfoss Case controllers Case controller, type EKC 223 and EKC 224 Danfoss EU-UK 080R3908.07 Refrigeration appliance control (TXV) ERC 211 - 214, EKC 223 - 224 EKC 223 - 223
