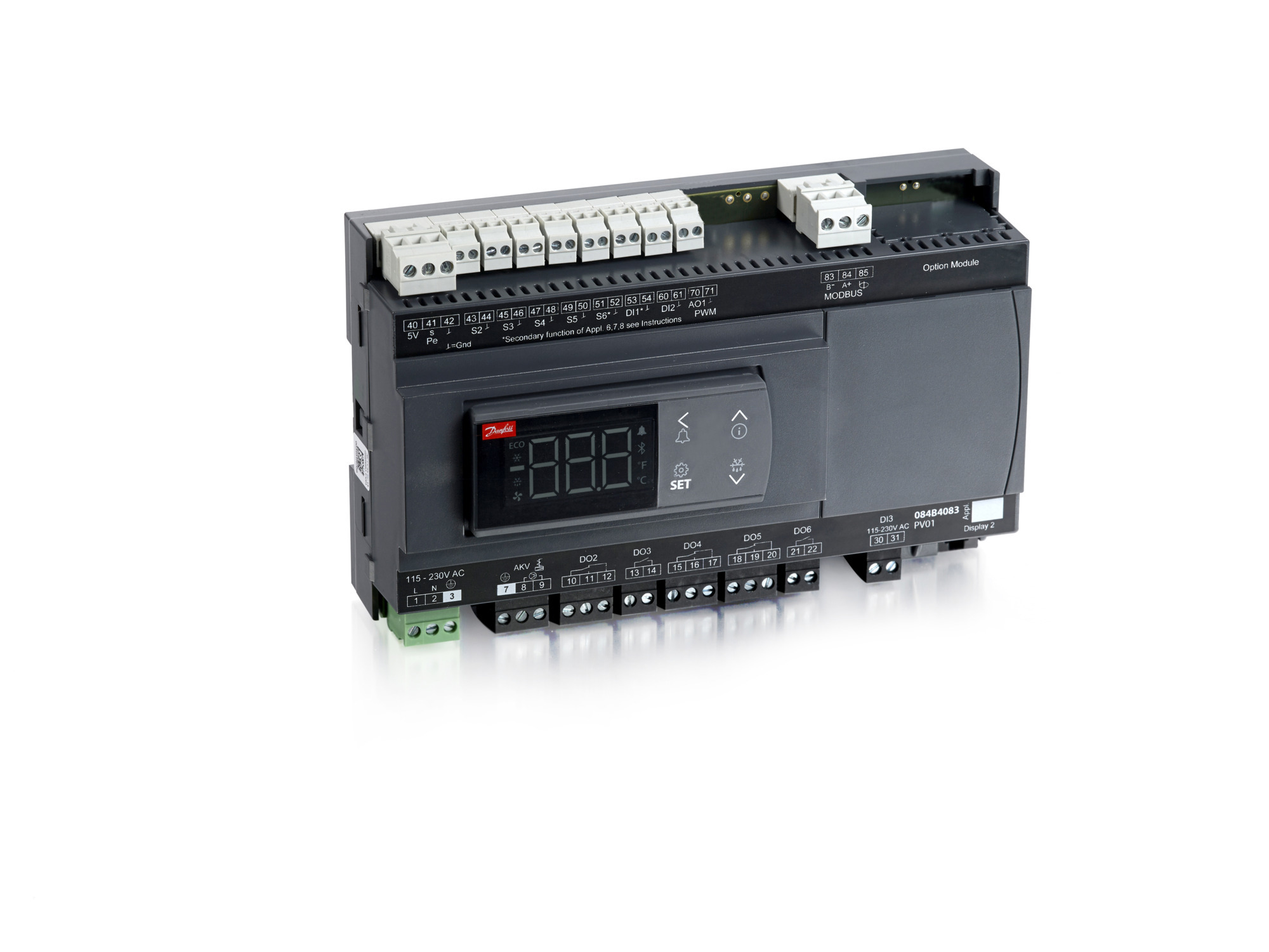

084B4057
Part Number: 084B4057
Product Information
Extended Description
084B4057 Danfoss: Function: AKV, Pe, 5 Relays, Display, Product features: S2 Injection control; CO2 compliant; Pe Signal, Communication type: MODBUS; Optional LON, Packing format: Multi pack, Quantity per packing format: 10
Gross weight
532 Gram
Net weight
350 Gram
Volume
2.003 Liter
EAN
5715162508008
Analog inputs (AI) [pc]
6 pc
Analog outputs (AO) [pc]
1 pc
Application area
Refrigeration control
Approval
C-TICK,CE
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication built-in
MODBUS
Communication card option
LON RS485
Communication type
MODBUS,Optional LON
Controller type
Case Contr. Single Coil w. Dis
Digital inputs (DI) [pc]
3 pc
Digital outputs (DO) [pc]
6 pc
Display on front
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Function
AKV, Pe, 5 Relays, Display
Identical product
084B4157
In scope of WEEE
Yes
Number of Evaporators max.
1 pc
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
5 VA
Press. Transmitter support
RATIOMETRIC
Product features
CO2 compliant,Pe Signal,S2 Injection control
Product group
Evaporator and room control
Product Name Description
Case/room controller (EEV)
Quantity per packing format
10 pc
Sensor connection
SCREW TERMINAL
Supply voltage [V] AC [max]
230 V
Supply voltage [V] AC [min]
115 V
Temp. sensor support
NTC 5000,NTC10000,PTC 1000,Pt 1000
Type
AK-CC55 Single Coil UI
UK RoHS compliance
Out of scope
Valve output type
AKV
084B4086
Communication module, AK-OB55 Modbus TCP/IP
ADAP-KOOL Evaporator Controllers
Case/room controller (EEV), type AK-CC55
AK-CC55 case controller compatibility
Detailed overview of ADAP-KOOL™ Case Controllers
AK-OB55 Modbus TCP/IP, communication module
Case/room controller (EEV), type AK-CC55 Single Coil
UK PSTI regulation for Danfoss Case controllers
Control of stepper motor valves with AK-CC55 Single Coil, EKE 1P and EKE 2U
Basic Modbus parameter list, AK-CC55 Single Coil (SW Ver. 1.7x)
Case/room controller (EEV) Type AK-CC55 Single Coil UI (Locked Software), SW Ver. 1.6x
CB US-35091-M1-UL
ACMA CF13198_AU-Rev.00
Danfoss EU-UK 084R0835.AB
Case/room controller (EEV)
Danfoss MD 080R1237.01
AK-CC55 Single Coil UI C Contr. S/M-Pack
AK-CC55 Single Coil UI with packaging and connectors
