084B4058
Part Number: 084B4058
Product Information
Extended Description

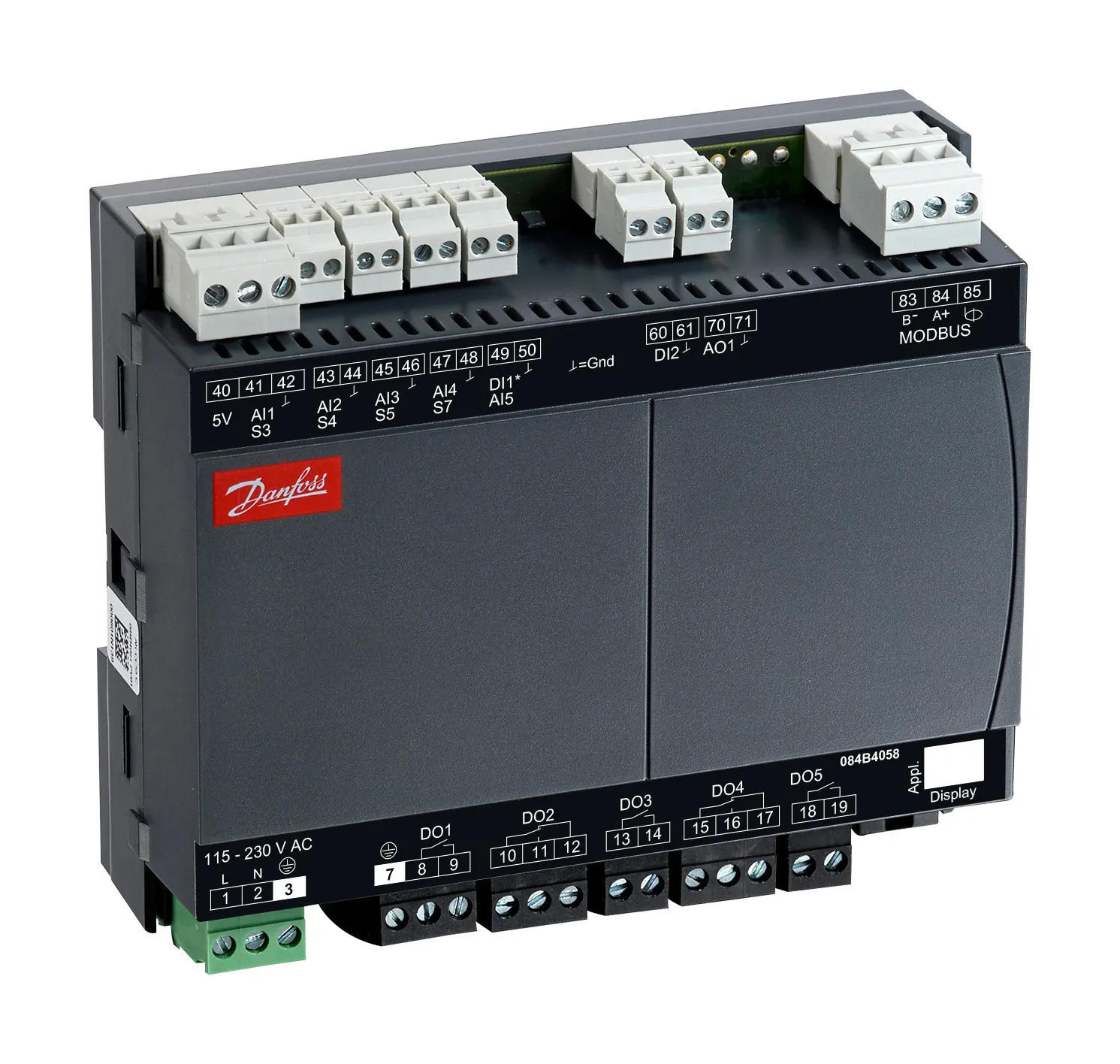

084B4058 Danfoss: Function: 5 Relays, Semi/ Plug-in, Communication type: MODBUS, Packing format: Multi pack, Quantity per packing format: 10
Gross weight
0.402 Kilogram
Net weight
0.23 Kilogram
Volume
2.003 Liter
EAN
5715162507995
Analog inputs (AI) [pc]
5 pc
Analog outputs (AO) [pc]
1 pc
Application area
Refrigeration control
Approval
CE,CMIM,EAC,RCM,UA,cURus
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication built-in
MODBUS
Communication type
MODBUS
Controller type
Case Contr. Water Loop
Digital inputs (DI) [pc]
1 pc
Digital outputs (DO) [pc]
5 pc
Display - option
AK-UI55
Display on front
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
5 Relays, Semi/ Plug-in
Identical product
084B4158
In scope of WEEE
Yes
Number of Compressors max.
2 pc
Number of Evaporators max.
1 pc
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
5 VA
Product features
Alarm management,Alarm output,Bus communication,Compressor safety,Condenser error monitoring,Defrost Sequence,Manual operation,Night setback,Pump control,Quick setup,Real time clock,Remote display option,S3 - Return air,S4 - Discharge air,S5 - Defrost termination,SPDT relays,Service mode,Additional thermostat alarm,Coordinated defrost SM,Coordinated defrost hardwired,Thermostat function,Weighted sensor
Product group
Evaporator and room control
Product Name Description
Case/room controller (TXV)
Quantity per packing format
10 pc
Sensor connection
Screw terminals
Supply voltage [V] AC
230 V
Temp. sensor support
NTC 5000,NTC10000,PTC 1000,Pt 1000
Type
AK-CC55 Water Loop
UK RoHS compliance
Out of scope
UL evaluated
Yes
084B4075
AK-UI55 Bluetooth
084B4076
AK-UI55 Set
084B4077
AK-UI55 Info
084B4078
Electron. control accessories, AK-UI55 3m Cable M-Pack
084B4079
Electron. control accessories, AK-UI55 6m Cable M-Pack
084B4099
Electron. control accessories, AK-UI55 Mounting Base S/M-pac
084B4193
AK-UI55 Bluetooth
084B4194
AK-UI55 Set
084B4195
AK-UI55 Info
084B4196
Electron. control accessories, AK-UI55 3m Cable I-Pack, AK-UI55
Detailed overview of ADAP-KOOL™ Case Controllers
AK-CC55 Water Loop
UK PSTI regulation for Danfoss Case controllers
Basic Modbus parameter list, AK-CC55 Water Loop
Case controller for semi plug-in, type AK-CC55 Water Loop (SW Ver. 1.2x)
The secret behind Danfoss adaptive defrost - Whitepaper
CB US-35091-M1-UL
Danfoss EU-UK 084R0835.AB
Case/room controller (EEV)
Danfoss MD 080R1237.01
Case/room controller (EEV), AK-CC55 Water Loop
