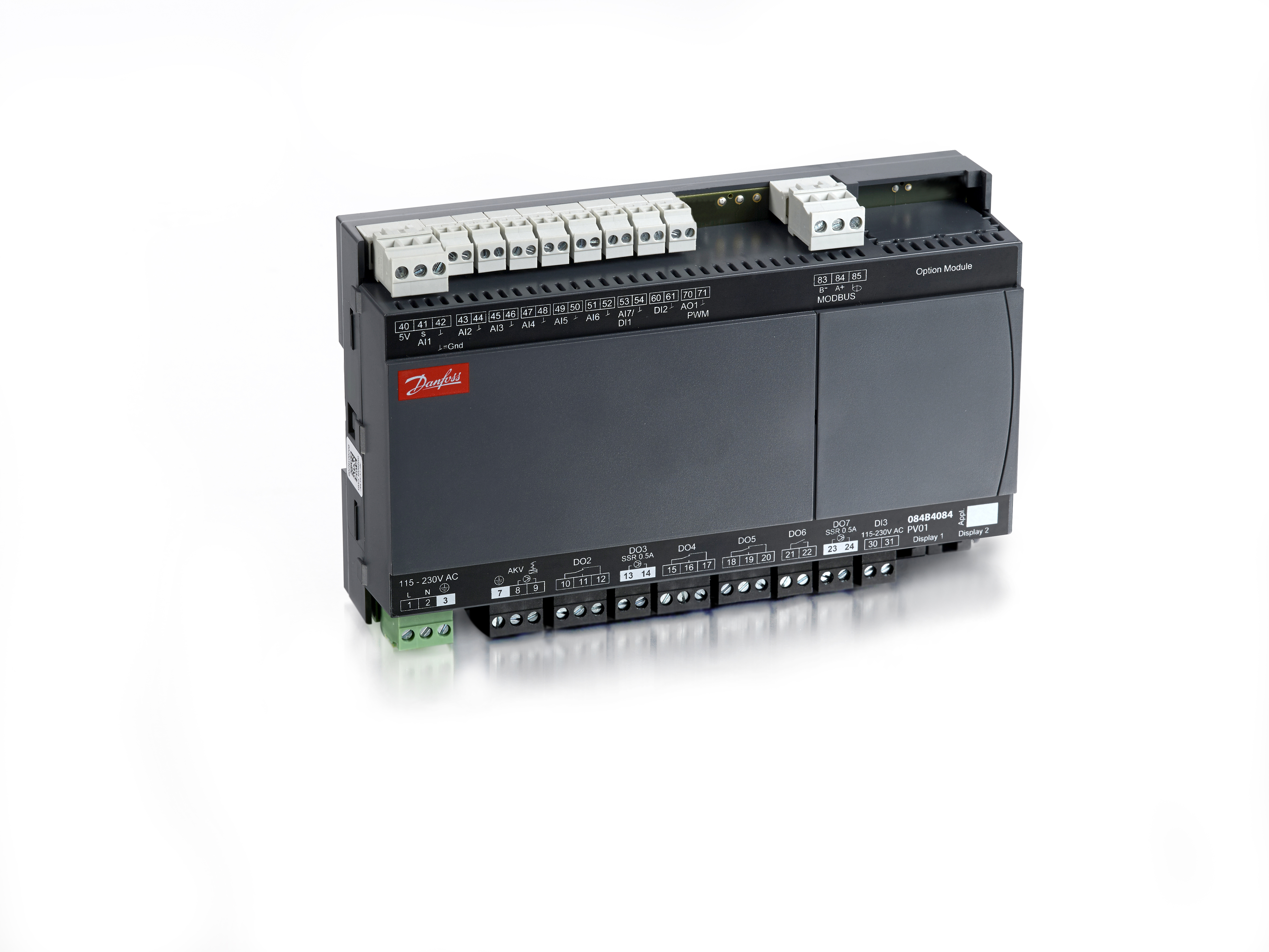

084B4084

Part Number: 084B4084
Manufacturer
Danfoss
Part number
084B4084
Category

Product Information

Extended Description

084B4084 Danfoss: Function: 3xAKV, Pe, 4 Relays, Product features: S2 Injection control; CO2 compliant; Pe Signal, Communication type: MODBUS; Optional LON, Packing format: Multi pack, Quantity per packing format: 10
Gross weight
484 Gram
Net weight
317 Gram
Volume
2.003 Liter
EAN
5702428523646
Analog inputs (AI) [pc]
7 pc
Analog outputs (AO) [pc]
1 pc
Application area
Refrigeration control
Approval
C-TICK,CE
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication built-in
MODBUS
Communication card option
LON RS485
Communication type
MODBUS,Optional LON
Controller type
Case Contr. Multie Coil
Digital inputs (DI) [pc]
2 pc
Digital outputs (DO) [pc]
7 pc
Display on front
No
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
3xAKV, Pe, 4 Relays
Identical product
084B4184
In scope of WEEE
Yes
Number of Evaporators max.
3 pc
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
5 VA
Press. Transmitter support
RATIOMETRIC
Product features
CO2 compliant,Pe Signal,S2 Injection control
Product group
Evaporator and room control
Product Name Description
Case/room controller (EEV)
Quantity per packing format
10 pc
Sensor connection
Screw terminals
Supply voltage [V] AC [max]
230 V
Supply voltage [V] AC [min]
115 V
Temp. sensor support
NTC 5000,NTC10000,PTC 1000,Pt 1000
Type
AK-CC55 Multi Coil
UK RoHS compliance
Out of scope
Valve output type
AKV
084B4075
AK-UI55 Bluetooth
084B4076
AK-UI55 Set
084B4077
AK-UI55 Info
084B4078
Electron. control accessories, AK-UI55 3m Cable M-Pack
084B4079
Electron. control accessories, AK-UI55 6m Cable M-Pack
084B4099
Electron. control accessories, AK-UI55 Mounting Base S/M-pac
084B4193
AK-UI55 Bluetooth
084B4194
AK-UI55 Set
084B4195
AK-UI55 Info
084B4196
Electron. control accessories, AK-UI55 3m Cable I-Pack, AK-UI55

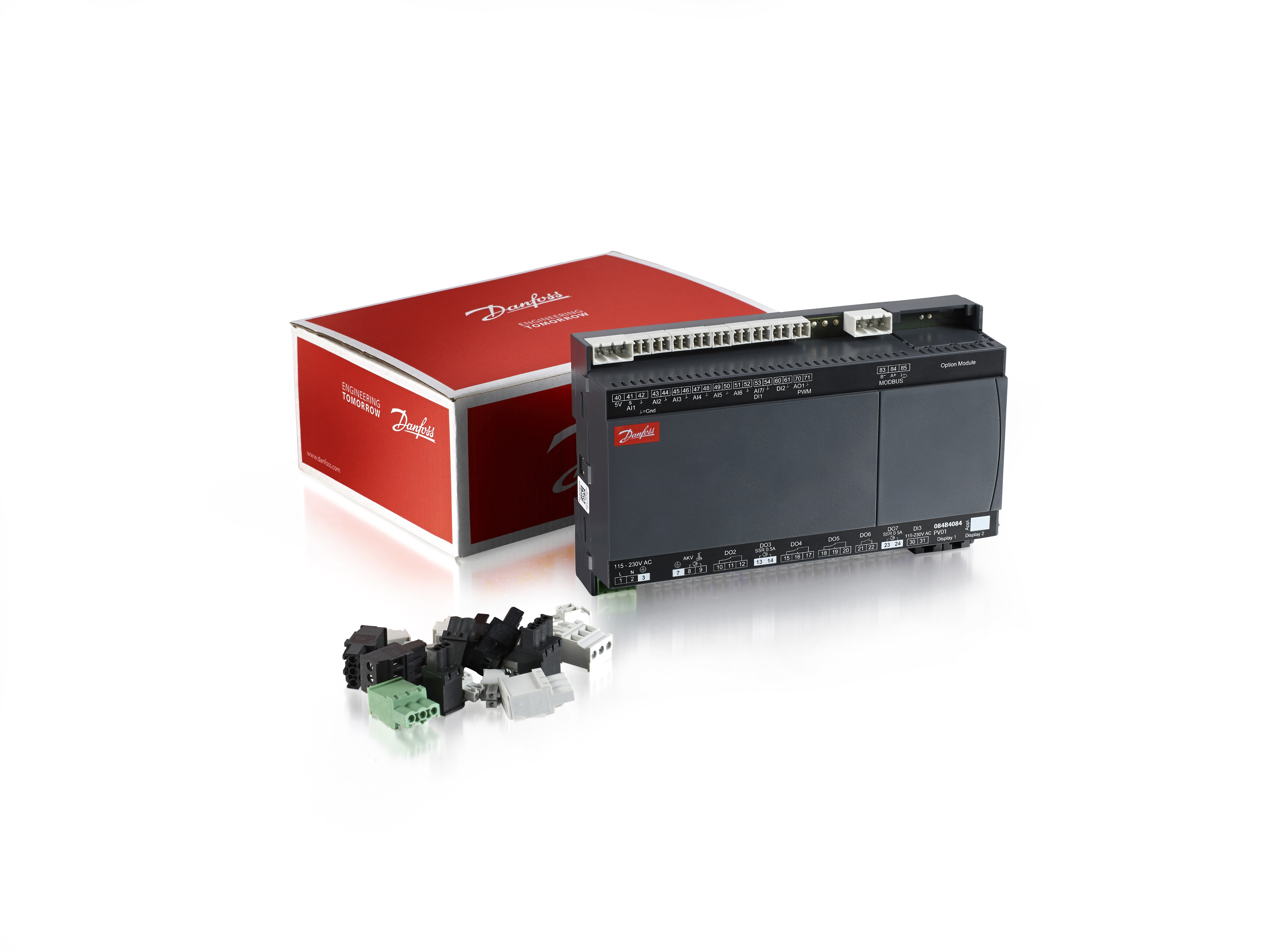

ADAP-KOOL Evaporator Controllers Overview brochure: Evaporator Controllers Supermarket Catalog 2020 Case/room controller (EEV), type AK-CC55 AK-CC55 case controller compatibility Detailed overview of ADAP-KOOL™ Case Controllers AK-OB55 Modbus TCP/IP, communication module Case/room controller (EEV), type AK-CC55 Multi Coil UK PSTI regulation for Danfoss Case controllers Basic Modbus parameter list, AK-CC55 Multi Coil (SW Ver. 1.9x) – Programming Guide CB US-35091-M1-UL ACMA CF13198_AU-Rev.00 Danfoss EU-UK 084R0835.AB Case/room controller (EEV) Danfoss MD 080R1237.01 AK-CC55 Multi Coil Case Contr. S/M-Pack AK-CC55 Multi Coil (wiring diagram) – Application 4 AK-CC55 Multi Coil with packaging and connectors AK-CC55 Multi Coil (wiring diagram) – Application 3 AK-CC55 Multi Coil (wiring diagram) – Application 2
