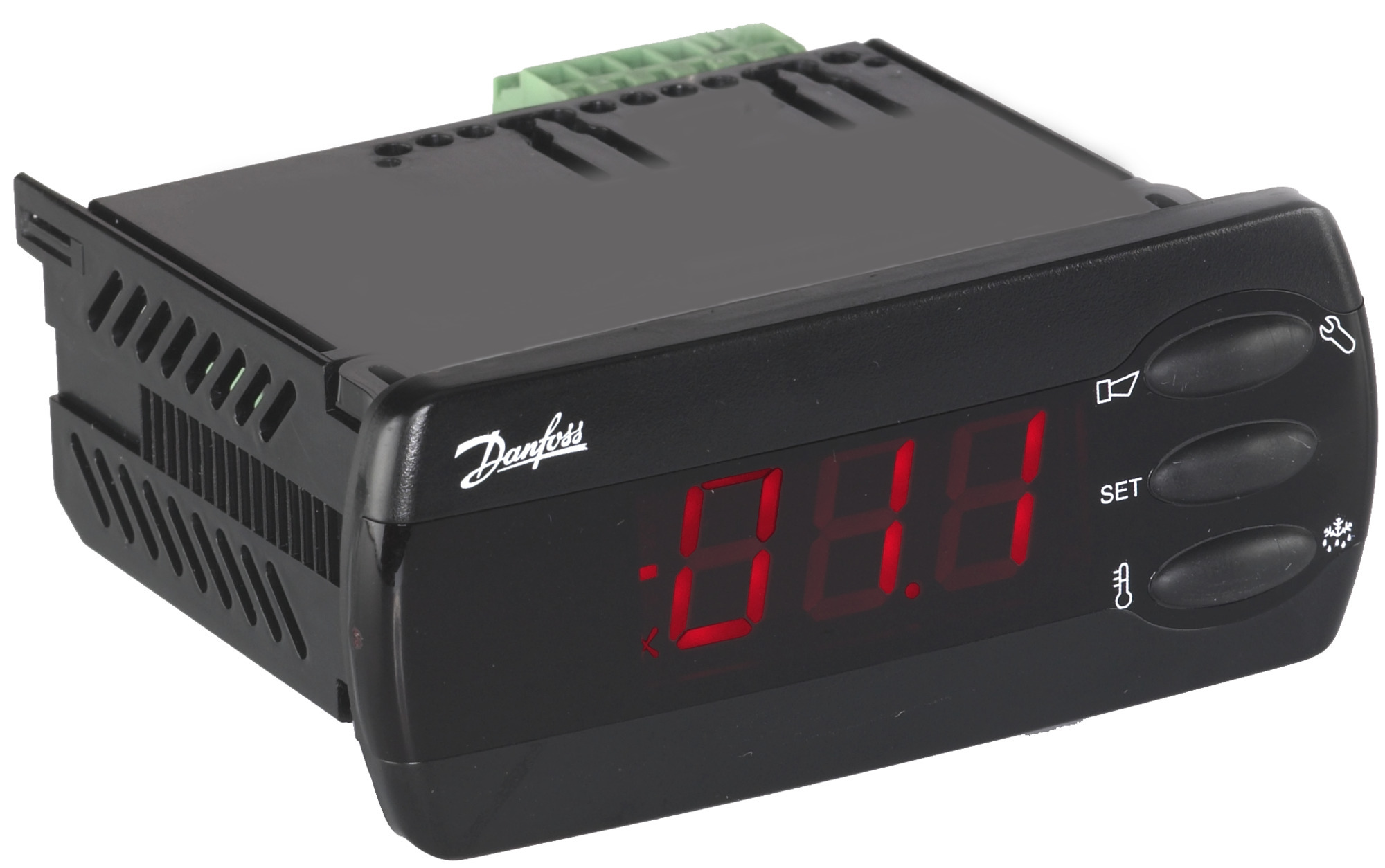

084B8528

Part Number: 084B8528
084B8528
Manufacturer
Danfoss
Part number
084B8528
Category

Product Information

Extended Description

084B8528 Danfoss: Function: Temp, Multi appli., 4 relays, Supply voltage [V] AC: 230, Communication type: MODBUS, Packing format: Multi pack, Quantity per packing format: 20
Gross weight
0.25 Kilogram
Net weight
0.218 Kilogram
Volume
0.47 Liter
EAN
5702428433877
Application area
Refrigeration control
Approval
C-TICK,CE,Intertek Semco,cURus
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
MODBUS
Controller type
Refrig. Controller (Temp)
Display on front
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Function
Temp, Multi appli., 4 relays
Further information
Multipurpose,Datacom. built-in
In scope of WEEE
Yes
Number of Compressors max.
2 pc
Number of Evaporators max.
1 pc
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
2.5 VA
Product accessories
Electron. control accessories
Product group
Evaporator and room control
Product Name Description
Refrig appliance control (TXV)
Quantity per packing format
20 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
230 V
Temp. sensor support
PTC 1000,Pt 1000
Type
AK-CC 250A
UK RoHS compliance
Out of scope
UL evaluated
Yes
084B8562
Electron. control accessories, EKA 163A, Display, Universal, EKC Controllers
084B8563
Electron. control accessories, EKA 164A, Display, Universal settings, EKC Controllers
084B8564
Electron. control accessories, EKA 178A, MODBUS Module, Data comm., EKC Controllers
084B8565
Electron. control accessories, EKA 179A, LON-module, RS485, EKC 204; EKC 202
084B8567
Electron. control accessories, EKA 182A, Copying Key, EKC-EKC, EKC 102; EKC 204; EKC 202
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
084B8586
Electron. control accessories, Accessorie Bag, 6 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8587
Electron. control accessories, Accessorie Bag, 2 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8588
Electron. control accessories, Accessorie Bag, 3 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8590
Electron. control accessories, Accessorie Bag, 7 Pol Terminal, 30 pcs, EKC 100; EKC 200
