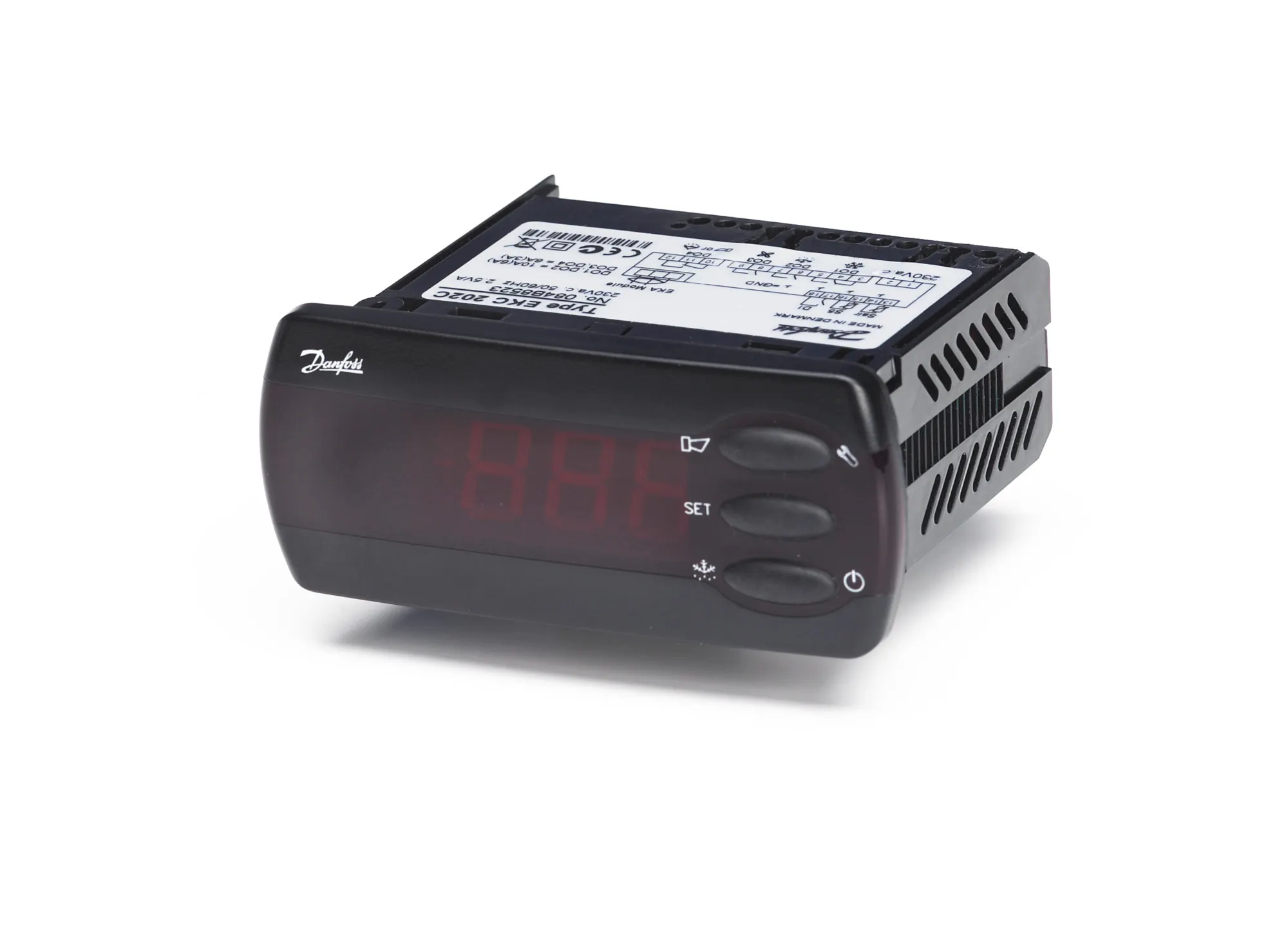

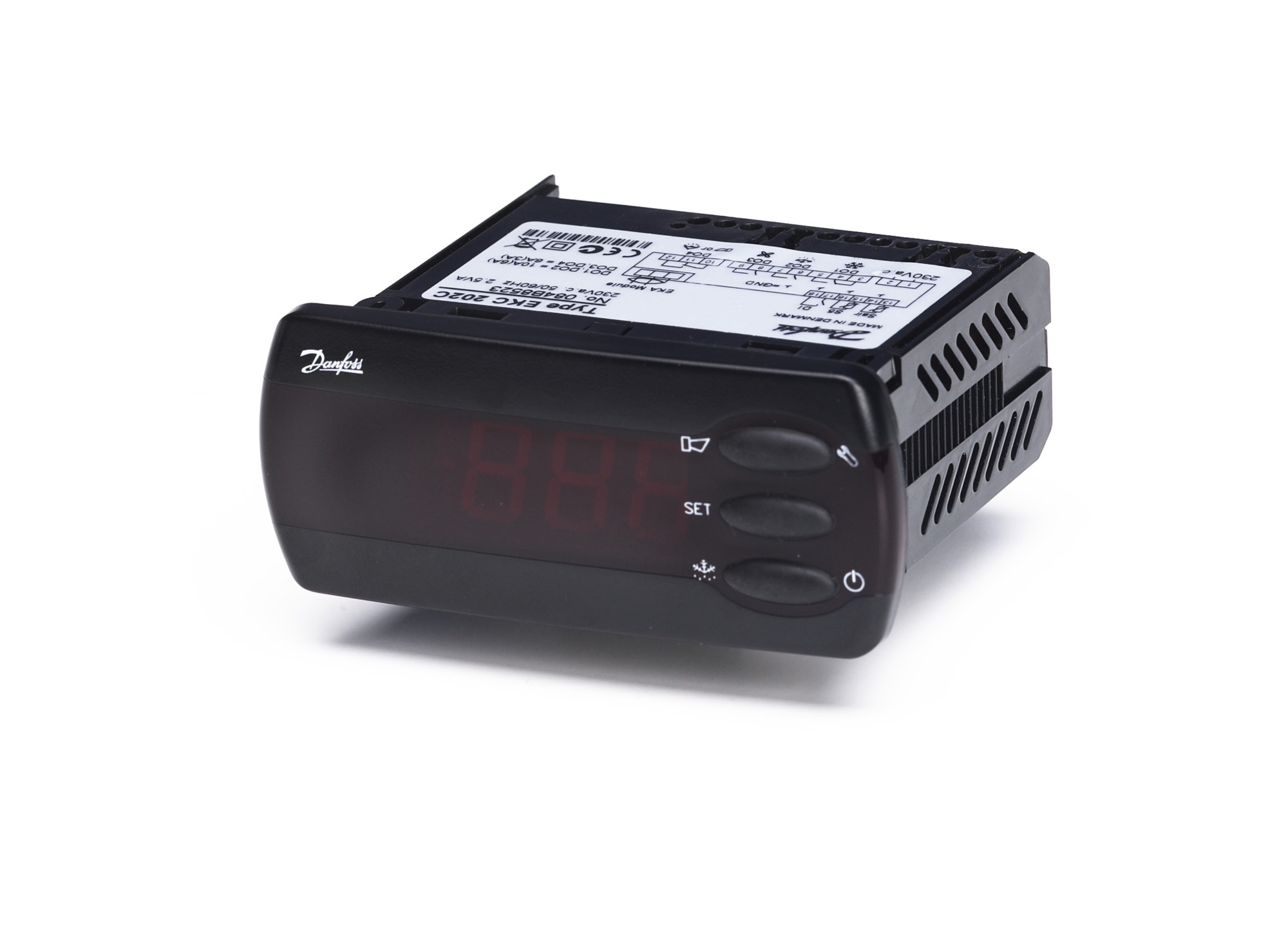

084B8543

Part Number: 084B8543
084B8543
Manufacturer
Danfoss
Part number
084B8543
Category

Product Information

Extended Description

084B8543 Danfoss: Function: 4 Outputs,2 Temp.Sensors, DI, Supply voltage [V] AC: 230, Communication type: Optional MODBUS; Optional LON,, Packing format: Multi pack, Quantity per packing format: 20
Gross weight
0.252 Kilogram
Net weight
0.211 Kilogram
Volume
0.512 Liter
EAN
5702428490245
Application area
Refrigeration control
Approval
C-TICK,CE,EAC,Intertek Semco,cURus
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Optional LON,,Optional MODBUS
Controller type
Refrig. Controller (Temp)
Display on front
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Function
4 Outputs,2 Temp.Sensors, DI
In scope of WEEE
Yes
Number of Compressors max.
1 pc
Number of Evaporators max.
1 pc
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
2.5 VA
Product accessories
Electron. control accessories
Product group
Evaporator and room control
Product Name Description
Refrig appliance control (TXV)
Quantity per packing format
20 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
230 V
Temp. sensor support
NTC 5000,NTC10000,NTC2000,NTC2500,NTC3000
Type
EKC 202C-MS
UK RoHS compliance
Out of scope
UL evaluated
Yes
084B8564
Electron. control accessories, EKA 178A, MODBUS Module, Data comm., EKC Controllers
084B8565
Electron. control accessories, EKA 179A, LON-module, RS485, EKC 204; EKC 202
084B8567
Electron. control accessories, EKA 182A, Copying Key, EKC-EKC, EKC 102; EKC 204; EKC 202
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
084B8586
Electron. control accessories, Accessorie Bag, 6 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8587
Electron. control accessories, Accessorie Bag, 2 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8588
Electron. control accessories, Accessorie Bag, 3 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8590
Electron. control accessories, Accessorie Bag, 7 Pol Terminal, 30 pcs, EKC 100; EKC 200
Detailed overview of ADAP-KOOL™ Case Controllers Instructions, EKC 202C-MS, NTC, Multi-sensor UK PSTI regulation for Danfoss Case controllers Controller for temperature contol EKC 202C-MS Danfoss EU-UK 084R0835.AB UL E31024 Refrigeration appliance control (TXV) Danfoss MD 080R0815.02 Danfoss MD 080R1205.01 Danfoss MD 080R1221.02 Danfoss MD-UK 080R1228.04 EKC 102, EKC 202 EKC 102, EKC 202 EKC 202 EKC 202 EKC 102, EKC 202 EKC 202 AK-CC 240, EKC 202, AK-CC 210 EKC 202C
