084G2100

Part Number: 084G2100
084G2100
Manufacturer
Danfoss
Part number
084G2100
Category

Product Information

Extended Description

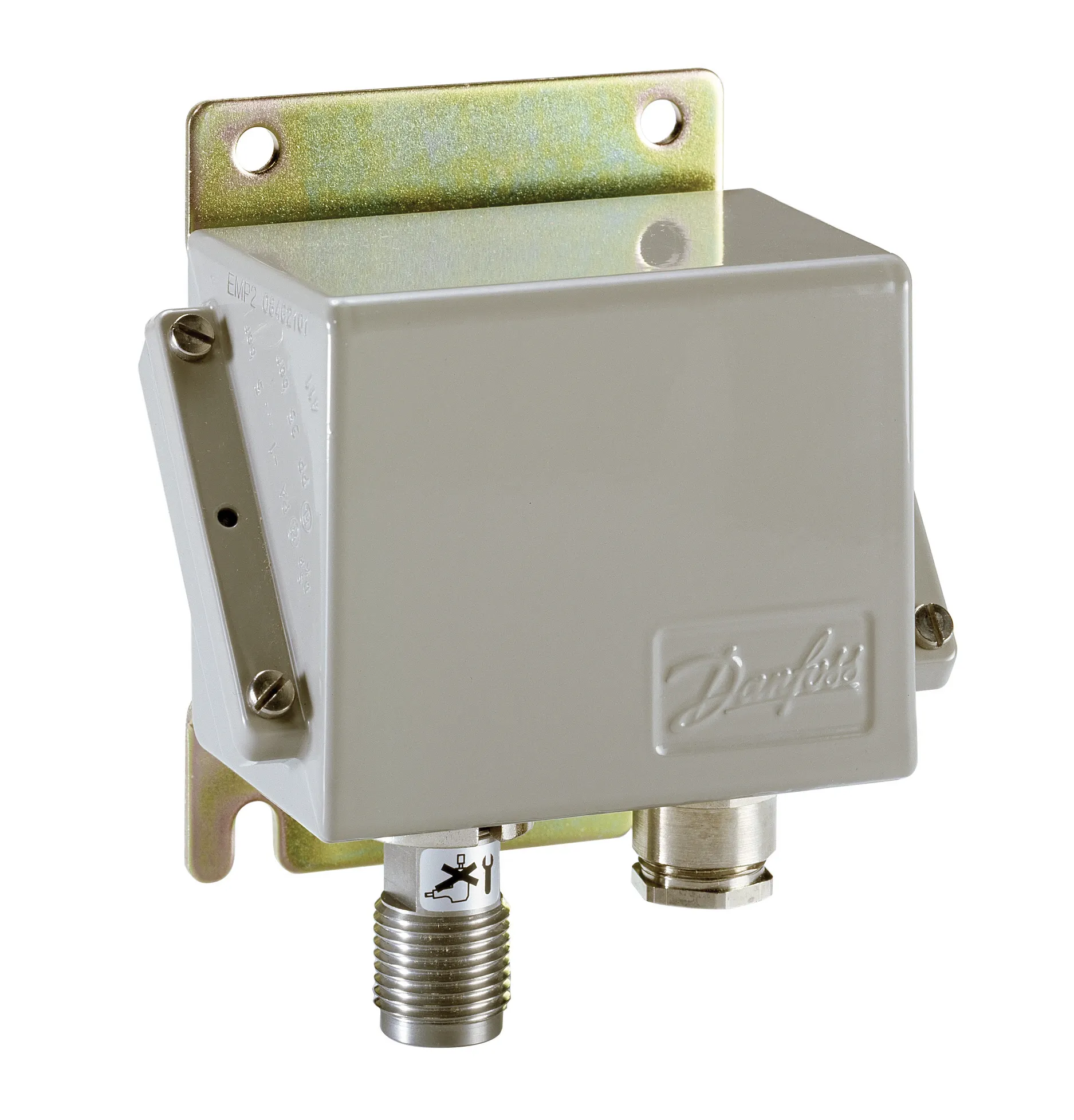

084G2100 Danfoss: Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Terminal block, Pressure connection type: G, Pressure connection size: 1/2, Specification key: EMP 2-8431-F6CD24-2
Gross weight
1.065 Kilogram
Net weight
0.782 Kilogram
Volume
2.473 Liter
EAN
5702423005307
+ supply
P
- common
N
Accuracy, max. [=C2=B1FS%]
1 %
Accuracy, typical [=C2=B1FS%]
0.5 %
Approval
ABS,BV,CCS,DNV,GL,GOST POCC,KR,LR,NNK,RINA
CE evaluated
Yes
China RoHS compliance
Out of scope
Compensated temp. range [=C2=B0C] [max]
70 =C2=B0C
Compensated temp. range [=C2=B0C] [min]
0 =C2=B0C
Compensated temp. range [=C2=B0F] [max]
158 =C2=B0F
Compensated temp. range [=C2=B0F] [min]
32 =C2=B0F
Contain batteries
No
Electrical connection
Terminal block
Electrical connection size
Pg 13.5
Enclosure rating IP
IP65
EU RoHS compliance
Out of scope
Flush diaphragm
No
High Clipping Level
22.4
International Article Number
5702423005307
Intrinsically safe
No
Low Clipping level
3.6
Medium temperature range [=C2=B0C] [max]
70 =C2=B0C
Medium temperature range [=C2=B0C] [min]
-10 =C2=B0C
Medium temperature range [=C2=B0F] [max]
158 =C2=B0F
Medium temperature range [=C2=B0F] [min]
14 =C2=B0F
Non-linearity BFSL [=C2=B1FS%]
0.3 %
Output signal
Current
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Overload pressure max. [bar]
5 bar
Packing format
Multi pack
Pressure connection notes
EXT. G1/4 INT
Pressure connection size
1/2
Pressure connection standard
EN 228-1
Pressure connection type
G
Pressure Male/Female
Male/Female
Pressure range [bar] [max]
1.5 bar
Pressure range [bar] [min]
-1 bar
Pressure range [psi] [max]
21.75 psi
Pressure range [psi] [min]
-14.5 psi
Pressure reference
Sealed gauge
Product group
Sensors
Product Name Description
Pressure transmitter
Pulse-snubber
No
Quantity per packing format
8 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Response time max. [ms]
4 ms
SCIP dossier no.
6010d1e2-f473-4af2-afdd-bb494bdd0100
SCIP dossier product name
EMP
Specification key
EMP 2-8431-F6CD24-2
Supply voltage [V] DC [max]
32 V
Supply voltage [V] DC [min]
12 V
Type
EMP 2
UK RoHS compliance
Out of scope
060-016966
Switches accessories, Capillary Tube
Analogue Sensor upgraded with the new Danfoss electronic platform Transmitter overview for wholesaler Pressure transmitter, type EMP 2=20 EMP 2 Transmitter overview for wholesaler Danfoss EU-UK 064G9615.11 UL E494625 UL E510763 UL E227388 Pressure & Temperature Sensors Danfoss MD 060R3160.00 ABS 22-2311484-PDA BV 02280-I1 BV CCS TJ22PTB00047 DNV TAA000012U Rev.2 EMP 2 Box-type pressure transmitters EMP 2
