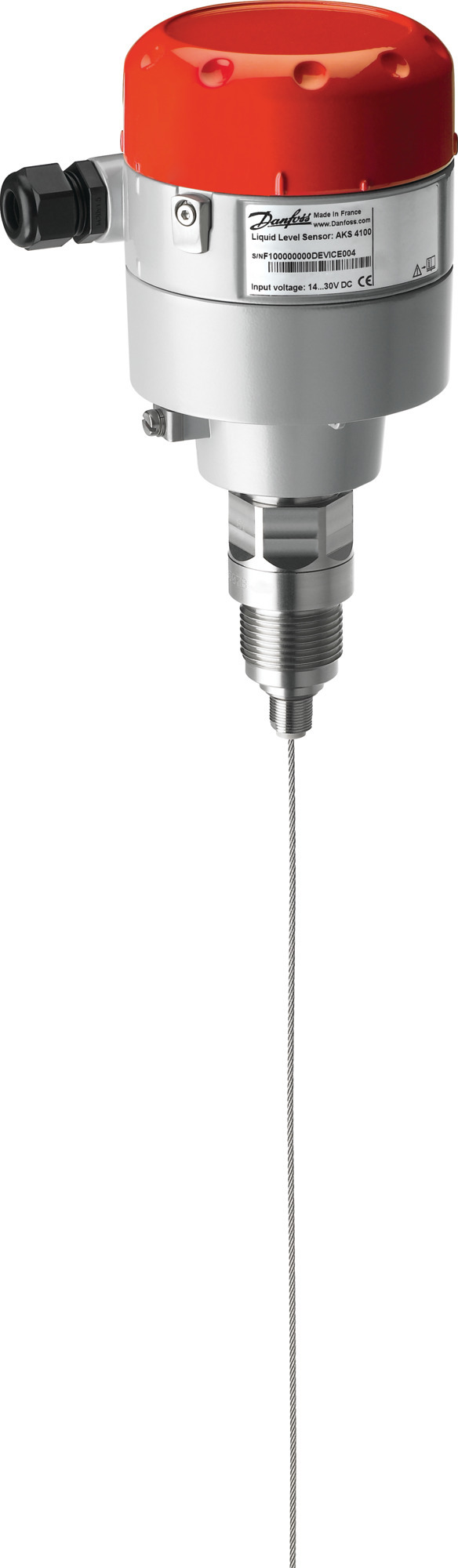

084H4509
Part Number: 084H4509
Product Information
Extended Description
084H4509 Danfoss: Design: Coaxial version, Parts included: HMI not included, Connection size [in]: 1, Connection type: G, Insertion length [mm]: 2200
Gross weight
7.305 Kilogram
Net weight
4.6 Kilogram
Volume
66.768 Liter
EAN
5702428414982
Ambient temperature range [°C] [max]
80 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
176 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection size [in]
1
Connection type
G
Contain batteries
No
Design
Coaxial version
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Insertion length [in]
86.6 in
Insertion length [mm]
2200 mm
Load resistance max. [Ohm]
500
Max. Working Pressure [bar]
100 bar
Max. Working Pressure [psig]
1450 psig
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Packing format
Single pack
Parts included
HMI not included
Power consumption [W]
0.7 W
Product accessories
Liq. level switch accessories
Product description
Liquid Level Sensor
Product group
Sensors
Product Name Description
Liquid level sensor
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R717,R744,R507A
Serviceable
Liq. level switch spare parts
Supply voltage [V] DC [max]
30 V
Supply voltage [V] DC [min]
14 V
Temperature range [°C] [max]
100 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
212 °F
Temperature range [°F] [min]
-76 °F
Type
AKS 4100
UK RoHS compliance
Out of scope
027F1010
Liq. level sensor accessories, AKS 4100 / AKS 41 Connector ,1in, AKS 41
084H4541
Signal converter, AKS4100/4100U
084H4542
Service kit, AKS4100/4100U, Cable Service kit
084H4544
Top cover, AKS4100/4100U, Blank top cover
084H4545
Repair kit, AKS4100/4100U, Process conn., counterweight
084H4547
Gasket, AKS4100/4100U, Aluminium gaskets
084H4548
Display, AKS4100/4100U
084H4555
Control panel, AKS4100/4100U
084H4540
Control panel, AKS4100/4100U
