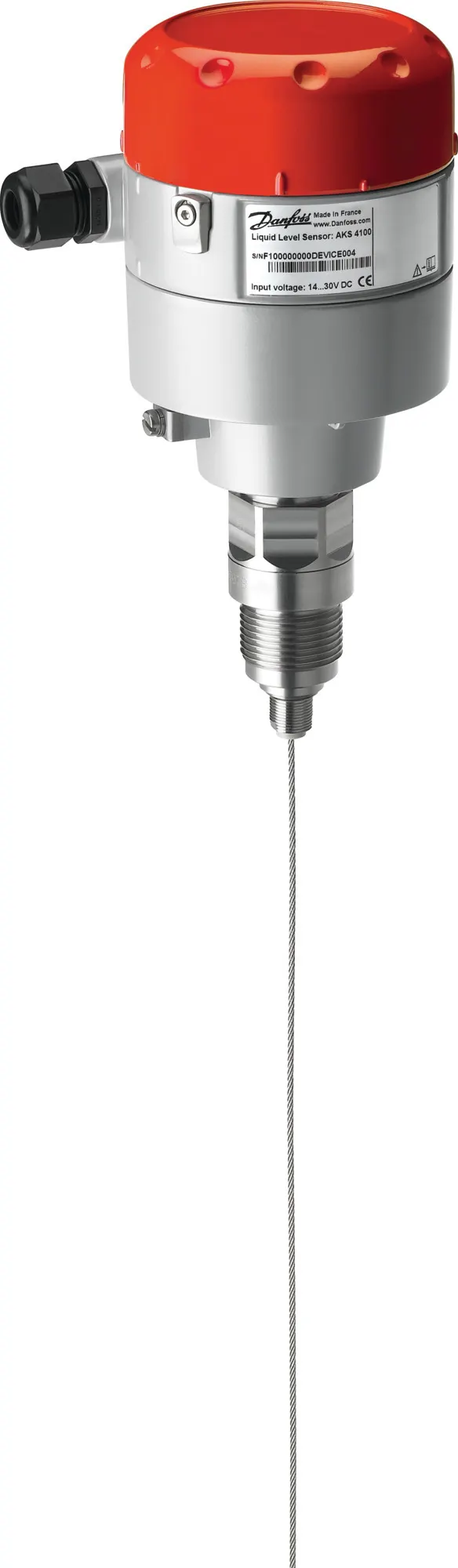

084H4517

Part Number: 084H4517
084H4517
Manufacturer
Danfoss
Part number
084H4517
Category

Product Information

Extended Description

084H4517 Danfoss: Design: Coaxial version D22, Parts included: HMI with EN,DE,FR,ES Language, Connection size [in]: 1, Connection type: G, Insertion length [mm]: 280
Gross weight
3.808 Kilogram
Net weight
2.4 Kilogram
Volume
14.511 Liter
EAN
5702428934008
Ambient temperature range [°C] [max]
80 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
176 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,EAC,LLC CDC TYSK
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection size [in]
1
Connection type
G
Contain batteries
No
Design
Coaxial version D22
Enclosure rating IP
IP67
EU RoHS compliance
Out of scope
Insertion length [in]
11.02 in
Insertion length [mm]
280 mm
Load resistance max. [Ohm]
500
Max. Working Pressure [bar]
100 bar
Max. Working Pressure [psig]
1450 psig
Other RoHS documentation
Saudi Arabia RoHS
Output signal [mA] [max]
20 mA
Output signal [mA] [min]
4 mA
Packing format
Single pack
Parts included
HMI with EN,DE,FR,ES Language
Power consumption [W]
0.7 W
Product accessories
Liq. level switch accessories
Product description
Liquid Level Sensor
Product group
Sensors
Product Name Description
Liquid level sensor
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R717
Serviceable
Liq. level switch spare parts
Supply voltage [V] DC [max]
30 V
Supply voltage [V] DC [min]
14 V
Temperature range [°C] [max]
100 °C
Temperature range [°C] [min]
-60 °C
Temperature range [°F] [max]
212 °F
Temperature range [°F] [min]
-76 °F
Type
AKS 4100
UK RoHS compliance
Out of scope
027F1010
Liq. level sensor accessories, AKS 4100 / AKS 41 Connector ,1in, AKS 41
084H4541
Signal converter, AKS4100/4100U
084H4542
Service kit, AKS4100/4100U, Cable Service kit
084H4544
Top cover, AKS4100/4100U, Blank top cover
084H4545
Repair kit, AKS4100/4100U, Process conn., counterweight
084H4547
Gasket, AKS4100/4100U, Aluminium gaskets
084H4548
Display, AKS4100/4100U
084H4555
Control panel, AKS4100/4100U
084H4540
Control panel, AKS4100/4100U
