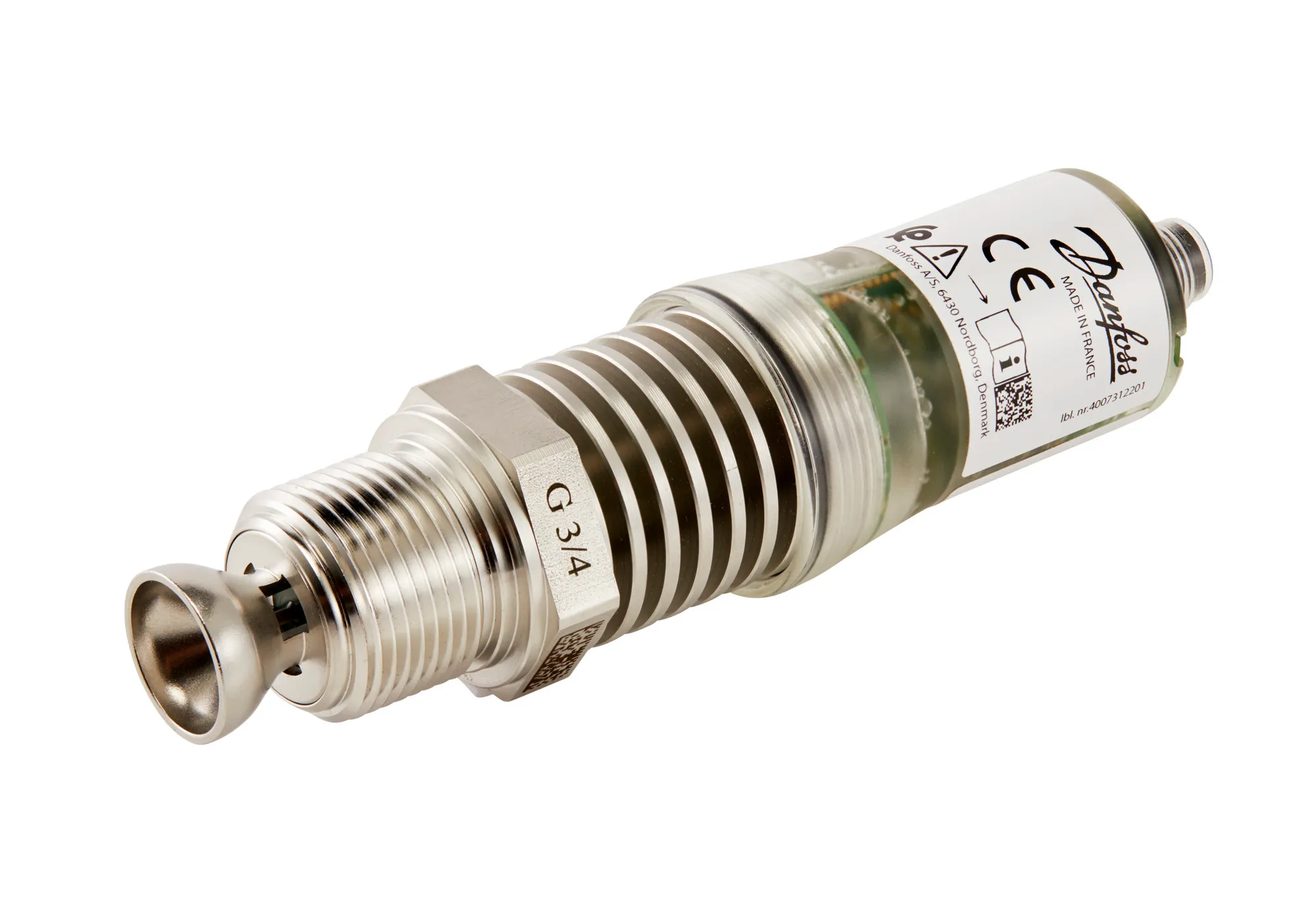

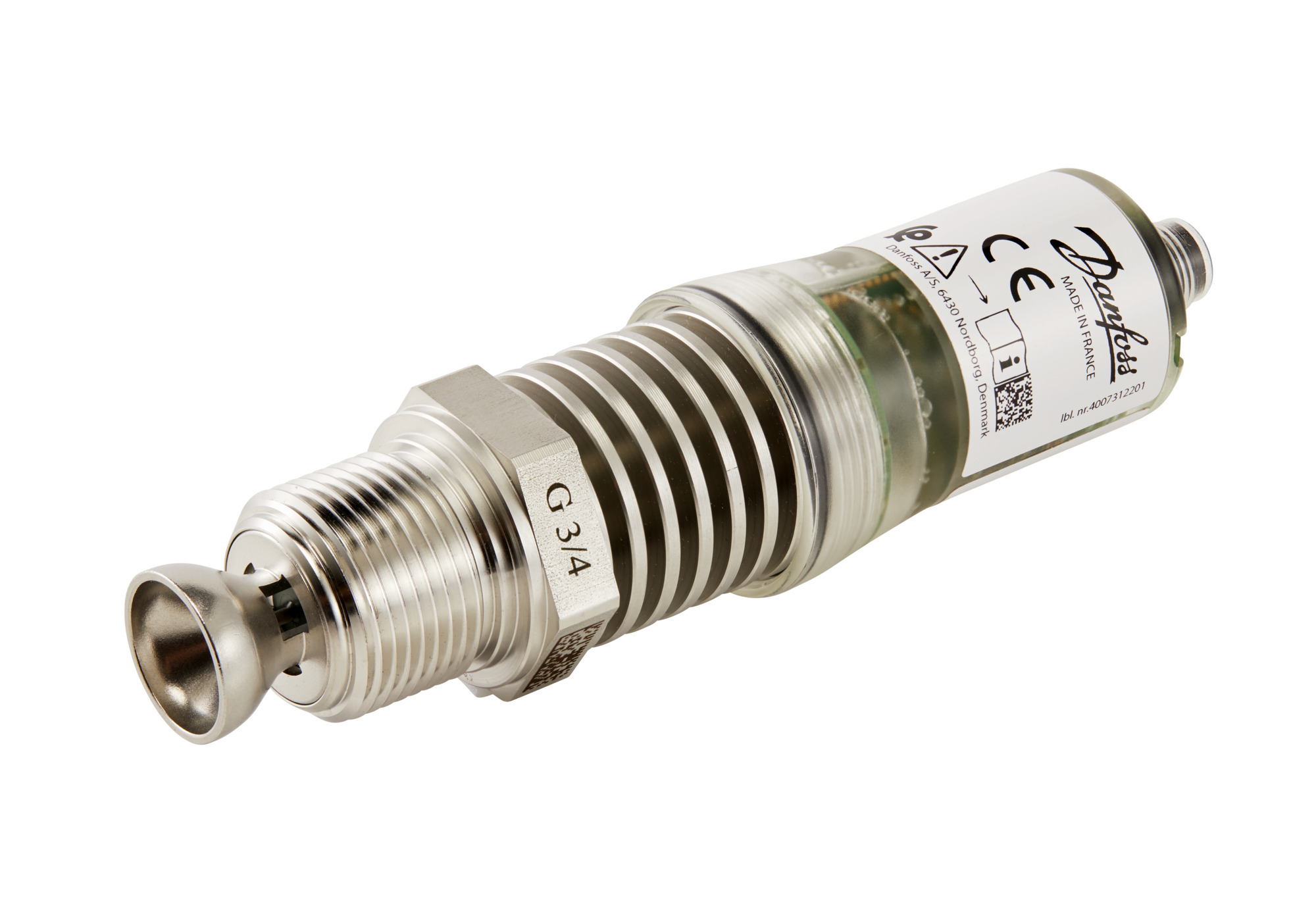

084H6002
Part Number: 084H6002
Product Information
Extended Description
084H6002 Danfoss: Connection type: G, Connection size [mm]: 25, Enclosure rating IP: IP67, Max. Working Pressure [bar]: 140.0, Supply voltage [V] DC: 24
Gross weight
0.371 Kilogram
Net weight
0.343 Kilogram
Volume
0.487 Liter
EAN
5702428681278
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,FCC,SIL2,CMIM,EAC,TYSK,ANATEL,CMIIT,NBTC
Bluetooth signal reach (~) [m]
3 m
Body material
Stainless steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Bluetooth
Connection Internal/External
External
Connection material
Steel
Connection size [in]
3/4
Connection size [mm]
25 mm
Connection standard
ISO 228-1
Connection type
G
Contain batteries
No
Design
NC relay (locked)
Electrical conn. Male/Female
Male
Electrical connection
M12
Electrical connection size
4 pin
Electrical connection standard
EN 61076-2-101
Enclosure rating IP
IP67
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1,2
HMI design
Danfoss LLS App
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2031 psig
Output relay current [mA]
200 mA
Output relay DC voltage [V]
30 V
Output relay type
Solid state
Packing format
Multi pack
Parts included
Alu gasket
PED category
Art. 4, par. 3
Power consumption [W]
2 W
Product accessories
Liq. level switch accessories
Product description
Liquid Level Switch
Product group
Switches and thermostats
Product Name Description
Liquid level switch
Quantity per packing format
24 pc
Refrigerants
R22,R404A,R410A,R717,R134a
Rel. Humidity [% RH] [max]
99 %
Rel. Humidity [% RH] [min]
4 %
Serviceable
Liq. level switch spare parts
Storage temperature range [°C] [max]
85 °C
Storage temperature range [°C] [min]
-40 °C
Storage temperature range [°F] [max]
185 °F
Storage temperature range [°F] [min]
-40 °F
Supply voltage [V] DC
24 V
Temperature range [°C] [max]
120 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
248 °F
Temperature range [°F] [min]
-58 °F
Type
LLS 4000
UK RoHS compliance
Out of scope
084H6011
LLS 4000/4000U, O-ring + Alu gasket
084H6012
Liq. level switch accessories, LLS 4000 Welding connector G3/4 inch, LLS 4000
