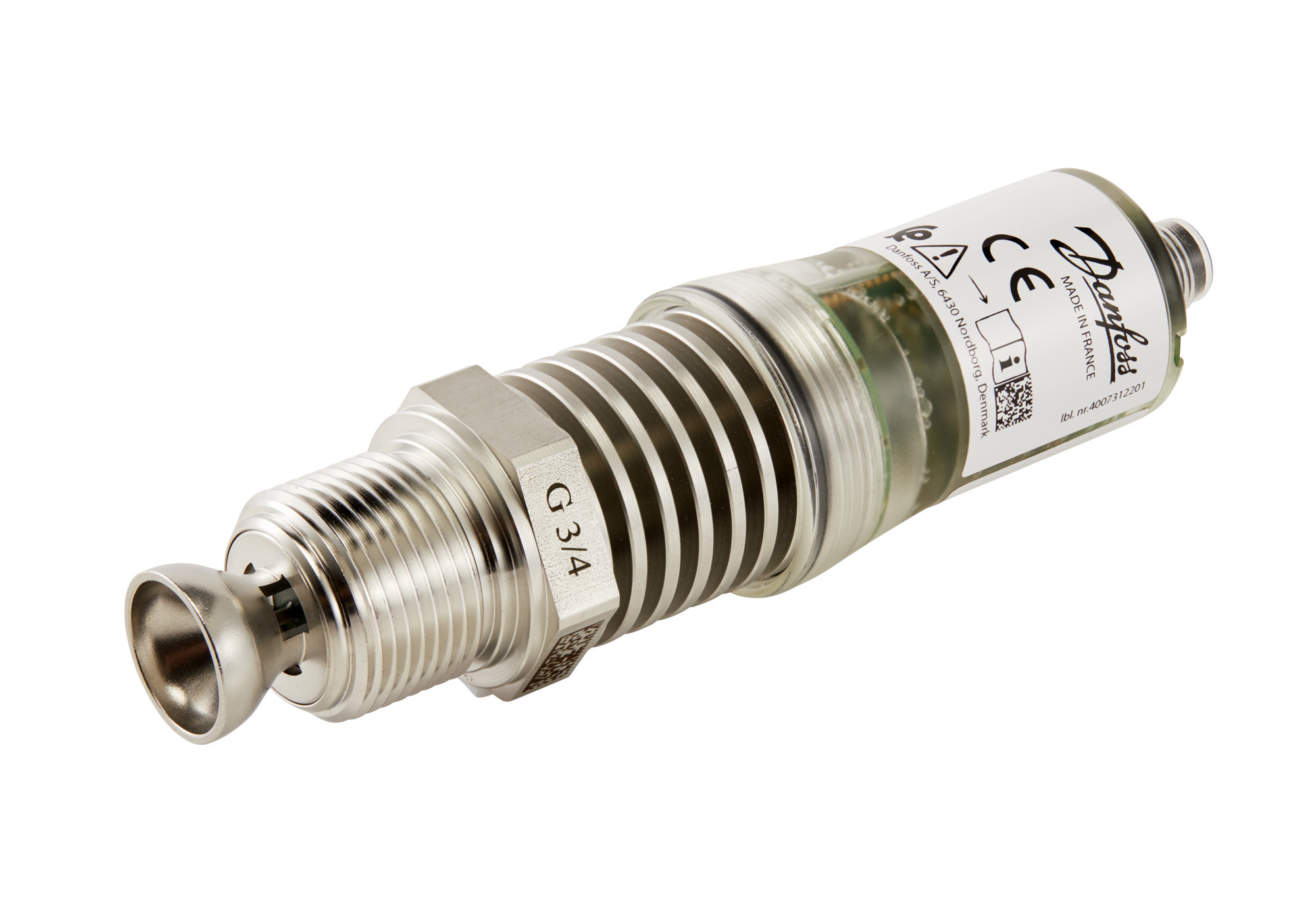

084H6003
Part Number: 084H6003
Product Information
Extended Description
084H6003 Danfoss: Connection type: NPT, Connection size [mm]: 25, Enclosure rating IP: IP67, Max. Working Pressure [bar]: 140.0, Supply voltage [V] DC: 24
Gross weight
0.38 Kilogram
Net weight
0.343 Kilogram
Volume
0.521 Liter
EAN
5702428681285
Ambient temperature range [°C] [max]
65 °C
Ambient temperature range [°C] [min]
-40 °C
Ambient temperature range [°F] [max]
149 °F
Ambient temperature range [°F] [min]
-40 °F
Approval
CE,FCC,CMIM,EAC,TYSK,ANATEL,CMIIT,NBTC
Bluetooth signal reach (~) [m]
3 m
Body material
Stainless steel
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Bluetooth
Connection Internal/External
External
Connection material
Steel
Connection size [in]
3/4
Connection size [mm]
25 mm
Connection standard
ANSI/ASME B1.20.3
Connection type
NPT
Contain batteries
No
Design
Config. NC/NO relay
Electrical conn. Male/Female
Male
Electrical connection
M12
Electrical connection size
4 pin
Electrical connection standard
EN 61076-2-101
Enclosure rating IP
IP67
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Fluid Group
1,2
HMI design
Danfoss LLS App
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2031 psig
Output relay current [mA]
200 mA
Output relay DC voltage [V]
30 V
Output relay type
Solid state
Packing format
Single pack
PED category
Art. 4, par. 3
Power consumption [W]
2 W
Product accessories
Liq. level switch accessories
Product description
Liquid Level Switch
Product group
Switches and thermostats
Product Name Description
Liquid level switch
Quantity per packing format
1 pc
Refrigerants
R22,R404A,R410A,R717,R134a
Rel. Humidity [% RH] [max]
99 %
Rel. Humidity [% RH] [min]
4 %
Serviceable
Liq. level switch spare parts
Storage temperature range [°C] [max]
85 °C
Storage temperature range [°C] [min]
-40 °C
Storage temperature range [°F] [max]
185 °F
Storage temperature range [°F] [min]
-40 °F
Supply voltage [V] DC
24 V
Temperature range [°C] [max]
120 °C
Temperature range [°C] [min]
-50 °C
Temperature range [°F] [max]
248 °F
Temperature range [°F] [min]
-58 °F
Type
LLS 4000U
UK RoHS compliance
Out of scope
084H6010
LLS 4000/4000U, Electronic spare
084H6011
LLS 4000/4000U, O-ring + Alu gasket
