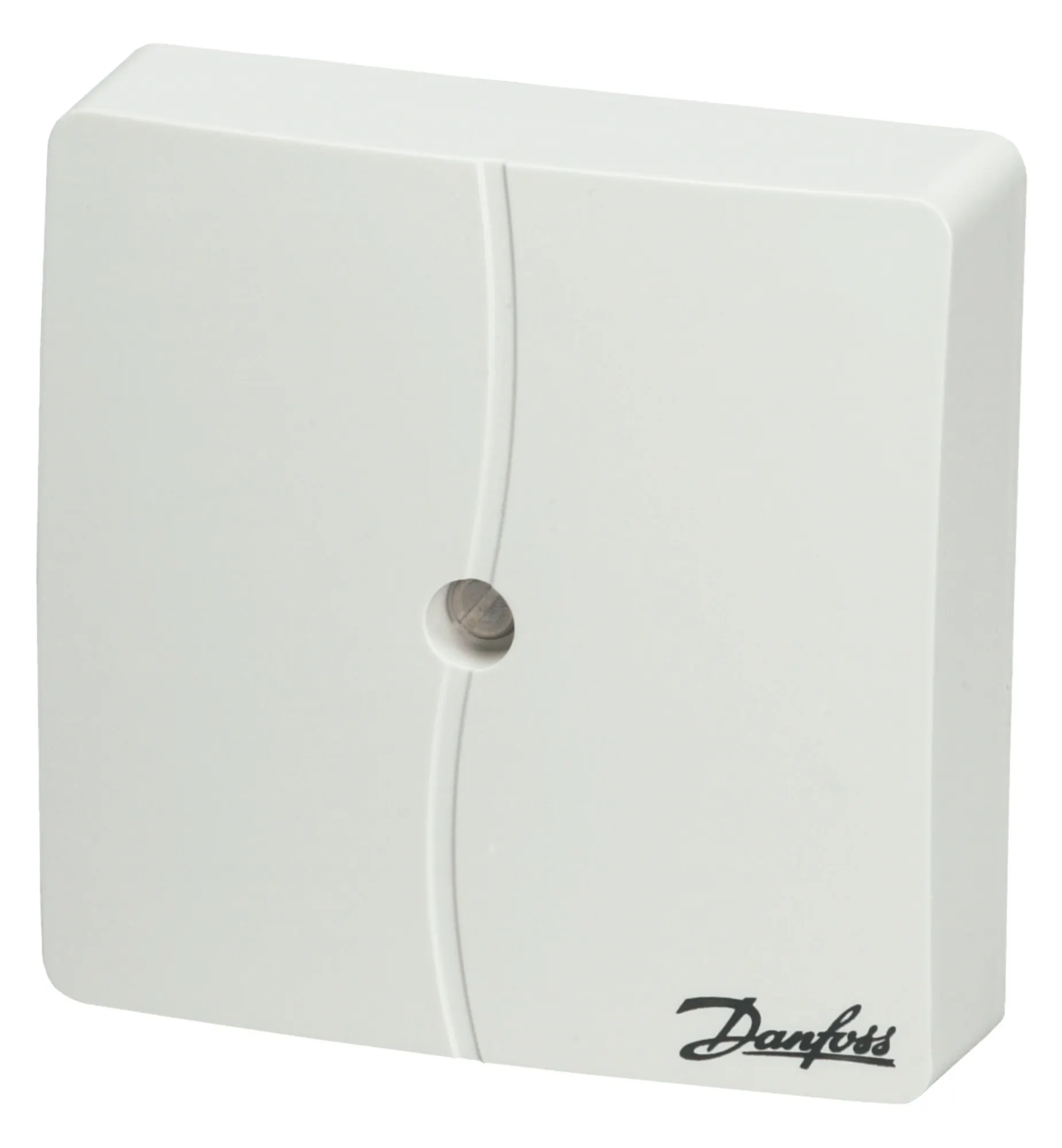

084N1013
Part Number: 084N1013
Product Information
Extended Description
084N1013 Danfoss: Measuring range [°C]: -30 - 50, Sensor elem. resistance [Ohm]: 1000
Gross weight
0.084 Kilogram
Net weight
0.071 Kilogram
Volume
0.468 Liter
EAN
5702421011423
Ambient temperature max. [°C]
50 °C
Ambient temperature max. [°F]
122 °F
Cable type
N/A
CE evaluated
Yes
Contain batteries
No
Electrical connection
2 wire
Electrical connection size
2 wire
Enclosure rating IP
IP54
Housing material
Plastic
Measuring range [°C] [max]
50 °C
Measuring range [°C] [min]
-30 °C
Measuring range [°F] [max]
122 °F
Measuring range [°F] [min]
-22 °F
Number of terminals [pcs]
2 pc
Packing format
Industrial pack
Product group
Sensors
Product Name Description
Temperature sensor
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor elem. resistance [Ohm]
1000
Sensor element [pc]
1 pc
Sensor element standard
EN 60751
Sensor element tolerance
Class B
Sensor element type
Pt
Sensor housing material
PLASTIC
Sensor Insert
Fixed
Temperature sensors type
Pt 1000
Time constant
15 min
Type
ESMT
Wires [pcs]
2 pc
