084N2060
Part Number: 084N2060
Product Information
Extended Description

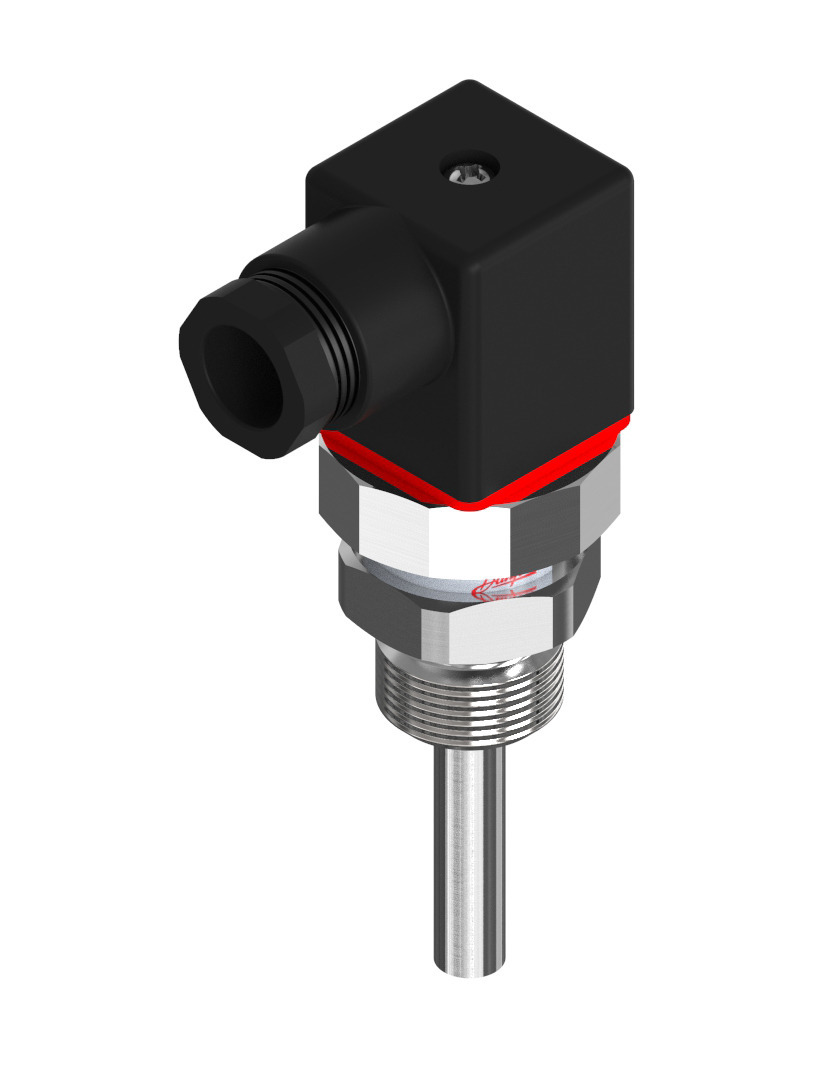

084N2060 Danfoss: Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Electrical connection size: Pg 11
Gross weight
0.16 Kilogram
Net weight
0.145 Kilogram
Volume
0.74 Liter
EAN
5702428062411
Ambient temperature max. [=C2=B0C]
180 =C2=B0C
Ambient temperature max. [=C2=B0F]
356 =C2=B0F
CE evaluated
Yes
Connection standard
ISO 228
Connection type
G
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. comments
Male and Female
Electrical connection size
Pg 11
Electrical connection standard
EN 175301-803-A
In scope of WEEE
Yes
Measuring range [=C2=B0C] [max]
180 =C2=B0C
Measuring range [=C2=B0C] [min]
-70 =C2=B0C
Measuring range [=C2=B0F] [max]
356 =C2=B0F
Measuring range [=C2=B0F] [min]
-94 =C2=B0F
Packing format
Multi pack
Process connection Male/Female
Male
Process connection size
1/2
Process connection standard
ISO 228-1-A
Process connection type
G
Product group
Sensors
Product Name Description
Temperature sensor
Protection tube diameter [in]
0.32 in
Protection tube diameter [mm]
8 mm
Protection tube length [in]
3.15 in
Protection tube length [mm]
80 mm
Protection tube material
Stainless steel
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
SCIP dossier no.
23785618-b379-4da7-a913-ecd40c8fae6d
SCIP dossier product name
Solenoid coils
Sensor elem. resistance [Ohm]
1000
Sensor element [pc]
1 pc
Sensor element standard
EN 60751
Sensor element tolerance
Class B
Sensor element type
Pt
Sensor Insert
Exchangeable
Type
AKS 25 W4
Wires [pcs]
2 pc
084Z4212
Accessories, sensors, Plug
