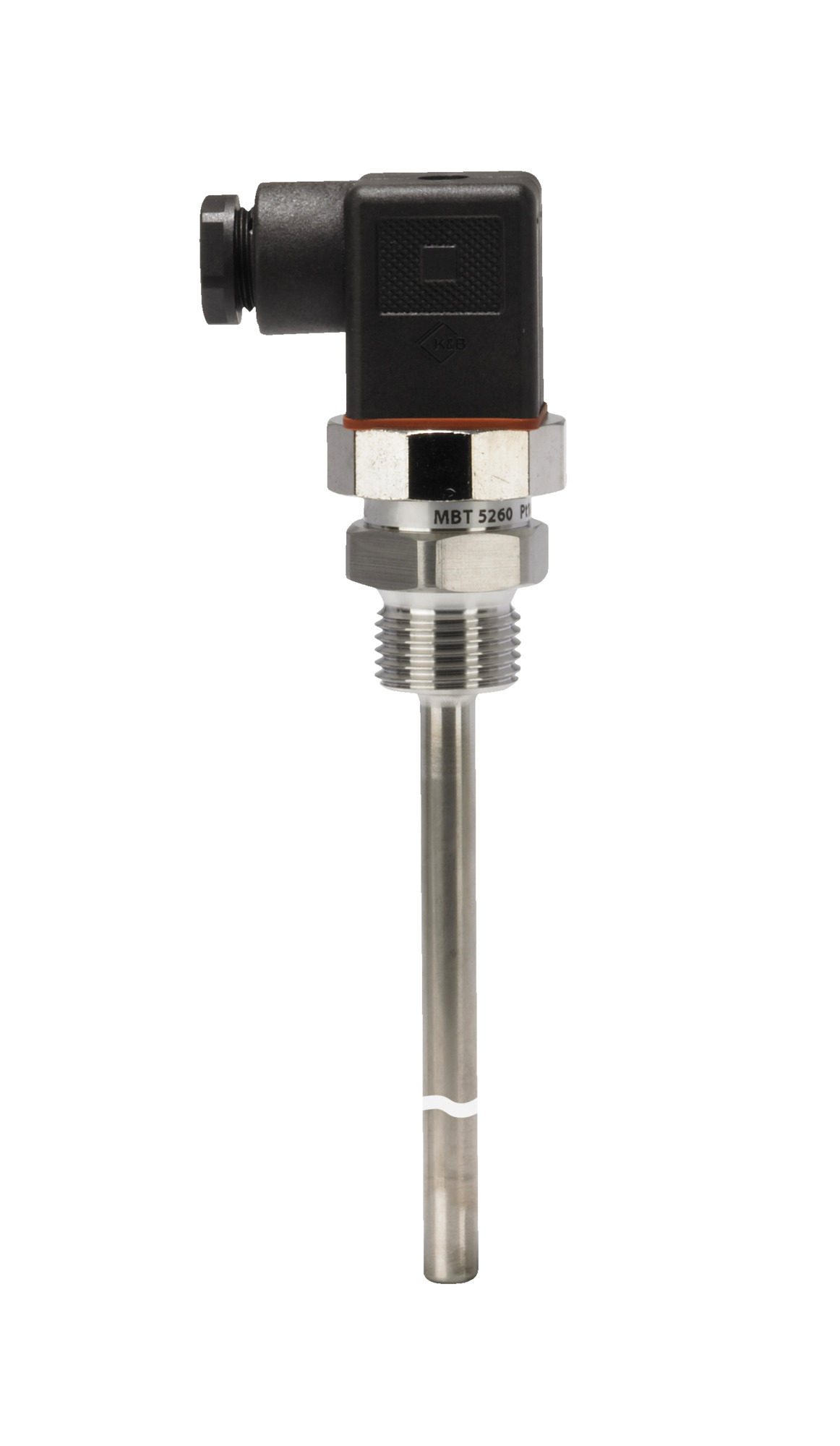

084Z8019

Part Number: 084Z8019
084Z8019
Manufacturer
Danfoss
Part number
084Z8019
Category

Product Information

Extended Description

084Z8019 Danfoss: Temperature range [=C2=B0C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Angular connector, Electrical connection size: Pg 11
Gross weight
0.153 Kilogram
Net weight
0.149 Kilogram
Volume
0.255 Liter
EAN
5702423079360
Ambient temperature max. [=C2=B0C]
125 =C2=B0C
Ambient temperature max. [=C2=B0F]
257 =C2=B0F
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Connection material
Stainless steel
Connection standard
ANSI/ASME B1.20
Connection type
NPT
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Male and Female
Electrical connection
Angular connector
Electrical connection size
Pg 11
Electrical connection standard
EN 175301-803-A
Enclosure rating IP
IP65
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(b),6(c),7(a),7(c)-I
In scope of WEEE
Yes
Insertion length [in]
3.15 in
Insertion length [mm]
80 mm
Insertion type
Fixed
Number of terminals [pcs]
3 pc
Output signal
Ohm
Packing format
Multi pack
Process connection Male/Female
Male
Process connection material
Stainless steel
Process connection size
1/2-14
Process connection standard
ANSI/ASME B1.20.1
Process connection type
NPT
Product group
Sensors
Product Name Description
Temperature sensor
Protection tube diameter [in]
0.315 in
Protection tube diameter [mm]
8 mm
Protection tube material
AISI 316 Ti
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
1741c763-fa54-4cb9-973c-52e51e4079b9
Sensor elem. resistance [Ohm]
100
Sensor element [pc]
1 pc
Sensor element standard
EN 60751
Sensor element tolerance
Class B
Sensor element type
Pt
Sensor Insert
Exchangeable
Temperature range [=C2=B0C] [max]
200 =C2=B0C
Temperature range [=C2=B0C] [min]
-50 =C2=B0C
Temperature range [=C2=B0F] [max]
392 =C2=B0F
Temperature range [=C2=B0F] [min]
-58 =C2=B0F
Type
MBT 5250
Type designation
MBT 5250-0000-080-230
UK RoHS compliance
Out of scope
Wires [pcs]
2 pc
084Z4212
Accessories, sensors, Plug
Temperature sensor overview for wholesaler Temperature sensors, type MBT 5250, MBT 5260 and MBT 5252 Temperature sensor overview for wholesaler Danfoss EU-UK 084R1019.04 Pressure & Temperature Sensors Danfoss MD 084R1022.01 Danfoss MD 087R0017.01 ABS 22-2216869-PDA BV 06839-F0 BV DNV GL TAA000006F Rev. 3 KR DLN 34014-AE002 LR 2101288TA NKK TA22320M MBT 5260 Temperature sensor, 5250, Pg9-11, G1-2 MBT 5250 MBT 5250
