087B1164
Part Number: 087B1164
Product Information
Extended Description

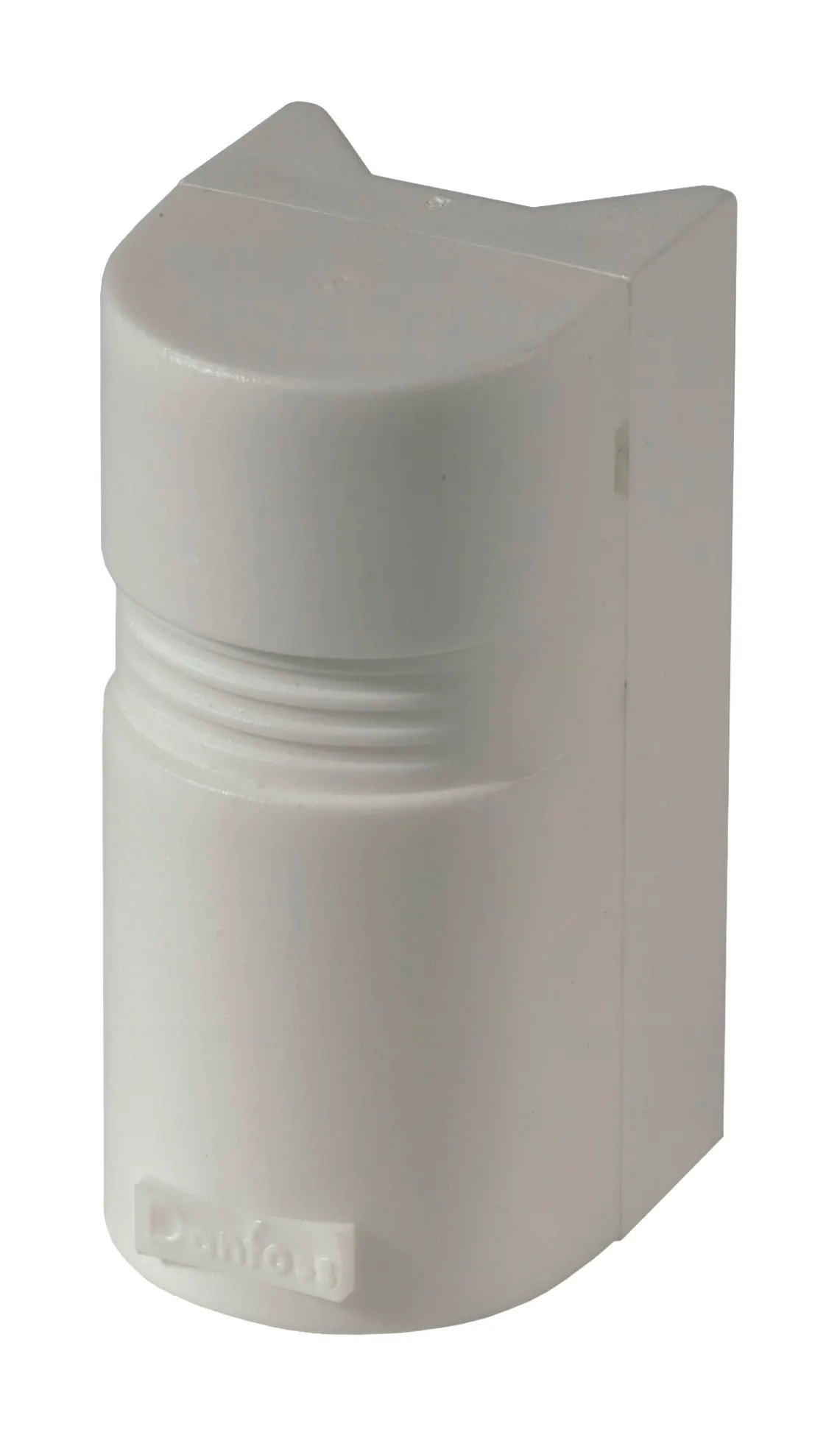

087B1164 Danfoss: ESM-10, Pt 1000 room temperature sensor
Gross weight
0.036 Kilogram
Net weight
0.023 Kilogram
Volume
0.132 Liter
EAN
5702421011331
Body material
ABS
China RoHS compliance
Out of scope
Contain batteries
No
Description
ESM-10, Pt 1000 room temperature sensor
Electrical connections terminals
Terminal block for 2 wires in base part
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP54
Label product
Yes
Media temperature [°C] [Max]
50 °C
Media temperature [°C] [Min]
-30 °C
Mounting version
Wall mounting with screws
Product group
Sensors
REACH Candidate List substances
No
Sensor type
Room
Temperature sensors type
Pt 1000
Time constant
8 min
Type
ESM-10
UK RoHS compliance
Out of scope
041E0110
HEAT CONDUCT. COMPOUND 5 g. OEM
