087B1165
Part Number: 087B1165
Product Information
Extended Description

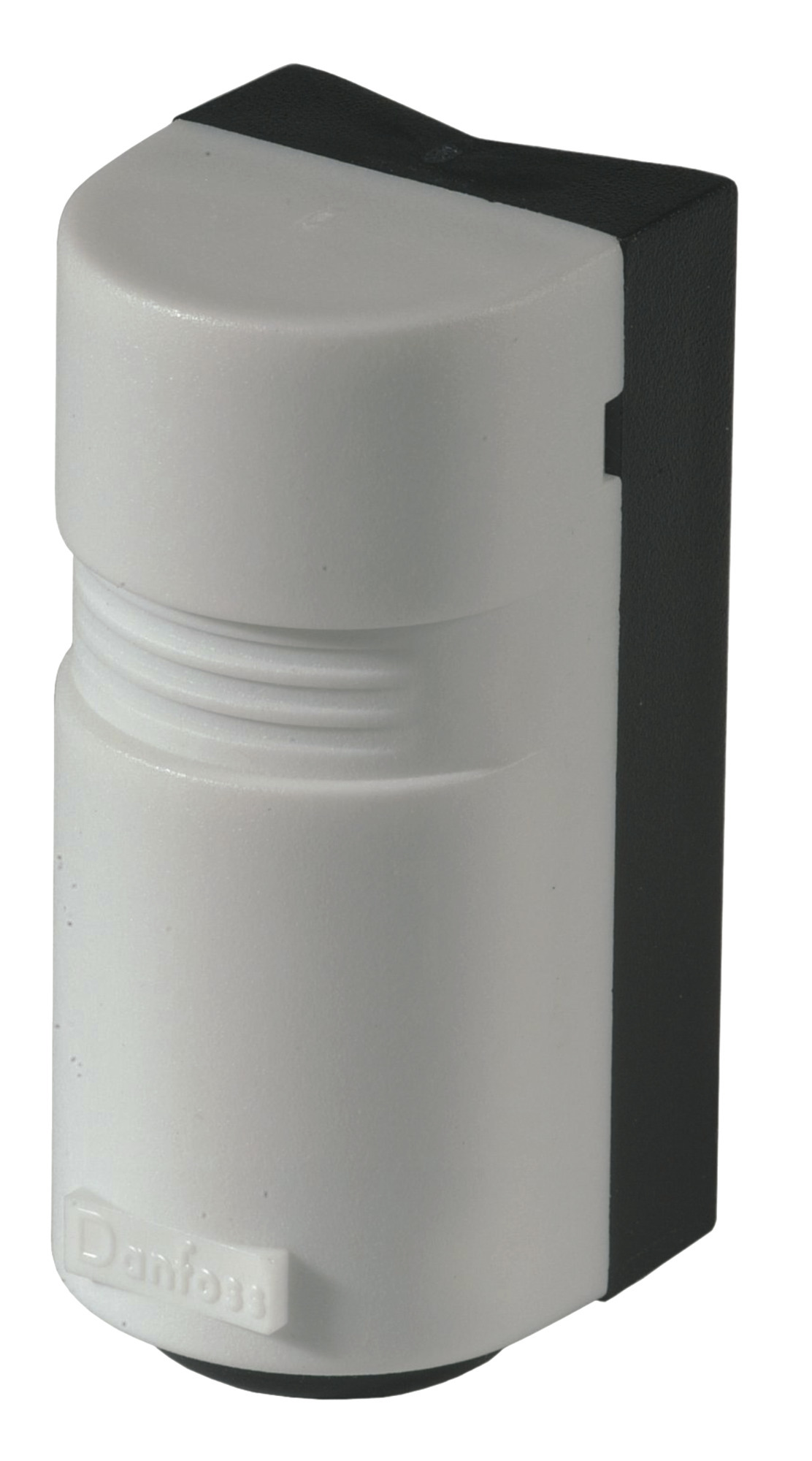

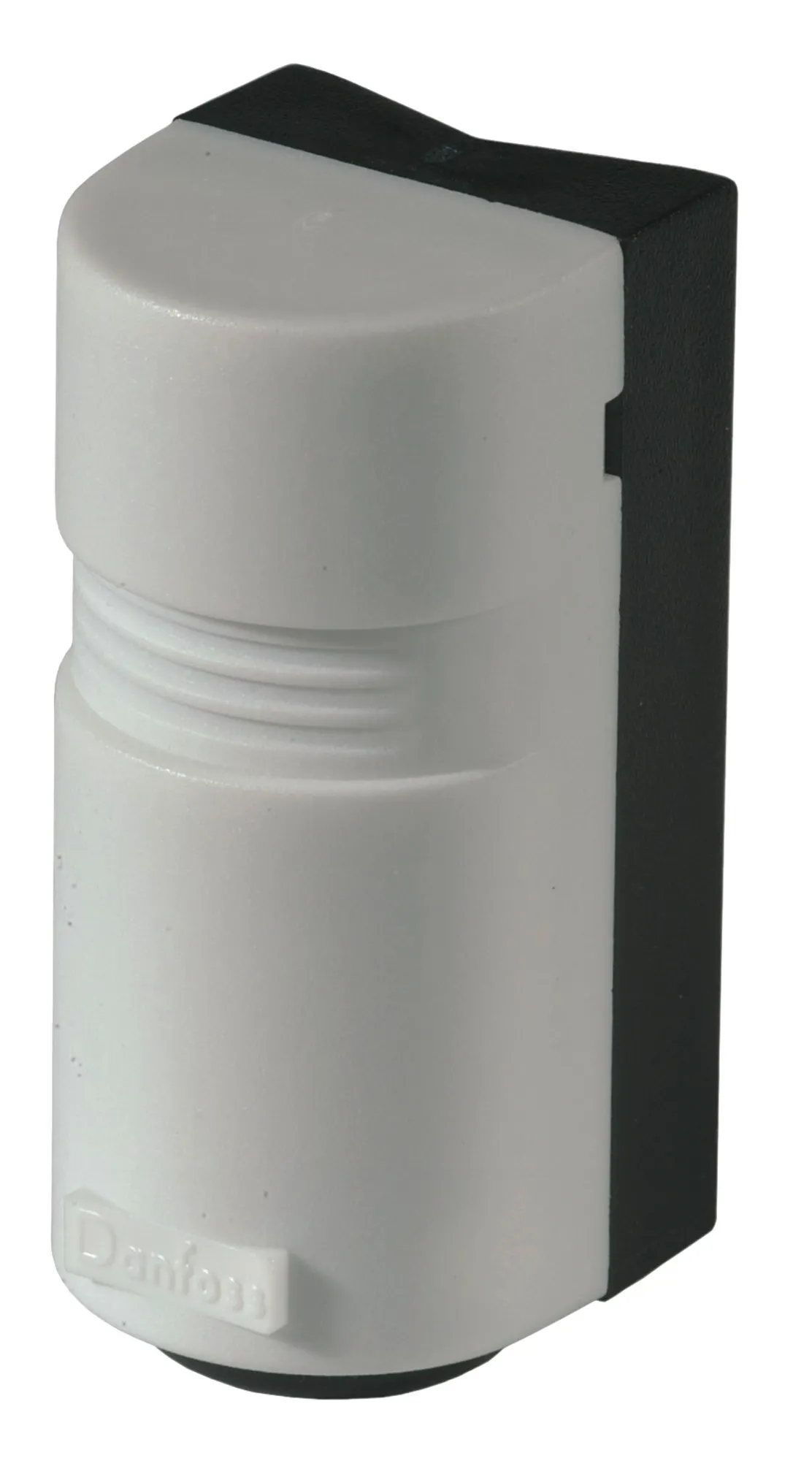

087B1165 Danfoss: ESM-11, Pt 1000 Surface sensor
Gross weight
0.04 Kilogram
Net weight
0.026 Kilogram
Volume
0.13 Liter
EAN
5702421011478
Body material
Polycarbonate
China RoHS compliance
Out of scope
Contain batteries
No
Description
ESM-11, Pt 1000 Surface sensor
Electrical connections terminals
Terminal block for 2 wires in base part
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP32
Label product
Yes
Media temperature [°C] [Max]
100 °C
Media temperature [°C] [Min]
0 °C
Mounting version
Clamp for tube DN 15-65 supplied
Product group
Sensors
REACH Candidate List substances
No
Temperature sensors type
Pt 1000
Time constant
3 s
Type
ESM-11
UK RoHS compliance
Out of scope
041E0110
HEAT CONDUCT. COMPOUND 5 g. OEM
