087B1180
Part Number: 087B1180
Product Information
Extended Description

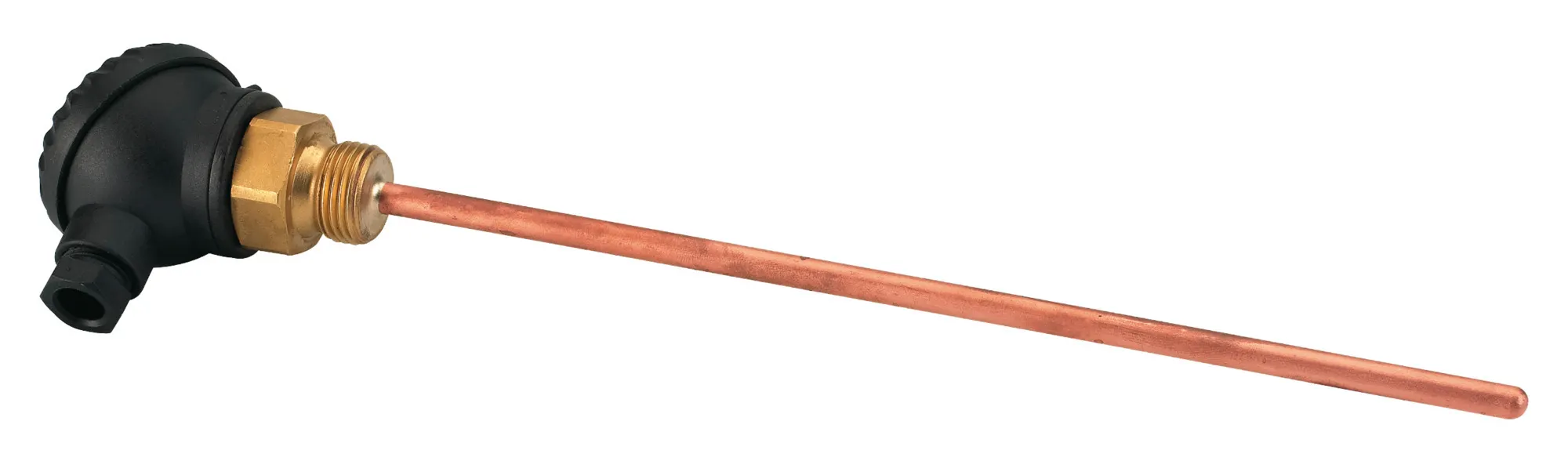

087B1180 Danfoss: ESMU-100, Pt 1000 immersion sensor, 100 mm, copper
Gross weight
0.142 Kilogram
Net weight
0.142 Kilogram
Volume
0.262 Liter
EAN
5702421064481
Body material
Copper
China RoHS compliance
Out of scope
Contain batteries
No
Description
ESMU-100, Pt 1000 immersion sensor, 100 mm, copper
Electrical connections terminals
Terminal plug for two wires in head, PG9 cable entry, supplied with product
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP54
Label product
Yes
Material
COPPER
Media temperature [°C] [Max]
140 °C
Media temperature [°C] [Min]
0 °C
Mounting version
G1/2A and washer (supplied with the product)
Pressure nominal [bar]
25 bar
Product group
Sensors
REACH Candidate List substances
No
Temperature sensor diameter [mm]
6.6 mm
Temperature sensor length [mm]
100 mm
Temperature sensors type
Pt 1000
Time constant
2 s (water), 7 s (air)
Type
ESMU-100
UK RoHS compliance
Out of scope
087B1190
Pockets for ESMU
087B1190
Pockets for ESMU
041E0110
HEAT CONDUCT. COMPOUND 5 g. OEM
