087B1181

Part Number: 087B1181
087B1181
Manufacturer
Danfoss
Part number
087B1181
Category

Product Information

Extended Description

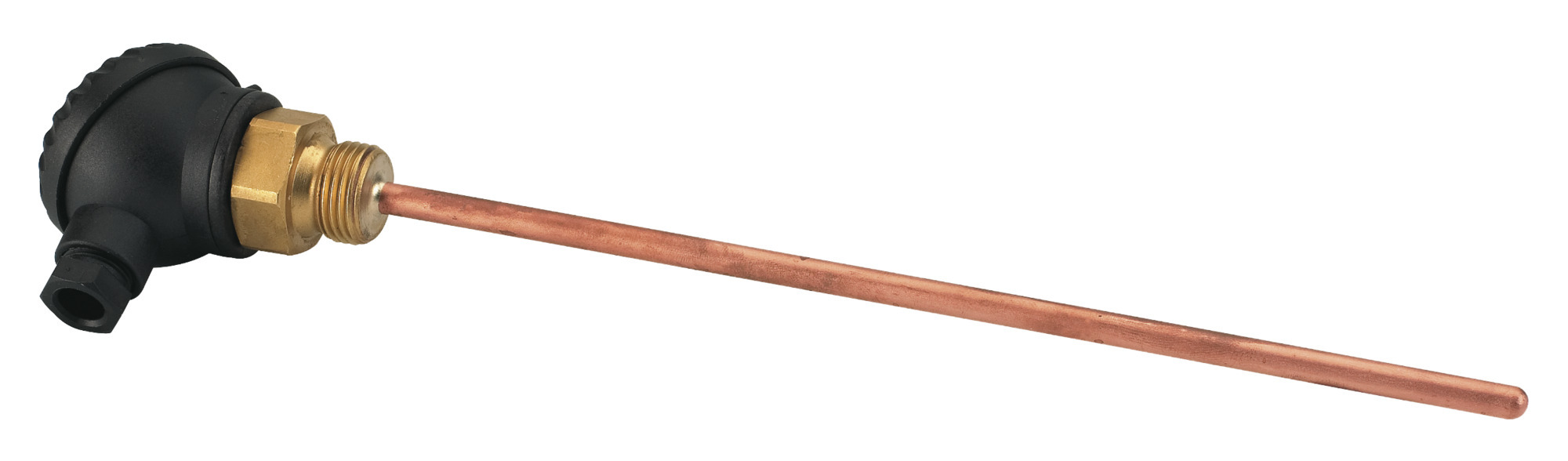

087B1181 Danfoss: ESMU-250, Pt 1000 immersion sensor, 250 mm, copper
Gross weight
0.167 Kilogram
Net weight
0.166 Kilogram
Volume
0.371 Liter
EAN
5702421064504
Body material
Copper
Contain batteries
No
Description
ESMU-250, Pt 1000 immersion sensor, 250 mm, copper
Electrical connections terminals
Terminal plug for two wires in head, PG9 cable entry, supplied with product
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP54
Label product
Yes
Material
COPPER
Media temperature [°C] [Max]
140 °C
Media temperature [°C] [Min]
0 °C
Mounting version
G1/2A and washer (supplied with the product)
Pressure nominal [bar]
25 bar
Product group
Sensors
REACH Candidate List substances
No
Temperature sensor diameter [mm]
6.6 mm
Temperature sensor length [mm]
250 mm
Temperature sensors type
Pt 1000
Time constant
2 s (water), 7 s (air)
Type
ESMU-250
087B1191
Pockets for ESMU
087B1191
Pockets for ESMU
041E0110
HEAT CONDUCT. COMPOUND 5 g. OEM
Temperature sensors (Pt 1000) ESMU 100/250 s UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 UA Controllers 2024-07-25 Pt 1000 immersion sensor ESMU-250 in copper Pt 1000 immersion sensor ESMU-250 in copper Pt 1000 immersion sensor ESMU-250 in copper ESMU-250 Immersion sensor, 250 mm, copper 087B1181
