087B1182

Part Number: 087B1182
087B1182
Manufacturer
Danfoss
Part number
087B1182
Category

Product Information

Extended Description

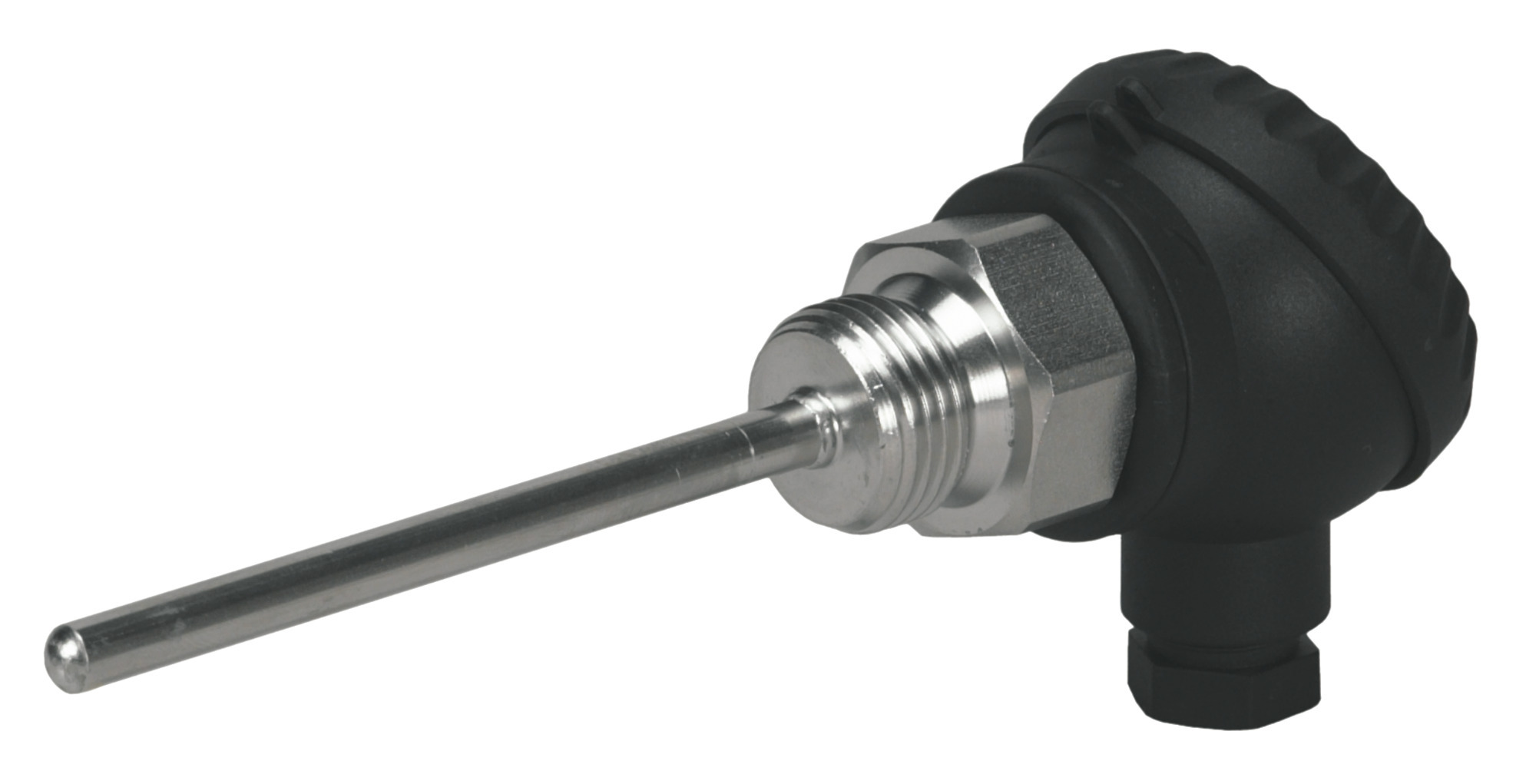

087B1182 Danfoss: ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel
Gross weight
0.132 Kilogram
Net weight
0.132 Kilogram
Volume
0.304 Liter
EAN
5702421064528
Body material
Stainless steel Aisi 316
China RoHS compliance
Out of scope
Contain batteries
No
Description
ESMU-100, Pt 1000 immersion sensor, 100 mm, stainless steel
Electrical connections terminals
Terminal plug for two wires in head, PG9 cable entry, supplied with product
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP54
Label product
Yes
Material
Stainless steel
Media temperature [°C] [Max]
140 °C
Media temperature [°C] [Min]
0 °C
Mounting version
G1/2A and washer (supplied with the product)
Pressure nominal [bar]
25 bar
Product group
Sensors
REACH Candidate List substances
No
Temperature sensor diameter [mm]
6 mm
Temperature sensor length [mm]
100 mm
Temperature sensors type
Pt 1000
Time constant
2 s (water), 7 s (air)
Type
ESMU-100
UK RoHS compliance
Out of scope
041E0110
HEAT CONDUCT. COMPOUND 5 g. OEM
Temperature sensors (Pt 1000) ESMU 100/250 s Danfoss EU VJAOA502.01 Danfoss EU VJKTL602.01 Danfoss UK VJAOA502UK.01 Danfoss UK VJKTL602UK.01 Pt 1000 immersion sensor ESMU-100 Pt 1000 immersion sensor ESMU-100 Pt 1000 immersion sensor ESMU-100 Pt 1000 immersion sensor ESMU-100 Pt 1000 immersion sensor ESMU-100 Pt 1000 immersion sensor ESMU-100 ESMU-100 Immersion sensor, 100 mm, stainless steel 087B1182
