087B1184
Part Number: 087B1184
Product Information
Extended Description

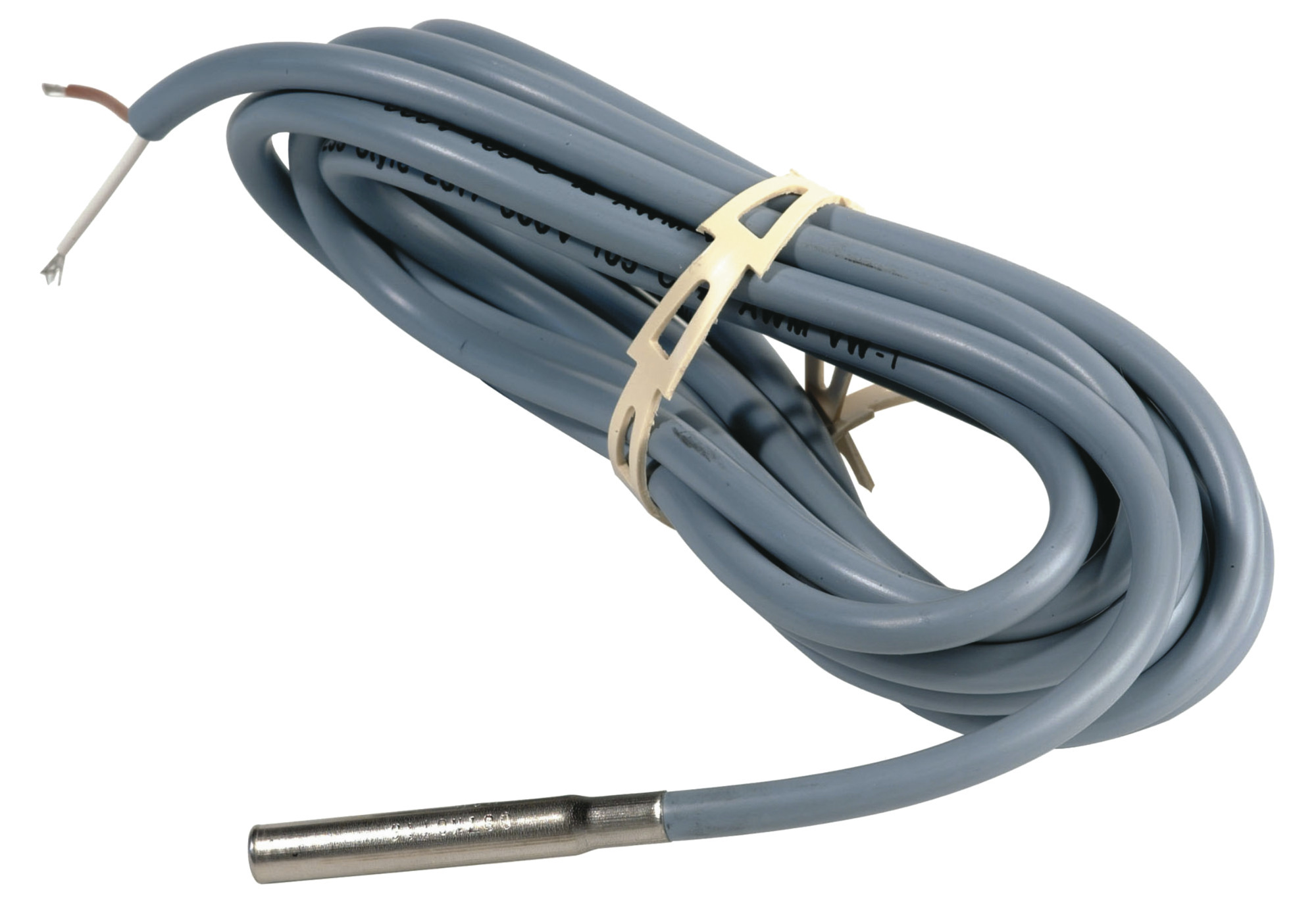

087B1184 Danfoss: ESMB-12, Pt 1000 Universal sensor
Gross weight
0.086 Kilogram
Net weight
0.08 Kilogram
Volume
0.226 Liter
EAN
5702421064566
Body material
Stainless steel
China RoHS compliance
Out of scope
Contain batteries
No
Description
ESMB-12, Pt 1000 Universal sensor
Electrical connections terminals
2-wire cable (2 x 0,2 mm2)
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Grade of enclosure
IP54
Label product
Yes
Media temperature [°C] [Max]
100 °C
Media temperature [°C] [Min]
0 °C
Mounting version
For pipe or flat surface or in pocket
Product group
Sensors
REACH Candidate List substances
No
Temperature sensor diameter [mm]
5.7 mm
Temperature sensor length [mm]
45 mm
Temperature sensors type
Pt 1000
Time constant
20 s
Type
ESMB-12
UK RoHS compliance
Out of scope
087B1192
Pockets for ESMB 12
087B1193
Pockets for ESMB 12, 250 mm
087B1192
Pockets for ESMB 12
087B1193
Pockets for ESMB 12, 250 mm
041E0110
HEAT CONDUCT. COMPOUND 5 g. OEM
