087B2506
Part Number: 087B2506
Product Information
Extended Description

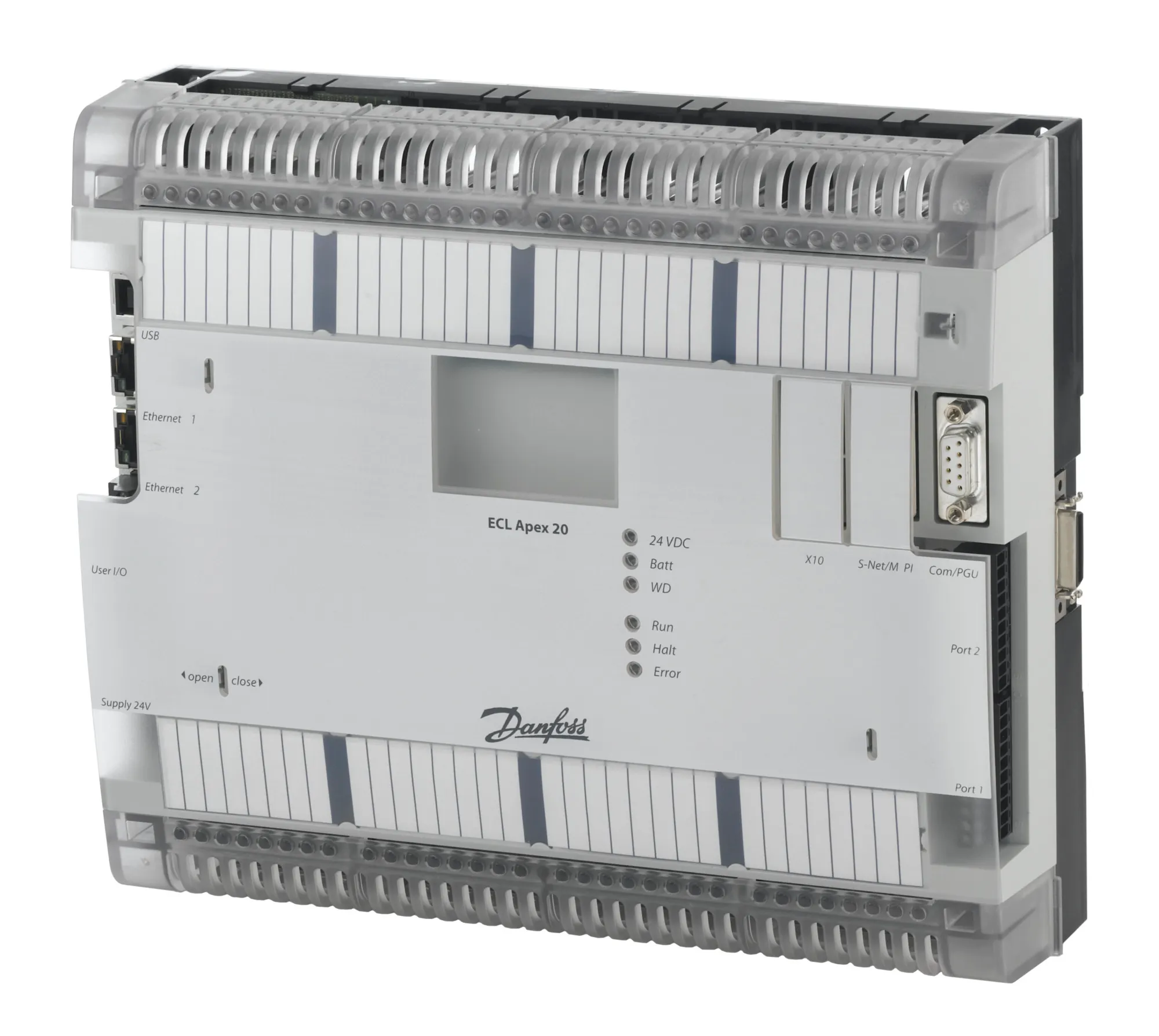

087B2506 Danfoss: ECL Apex 20 ver 2
Gross weight
1.606 Kilogram
Net weight
1.606 Kilogram
Volume
6.912 Liter
EAN
5702424232870
Ambient humidity [% RH] [Max]
65 %
Ambient temperature [°C] [max]
55 °C
Ambient temperature [°C] [min]
0 °C
Contain batteries
No
Description
ECL Apex 20 ver 2
EU RoHS compliance
Yes with exemptions
Function
Programmable Controller
Grade of enclosure
IP20
Label product
Yes
Number of 0 - 10 Vdc motor control outputs
3
Number of DHW circuits
1
Number of heating circuits
3
Number of relay outputs
4
Number of Sensor inputs
6 pc
Power consumption [W]
6 W
Product group
Electronic controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
a3b05fa3-598d-406a-a4e1-1b84e9c54482
SCIP dossier product name
087B2506
Sensor cable length [m]
200 m
Sensor cable length [mm]
200 mm
Storage temperature [°C] [Max]
85 °C
Storage temperature [°C] [Min]
-20 °C
Supply voltage [V] DC
24 V
Supply voltage frequency [Hz]
50 Hz
Temperature sensors type
Pt 1000
Time switch type
No time switch
Type
ECL Apex 20
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1164
ESM-10, Sensor type: Room, Pt 1000
087B1165
ESM-11, Pt 1000
087B1180
ESMU-100, Pt 1000, COPPER||COPPER
087B1181
ESMU-250, Pt 1000, COPPER||COPPER
087B1182
ESMU-100, Pt 1000, Stainless steel
087B1183
ESMU-250, Pt 1000, Stainless steel
087B1184
ESMB-12, Pt 1000
087N0011
ESMC, Sensors
