087H3020
Part Number: 087H3020
Product Information
Extended Description

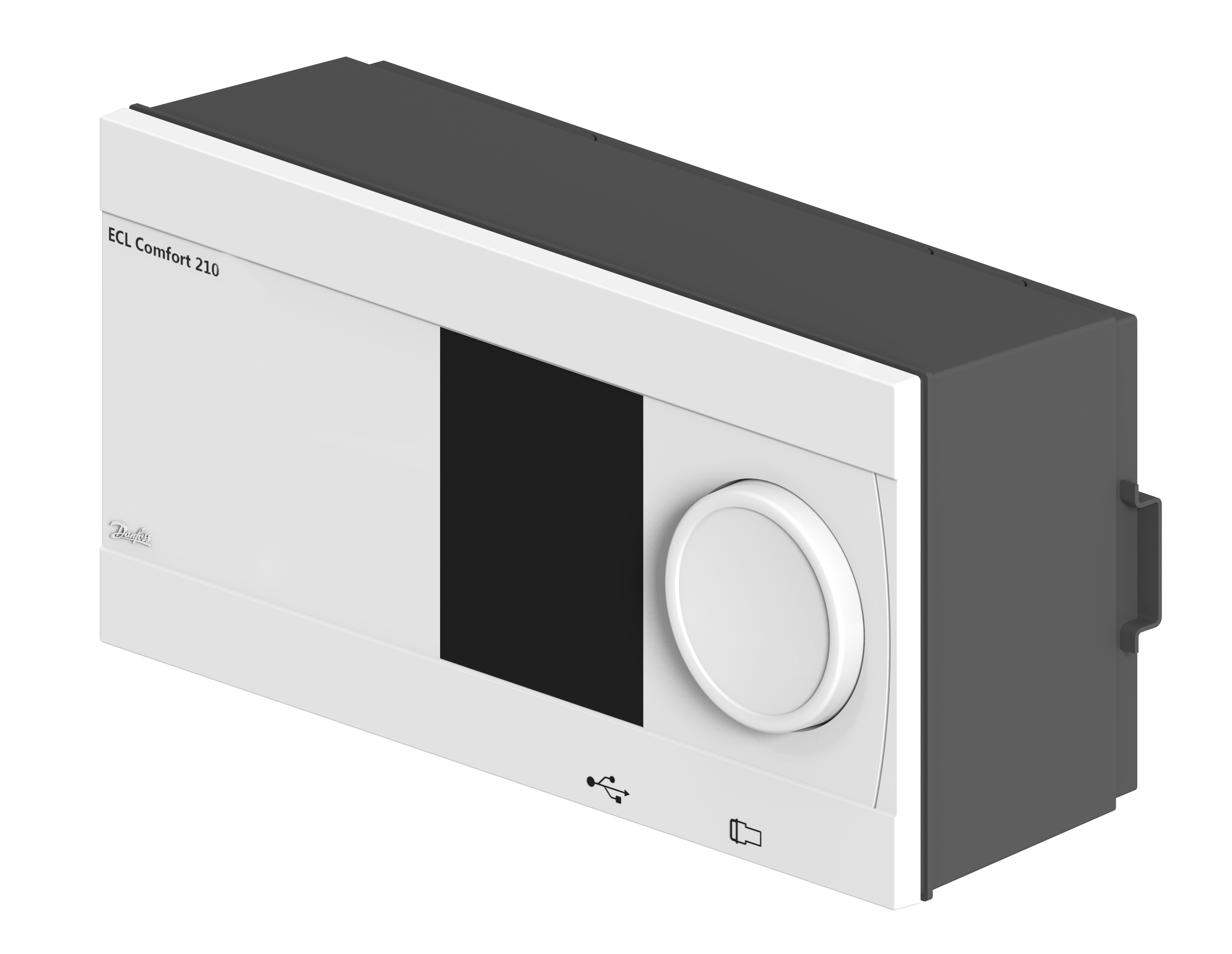

087H3020 Danfoss: ECL COMFORT 210/230 V
Gross weight
0.664 Kilogram
Net weight
0.439 Kilogram
Volume
4.894 Liter
EAN
5710104013206
Actuator output load [VA]
15 VA
Ambient humidity [% RH] [Max]
65 %
Ambient temperature [°C] [max]
55 °C
Ambient temperature [°C] [min]
0 °C
Application source
By ECL application key
Approval
CE
Approval standard
EMC-Directive: 2004/108/EC,Immunity: EN 61000-6-1:2007,Emission: EN 61000-6-3:2007,LVD directive 2006/95/EC,EN 60730
CE evaluated
Yes
China RoHS compliance
Out of scope
Communications
ECL 485 Bus (non-galvanically isolated),Modbus (non-galvanically isolated)
Contain batteries
No
Description
ECL COMFORT 210/230 V
DHW functions
Anti-bacteria program,Auto-tunning,Return temperature influence
Digital inputs type
12 V pull-up possible
Display type
LCD dot matrix
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
General functions
Alarm functions,Circulation pump exercise,Control valve exercise,External override facility,Frost protection,Holiday program,Master - Slave network,Motor protection,Remote control connection,Visible temperature logging
Grade of enclosure
IP41
Heat curve setting for heating circuit
6 points,Slope
In scope of WEEE
Yes
Number of 3-point motor control outputs
2
Number of comfort periods per day
3
Number of DHW circuits
1
Number of DHW storage tank circuits
1
Number of digital inputs
2
Number of heating circuits
2
Number of pumps
4
Number of relay outputs
4
Number of Sensor inputs
8 pc
Power consumption [W]
5 W
Product group
Electronic controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Lead monoxide (PbO, CAS no. 1317-36-8),Diboron trioxide (B2O3, CAS no. 1303-86-2),Lead titanium trioxide (CAS no. 12060-00-3),6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Relay output inductive load [A]
2 A
Relay output ohmic load [A]
4 A
Relay output voltage [V] AC
230 V
SCIP dossier no.
ad51fccb-924b-4843-a9b7-7e3da2fef171
SCIP dossier product name
ECL Comfort 310 and 210
Sensor cable length [m]
200 m
Sensor cable length [mm]
200 mm
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-40 °C
Supply voltage [V] AC
230 V
Supply voltage [V] AC [max]
244 V
Supply voltage [V] AC [min]
207 V
Supply voltage frequency [Hz]
50 Hz
Temperature sensors type
Pt 1000, configurable input
Time switch power backup [h]
72 h
Time switch type
Week
Type
ECL Comfort 210
UK RoHS compliance
Out of scope
User input type
Display,Push-turn dial
087H3220
ECL Base part
087H3230
ECL Base part
087H3800
ECL Application keys, A266
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1156
ECA 99, Supply voltage [V] AC: 24, Output voltage [V] AC: 24
087B1164
ESM-10, Sensor type: Room, Pt 1000
087B1165
ESM-11, Pt 1000
087B1180
ESMU-100, Pt 1000, COPPER||COPPER
087B1181
ESMU-250, Pt 1000, COPPER||COPPER
087B1182
ESMU-100, Pt 1000, Stainless steel
