087H3202
Part Number: 087H3202
Product Information
Extended Description

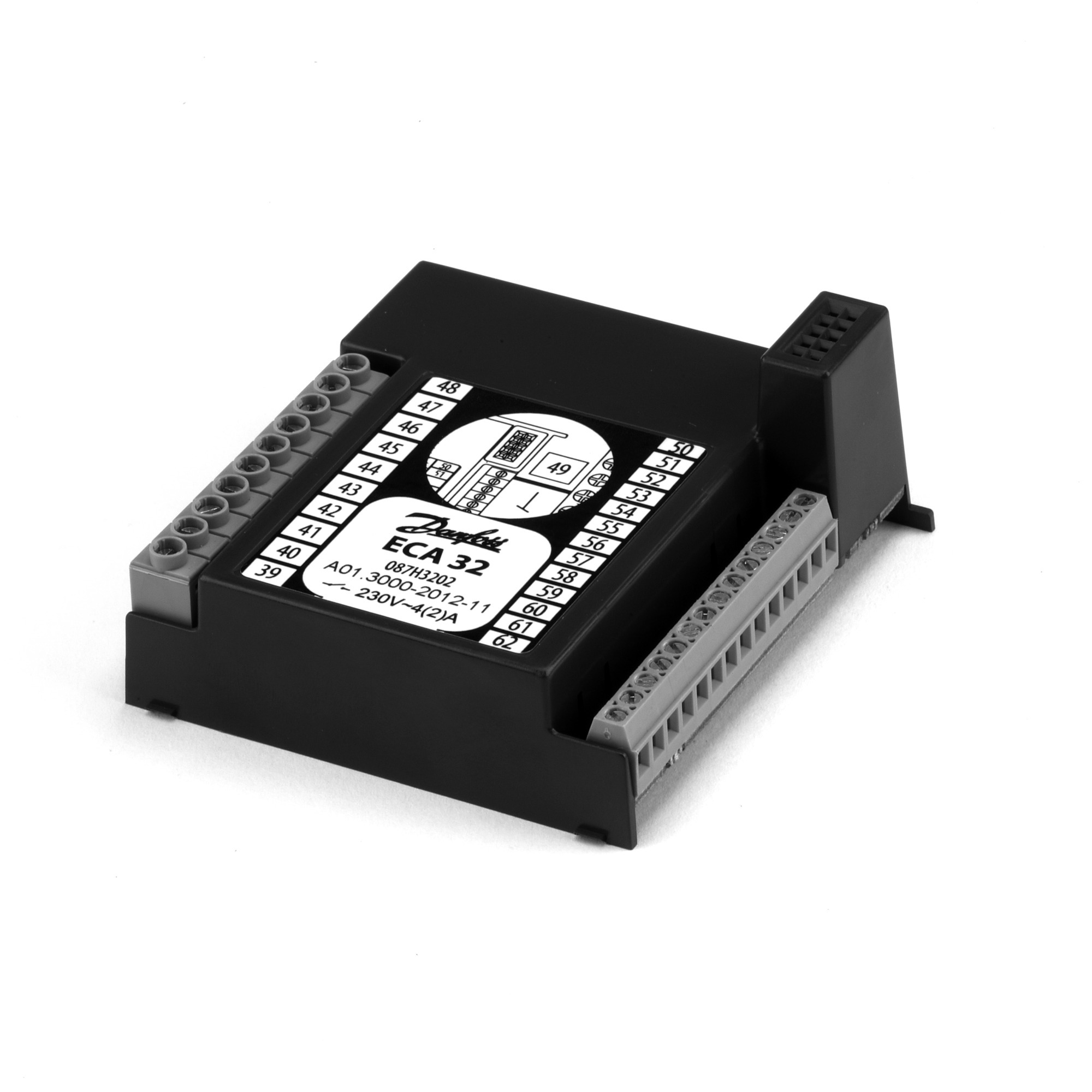

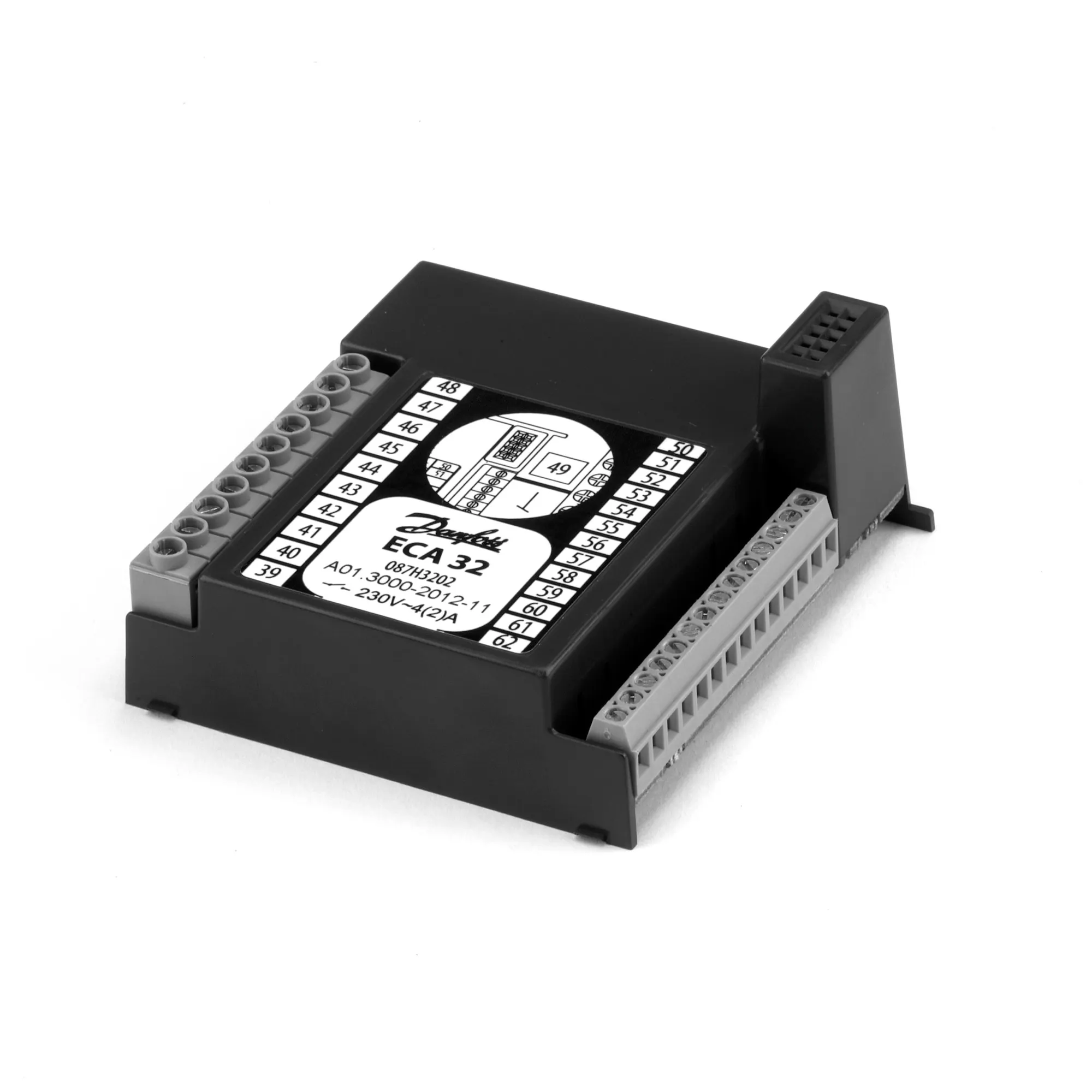

087H3202 Danfoss: ECA 32
Gross weight
0.119 Kilogram
Net weight
0.096 Kilogram
Volume
0.486 Liter
EAN
5710104028651
Ambient temperature [°C] [max]
55 °C
Ambient temperature [°C] [min]
0 °C
China RoHS compliance
Out of scope
Contain batteries
No
Description
ECA 32
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes with exemptions
In scope of WEEE
Yes
Mounting version
In base part
Product group
Acc - Electronic contr
Pulse frequency [Hz] [Max]
100 Hz
Pulse frequency [Hz] [Min]
5 Hz
REACH Candidate List substances
Lead (CAS no. 7439-92-1),Lead monoxide (PbO, CAS no. 1317-36-8)
Relay output inductive load [A]
2 A
Relay output ohmic load [A]
4 A
SCIP dossier no.
82b75cb6-b771-4e89-9eca-774760d490ce
SCIP dossier product name
ECA 32 087H3202
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-40 °C
Transport temperature [°C] [Max]
70 °C
Transport temperature [°C] [Min]
-40 °C
Type
ECA 32
UK RoHS compliance
Out of scope
