087N0011

Part Number: 087N0011
087N0011
Manufacturer
Danfoss
Part number
087N0011
Category

Product Information

Extended Description

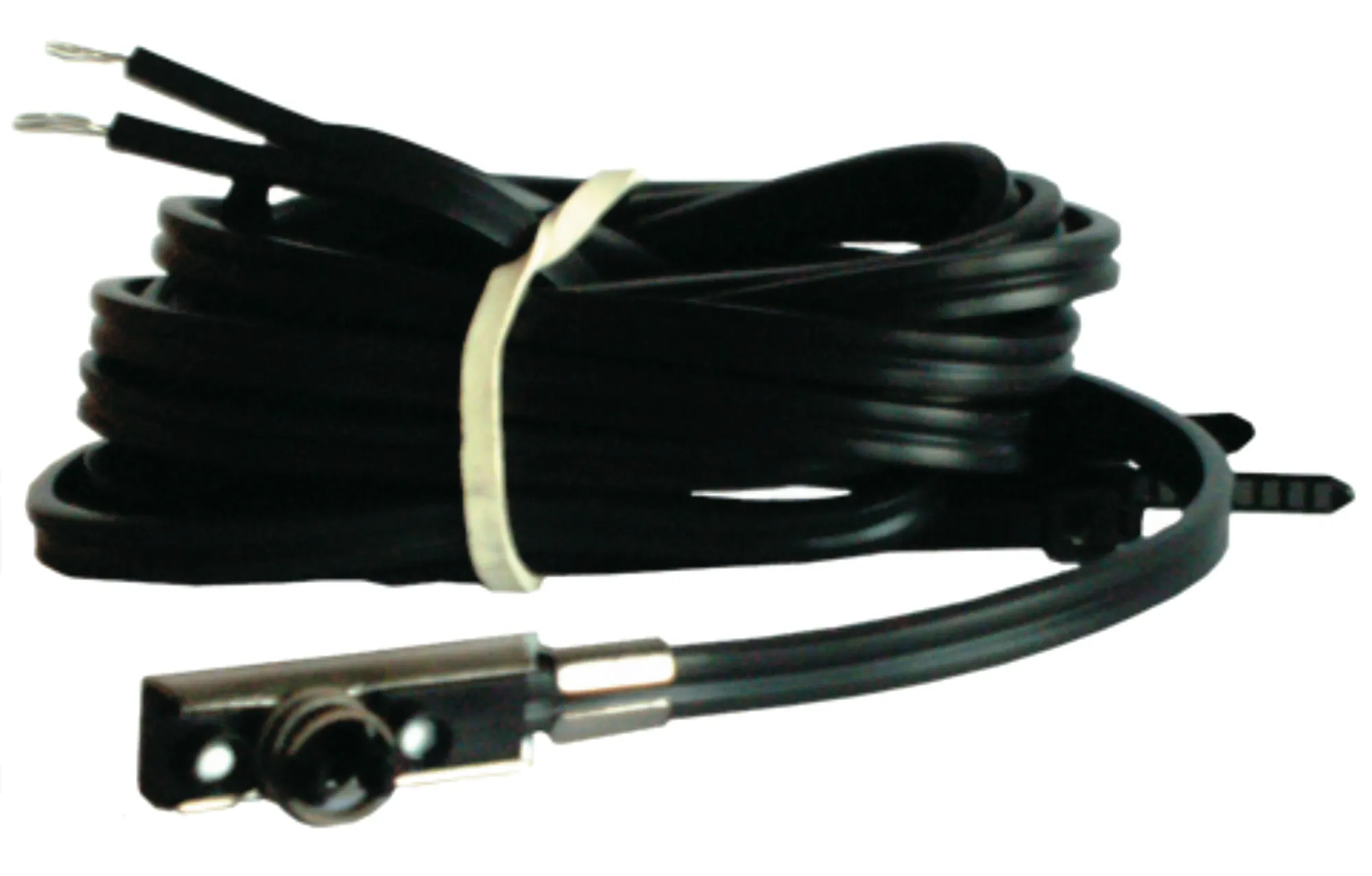

087N0011 Danfoss: ESMC SENSOR
Gross weight
0.051 Kilogram
Net weight
0.042 Kilogram
Volume
0.12 Liter
EAN
5702420016917
Ambient temperature max. [°C]
100 °C
Ambient temperature max. [°F]
212 °F
Body material
Nickel coated Copper
Cable length [in]
78.74 in
Cable length [m]
2 m
Cable tempr. range [°C] [max]
100 °C
Cable tempr. range [°C] [min]
-40 °C
Cable type
PVC
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Electrical connection
Cable
Electrical connection size
2 wire
Electrical connections terminals
2-wire cable (2 x 0,2 mm2)
Grade of enclosure
IP54
Measuring range [°C] [max]
100 °C
Measuring range [°C] [min]
-50 °C
Measuring range [°F] [max]
212 °F
Measuring range [°F] [min]
-58 °F
Media temperature [°C] [Max]
100 °C
Media temperature [°C] [Min]
0 °C
Mounting version
Clamp for tube DN 15-65 supplied
Packing format
Multi pack
Product group
Sensors
Product Name Description
Temperature sensor
Quantity per packing format
72 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor elem. resistance [Ohm]
1000
Sensor element [pc]
1 pc
Sensor element standard
EN 60751
Sensor element tolerance
Class B
Sensor element type
Pt
Temperature sensors type
Pt 1000
Time constant
10 s
Type
ESMC
UK RoHS compliance
Out of scope
Wires [pcs]
2 pc
041E0110
HEAT CONDUCT. COMPOUND 5 g. OEM
