087N0015
Part Number: 087N0015
Product Information
Extended Description

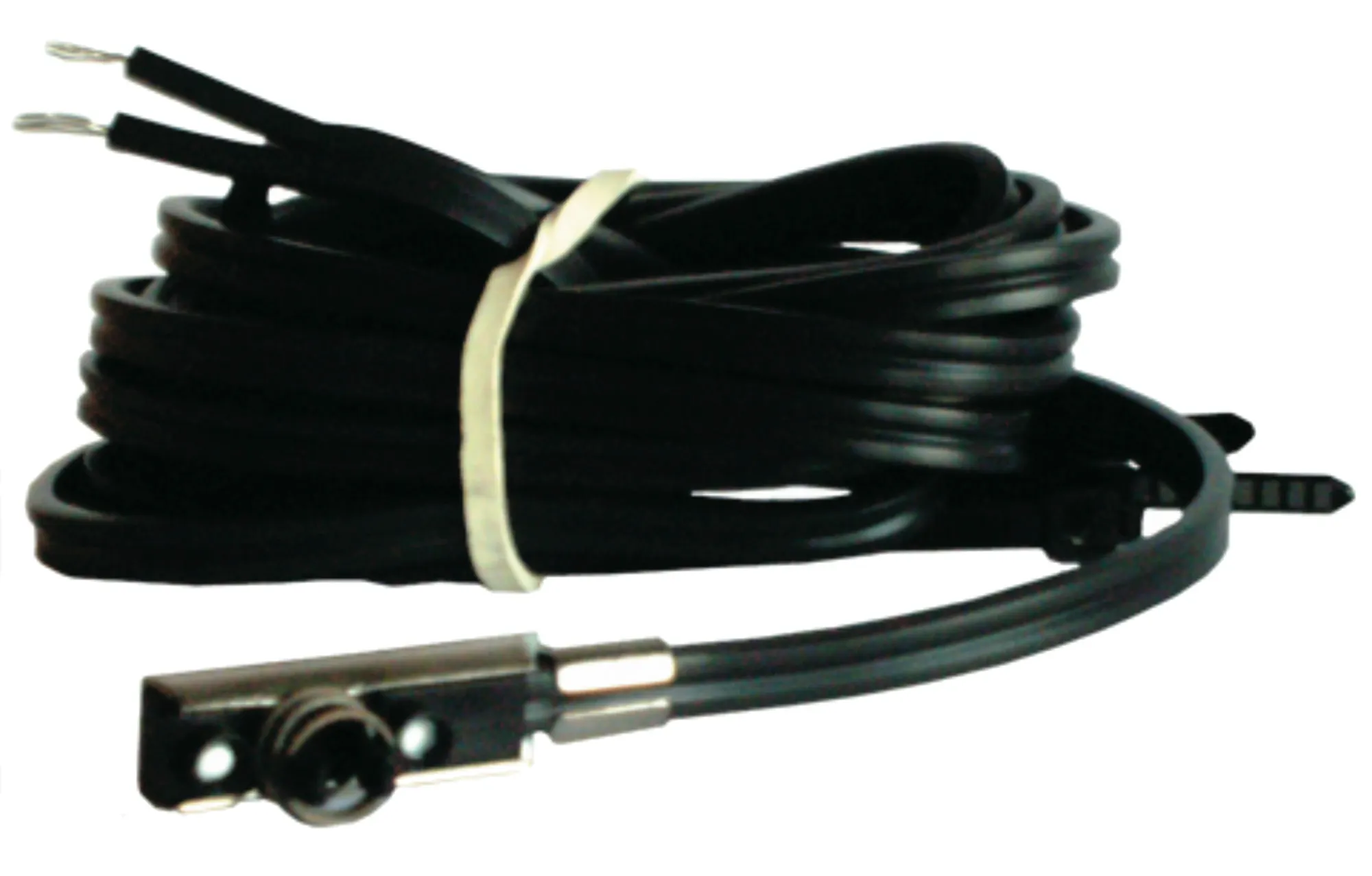

087N0015 Danfoss: Sensor ESMC, I-p
Gross weight
0.053 Kilogram
Net weight
0.042 Kilogram
Volume
0.468 Liter
EAN
5702421011461
Ambient temperature max. [°C]
100 °C
Ambient temperature max. [°F]
212 °F
Cable length [in]
78.74 in
Cable length [m]
2 m
Cable tempr. range [°C] [max]
100 °C
Cable tempr. range [°C] [min]
-40 °C
Cable type
PVC
CE evaluated
Yes
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical connection
Cable
Electrical connection size
2 wire
In scope of WEEE
Yes
Measuring range [°C] [max]
100 °C
Measuring range [°C] [min]
-50 °C
Measuring range [°F] [max]
212 °F
Measuring range [°F] [min]
-58 °F
Packing format
Industrial pack
Product group
Sensors
Product Name Description
Temperature sensor
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Sensor elem. resistance [Ohm]
1000
Sensor element [pc]
1 pc
Sensor element standard
EN 60751
Sensor element tolerance
Class B
Sensor element type
Pt
Type
ESMC
Wires [pcs]
2 pc
