087N1050
Part Number: 087N1050
Product Information
Extended Description

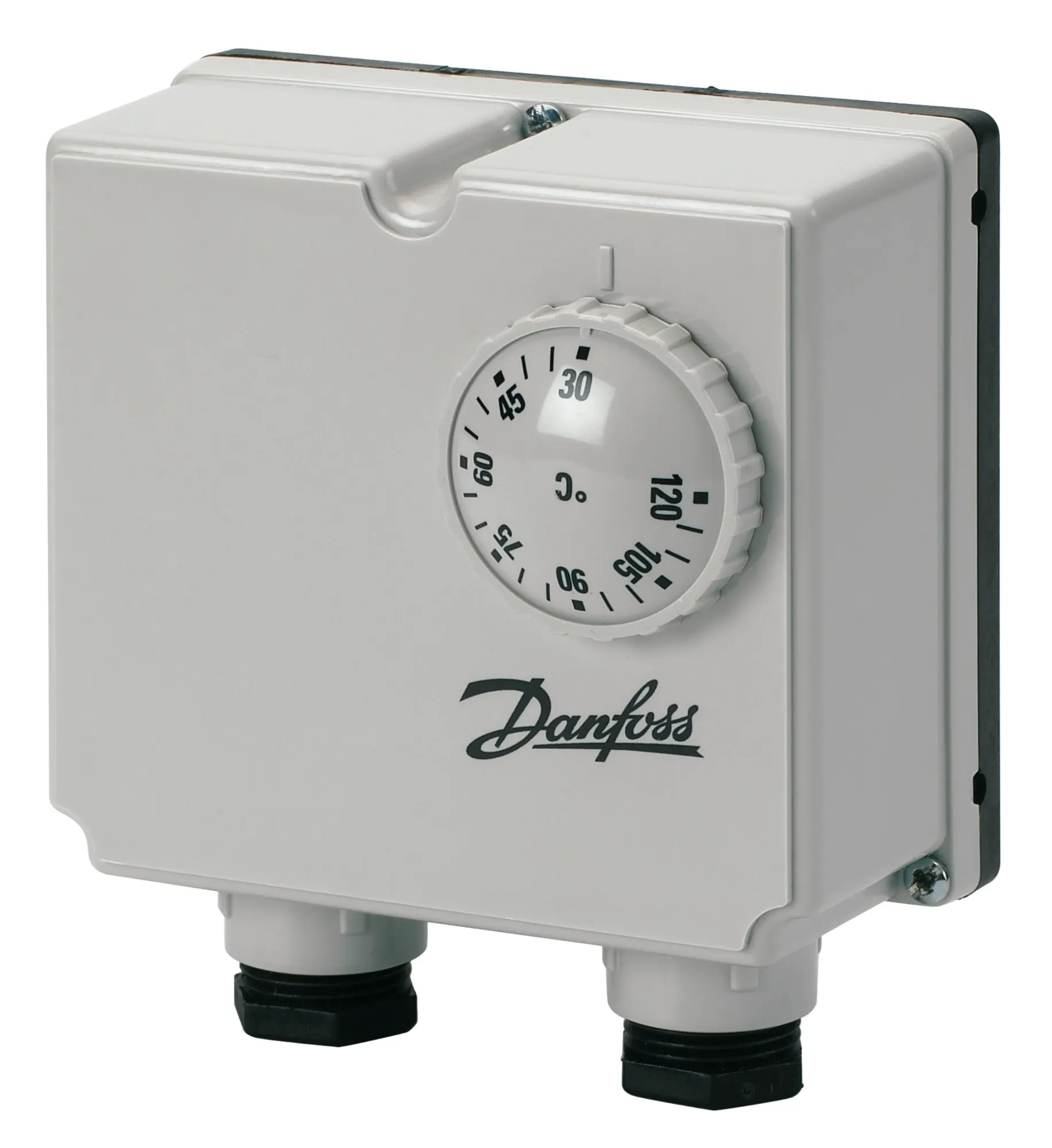

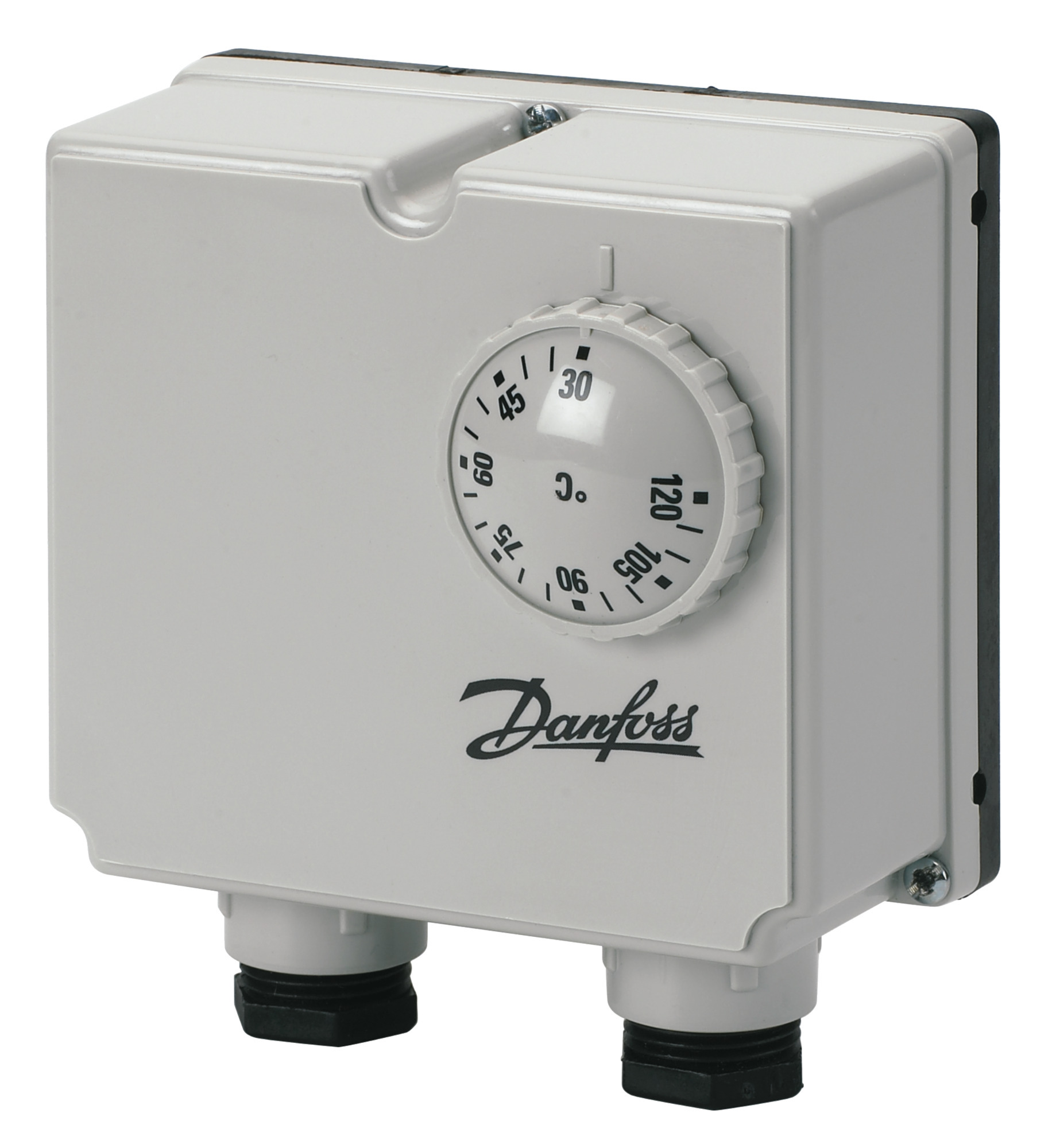

087N1050 Danfoss: Safety thermostat ST-1
Gross weight
0.46 Kilogram
Net weight
0.436 Kilogram
Volume
2.025 Liter
EAN
5702421715000
Ambient temperature [°C] [max]
80 °C
Cable entry
Pg 20
Contact inductive load [A]
2.5 A
Contact ohmic load [A]
10 A
Contact three-phase load [A]
7 A
Contacts
Ag 1000/1000
Contain batteries
No
Cut-out accuracy [K] [Max]
6 K
Cut-out accuracy [K] [Min]
0 K
Description
Safety thermostat ST-1
Differential STW [K]
12 (+/- 3)
Differential TR [K]
4 (+/- 1)
EU RoHS compliance
Yes with exemptions
Grade of enclosure
IP40
Label product
Yes
Mounting orientation
No restriction
Number of temperature sensors
2
Permissible media
District heating/cooling circulation water
Pressure nominal [bar]
10 bar
Product group
Safety Thermostats
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Reset temperature difference STW
Auto
Reset temperature difference TR
Auto
Safety monitor STW setting [°C] [Max]
120 °C
Safety monitor STW setting [°C] [Min]
100 °C
SCIP dossier no.
b414887a-bb9d-4dce-b6ec-81742d8d7673
SCIP dossier product name
Safety thermostats ST-1 and ST-2
Sensor connection
R ½
Sensor pocket material
Brass Ms 58/copper
Sensor temperature [°C] [Max]
130 °C
Storage temperature [°C] [Max]
80 °C
Storage temperature [°C] [Min]
-15 °C
Temperature sensor diameter [mm]
9 mm
Temperature sensor length [mm]
100 mm
Thermostat TR setting [°C] [Max]
120 °C
Thermostat TR setting [°C] [Min]
30 °C
Transport temperature [°C] [Max]
80 °C
Transport temperature [°C] [Min]
-15 °C
Type
ST-1
087N1201
SENSOR POCKET ST1/ST2
